Aditi Agrawal posted an Question
May 13, 2020 • 15:57 pm 30 points
  • IIT JAM
  • Physics (PH)

Please explain the concept of solving both type of questions

Add 1A8and 67B,. Calculate the value (in base 16) 16

3 Answer(s) Answer Now
  • 0 Likes
  • 4 Comments
  • 0 Shares
  • comment-profile-img>
    Abhishek singh Best Answer

    solution for first Question.

    eduncle-logo-app

    I don't know the concept of such type of questions so please explain the concept from beginning

    eduncle-logo-app

    comparator compares two value. it's is given in the question itself. now you have two inputs, A and B. if A is greater than B, then comparator output is 1, otherwise 0. A and B are two bit inputs(given in question). So I have written all possible combinations of A and B such that A is greater than B. We have 6 such combinations as shown in the solution.

    eduncle-logo-app

    ok thank you

    eduncle-logo-app

    please provide solution for 2 question

    eduncle-logo-app

    please explain 2bit comparator logic circuits and how to make truth table for them

    eduncle-logo-app

    okay, I will post solution for question 2 as well.

  • comment-profile-img>
    Dhairya sharma

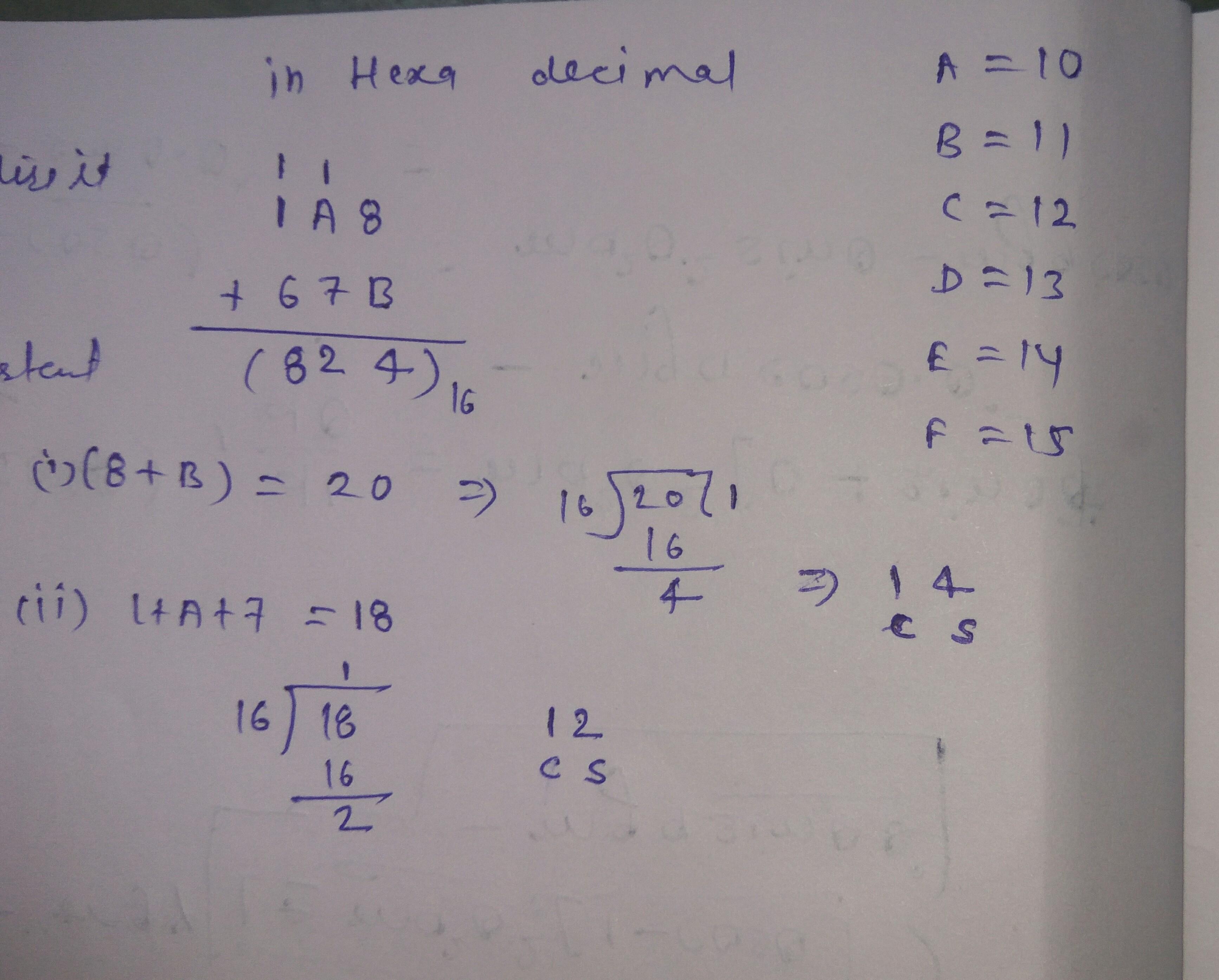

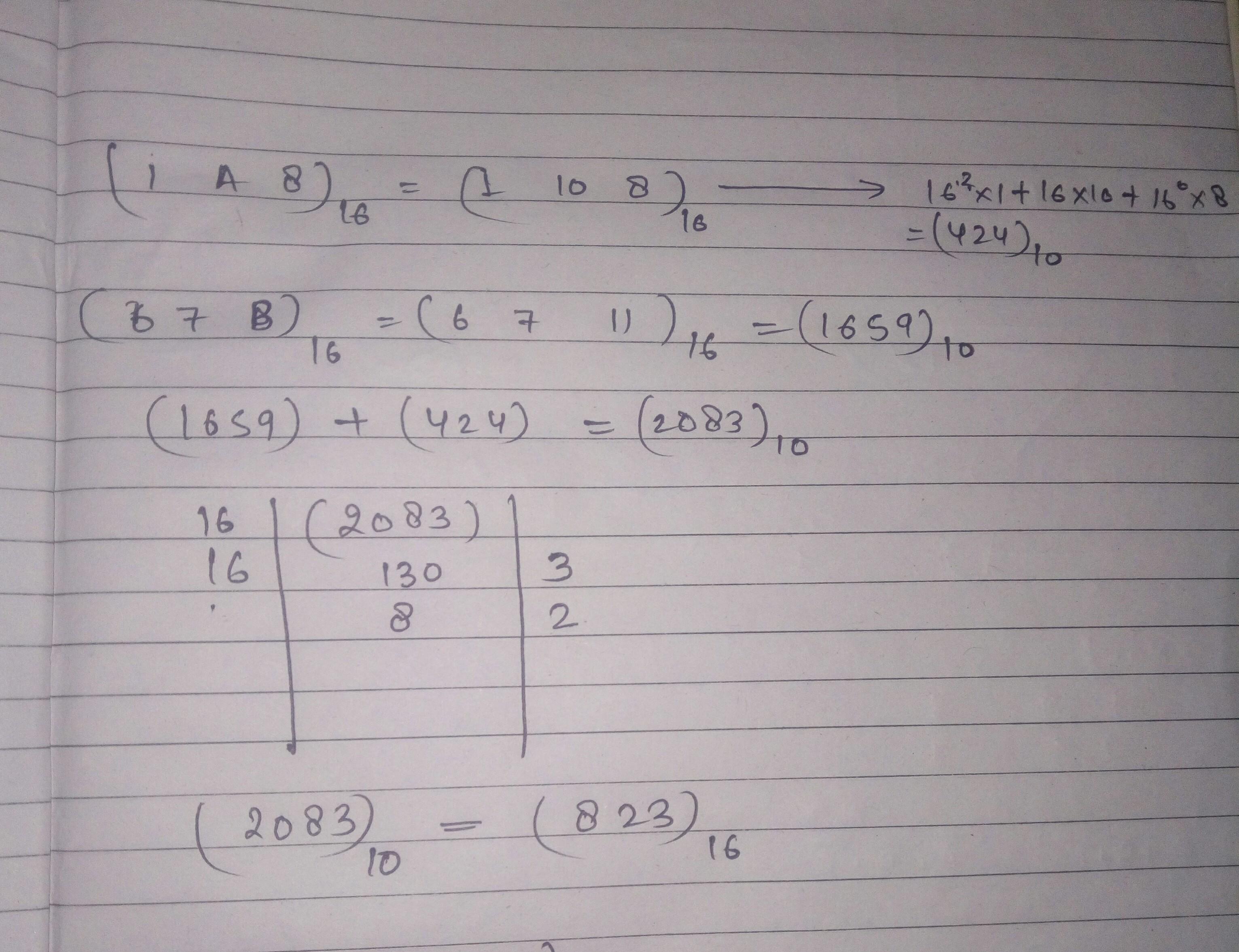

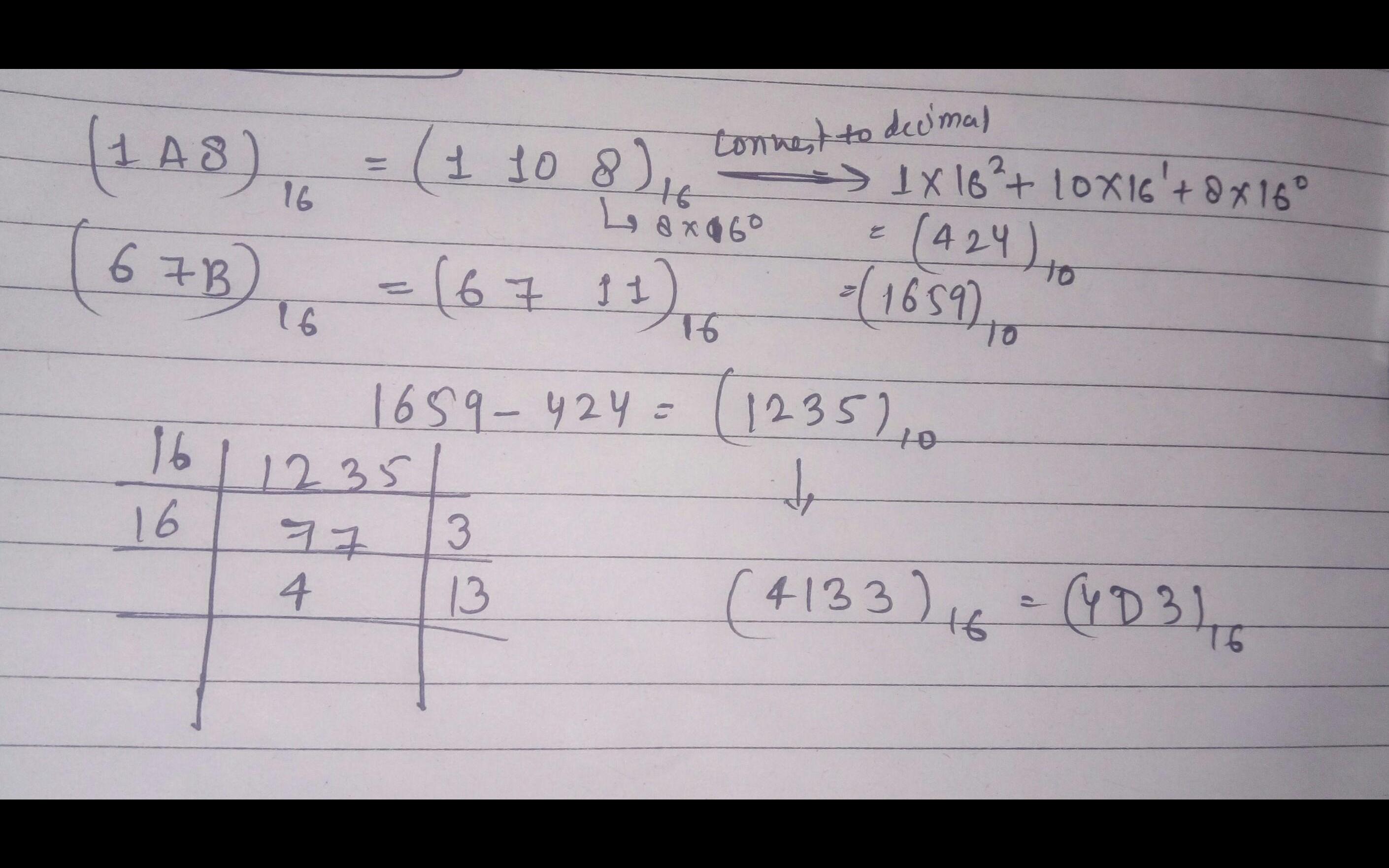

    see attached. i'm also providing link https://www.youtube.com/redirect?q=http%3A%2F%2Fbit.ly%2F2lOejMG&event=video_description&v=TR49piVm2V8&redir_token=gvFIbtm92FCcWXSlZgVXrnNBq2R8MTU4OTQzMzE4MUAxNTg5MzQ2Nzgx
