Aditi Agrawal posted an Question
June 20, 2020 • 22:10 pm 30 points
  • IIT JAM
  • Physics (PH)

Please explain the limits of phi and theta and phi cap and theta cap and the plane of phi and theta

2) Sphoricol pelaz leordiunte Bypery o Ar t A +A lese pa lonteimg h.0 Scanned with CamScan Oate A6xc)= AX6)-C AxGxC= RA:O-(A) 0 BAx8 xc= e CX(AxA) -ALL:tB(A:) OAxa)-(xn)=(A:<]la-D)-Atleg Axl6x(Ccxn)=BAkxn YE -(A:R}Lcxo) Ax(Bxc)+ x (CXA) tCX( AKB) = 0 4 1-) the di'uhio Lar 1o te pla

2 Answer(s) Answer Now
  • 0 Likes
  • 8 Comments
  • 0 Shares
  • comment-profile-img>
    Chandra prakash

    https://www.youtube.com/watch?v=enNzrFDDkEk

    eduncle-logo-app

    see this attached video dear... I hope it will clear ur concept regarding this concept...

  • comment-profile-img>
    Dhairya sharma

    see attached

    eduncle-logo-app

    it will help u.....

    eduncle-logo-app

    i want to ask that as i cap denotes direction then theta cap denotes which direction

    eduncle-logo-app

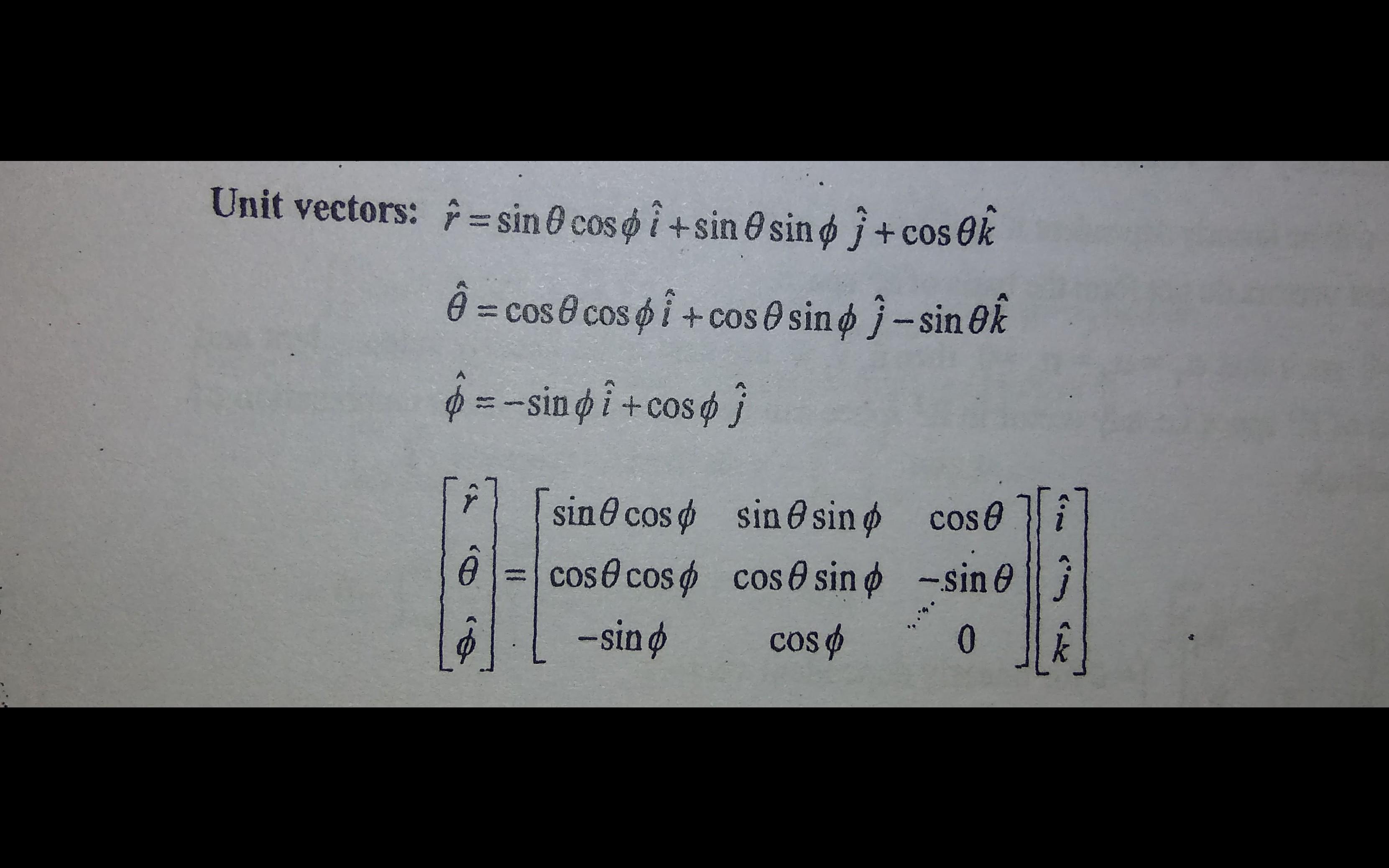

    dear spherical cordiate defined by three perameters as i have shown then their cap will show unit vectors

    eduncle-logo-app

    u can understand this cap as an example of watermelon when shopkeeper cuts it in triangular shape. U will get it's better explanation by ppt. plz see one or two video on you tube.

  • comment-profile-img>
    Somnath

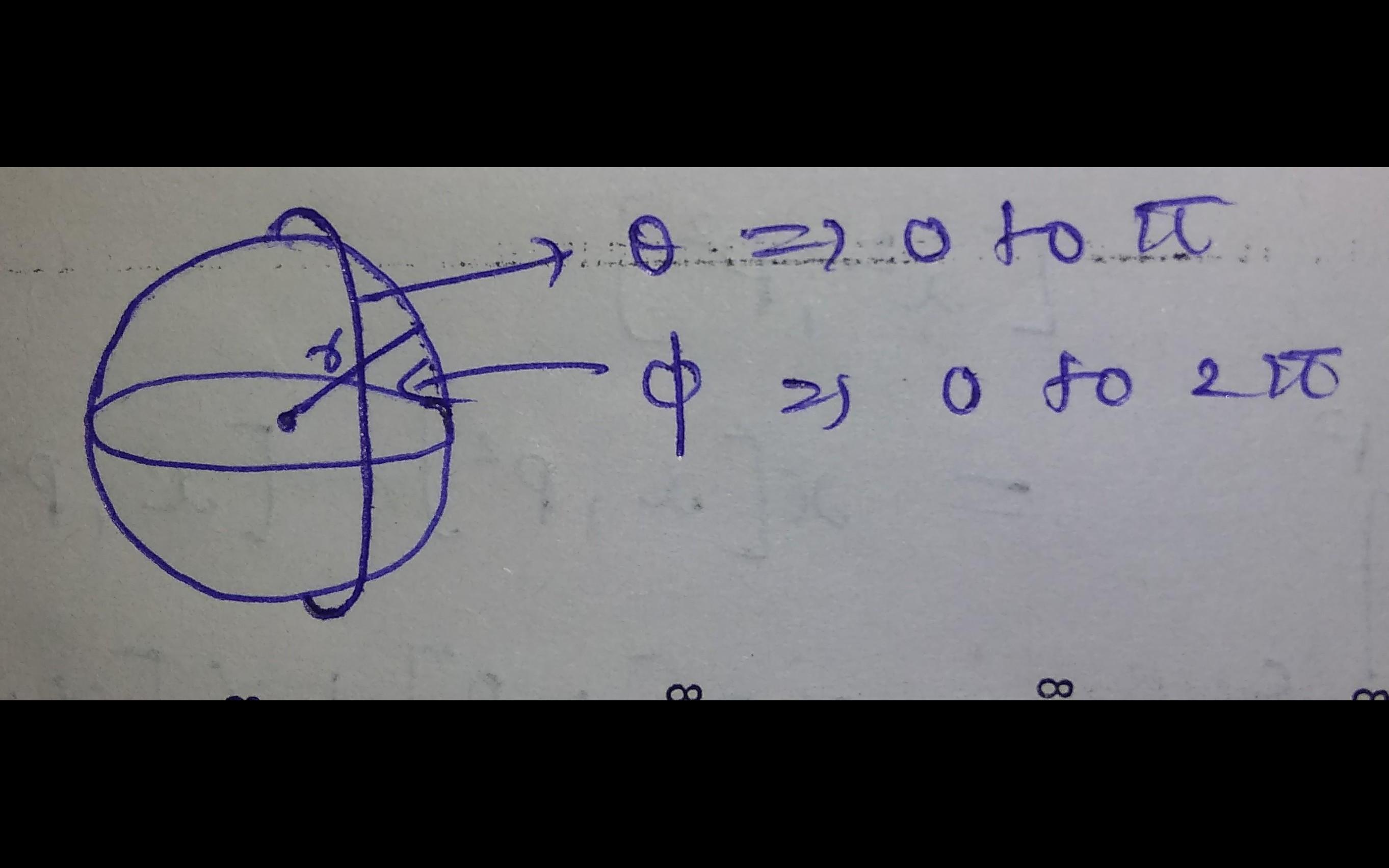

    Limit of theta is 0 to π and that of phi is 0 to 2π. Because if you rotate r from 0 degree to 180 degree in the direction of increasing theta then you will get a half circle and then if you rotate the half circle by a full cycle (that means 0 degree to 360 degree) in the direction of increasing phi then a full spherical volume can be obtained. That’s why the limits are like above.

  • comment-profile-img>
    Chandra prakash best-answer

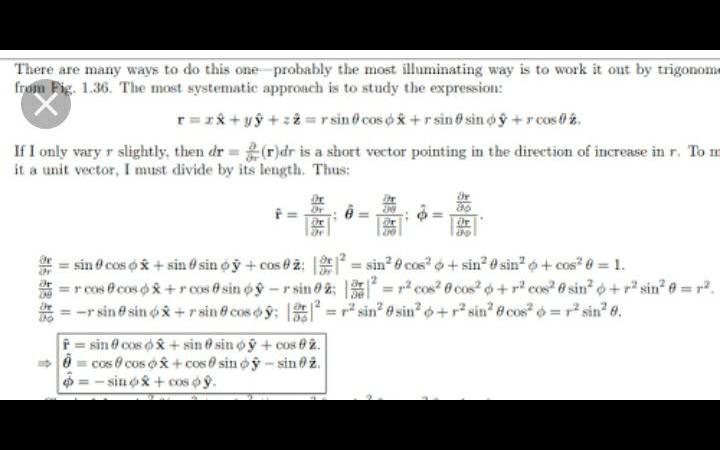

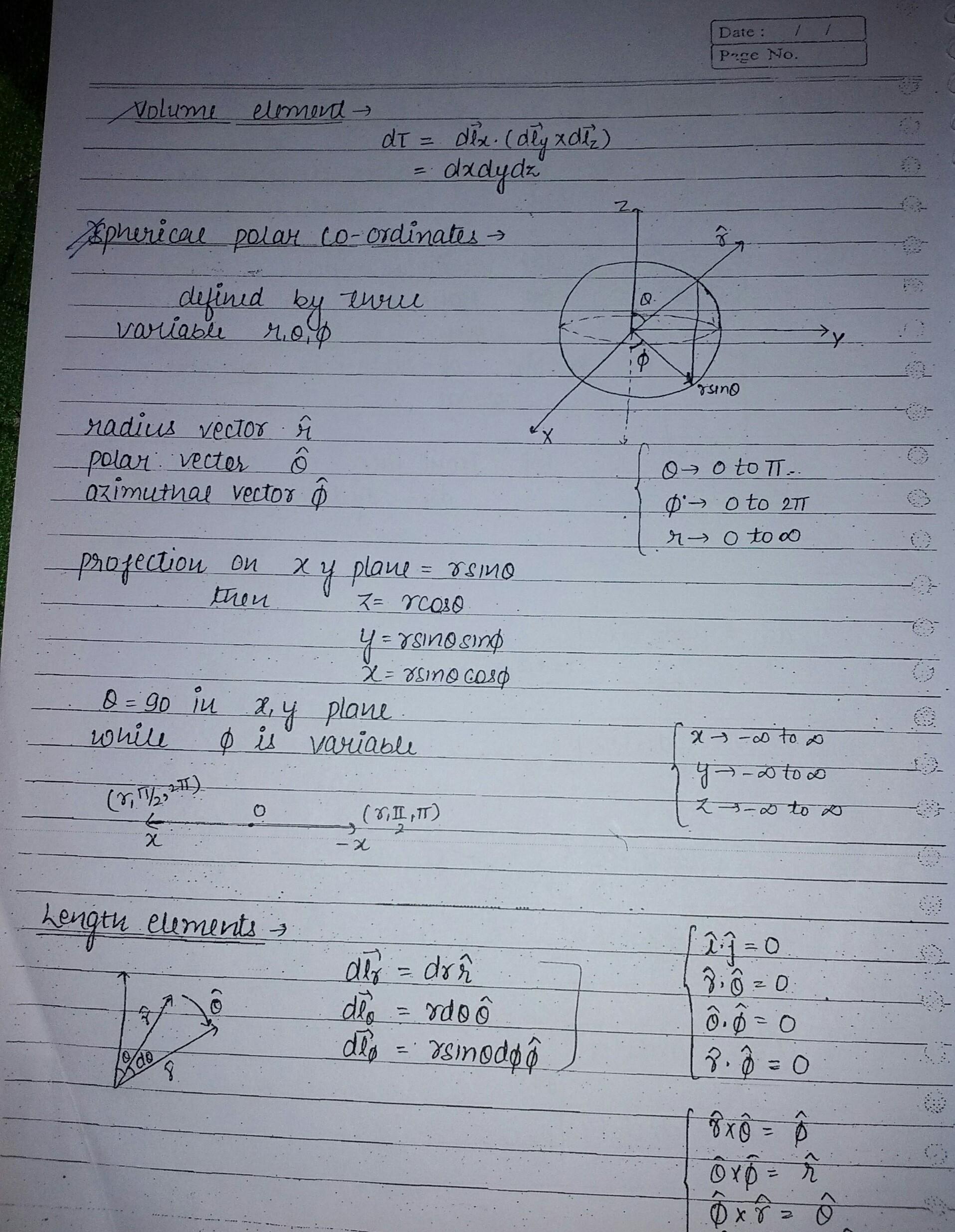

    see attached file it's very helpful for you

    eduncle-logo-app

    The coordinates used in spherical coordinates are rho, theta, and phi. Rho is the distance from the origin to the point. Theta is the same as the angle used in polar coordinates. Phi is the angle between the z-axis and the line connecting the origin and the point.

    eduncle-logo-app

    The surfaces pho=constant, theta=constant, and phi=constant are a sphere, a vertical plane, and a cone (or horizontal plane), respectively. Spherical coordinates are of course very useful when any type of spherical symmetry is present.

  • comment-profile-img>
    Dhairya sharma

    dear r is the distance from origin it can be o to infinite it's our choice
