Aditi agrawal Asked a Question
May 14, 2020 1:14 pmpts 30 pts
  • IIT JAM
  • Physics (PH)

Please provide detailed explanation of these problems

The umber of comparators in a 4-bit lash A to D converter s (a) 4 The fuctional difterene& e rendeavour.in () JK flip-tlop has a fecdback path (6) JK flip-tlop can accept both inputs as 1 C)JK Alip-ilop does not require an extemal clock pulse (d) JK fip-tlop is faster than SR flip-tlop 34 16 TL 1.
  • 3 Answer(s)
Answer Now
  • 0 Likes
  • 6 Comments
  • Shares
  • Ruby negi
    dear, alwys remember that A Flash converter requires 2n-1 comparators for an n-bit conversion. example in this case 4-bit converter require 2^4-1=15comparators.. so this is the sho...
    Show more
    Likes(1) Reply(0)
  • Ruby negi

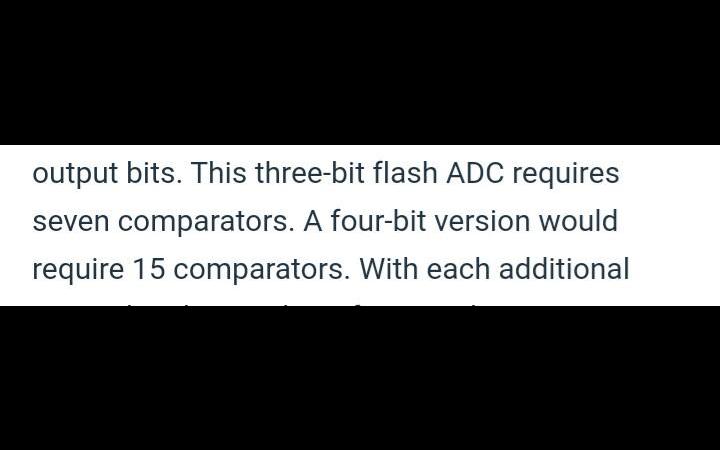

    flash A to D convertor require 15 comparators
    • cropped501819760.jpg
    Likes(1) Reply(0)
  • Ruby negi Best Answer
    The main difference between a JK flip-flop and an SR flip-flop is that in the JK flip-flop, both inputs can be HIGH.
    • cropped-223103895.jpg
    Likes(1) Reply(0)
  • Dhairya sharma thankyou

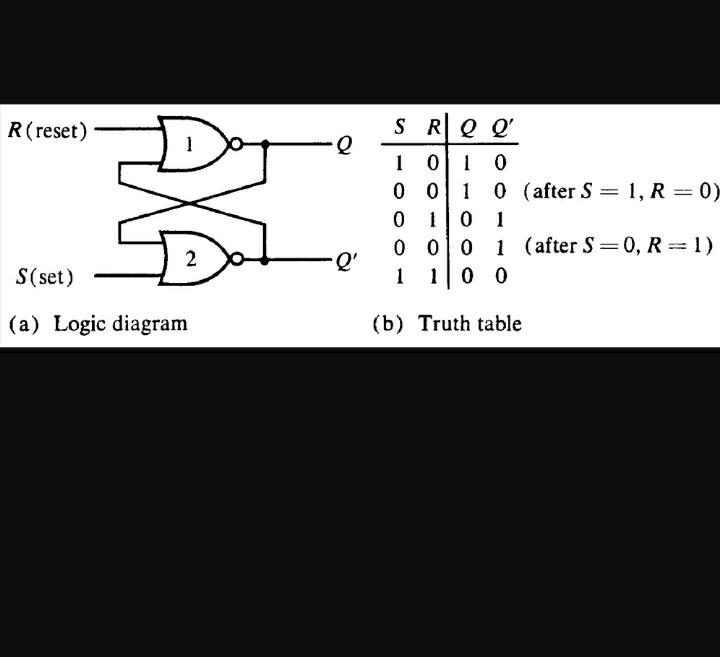

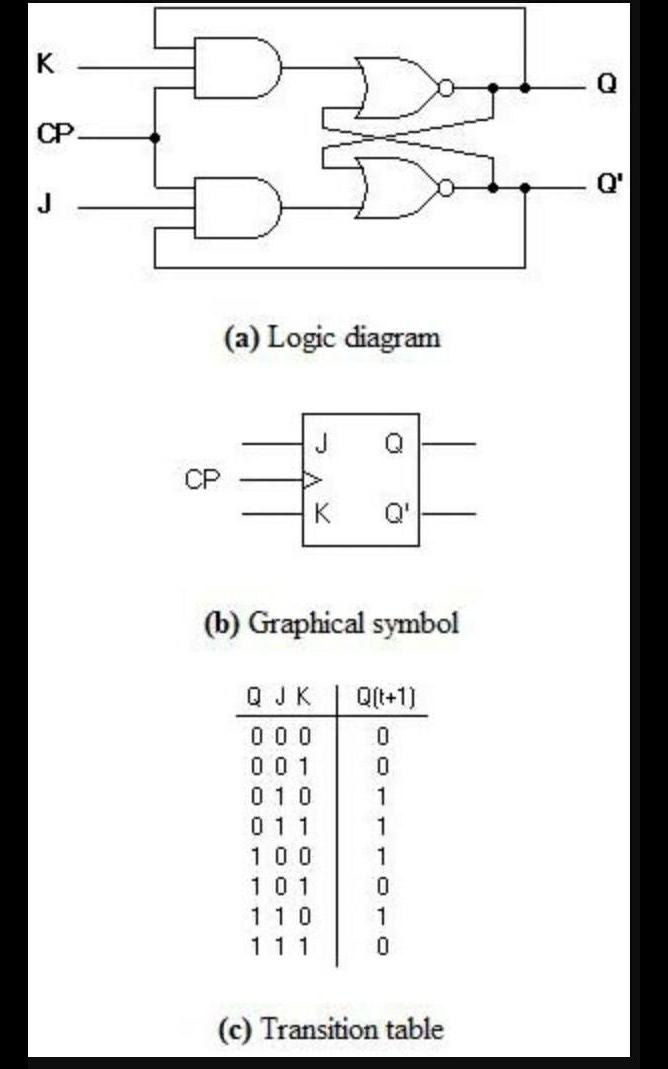

    diagram and truth tables also attached.
    • cropped6629389747413701861.jpg
    • cropped3271104007527161545.jpg
    Likes(0) Reply(0)
  • Dhairya sharma thankyou
    for further clarification
    • cropped7386449367234456721.jpg
    Likes(0) Reply(0)
  • Dhairya sharma

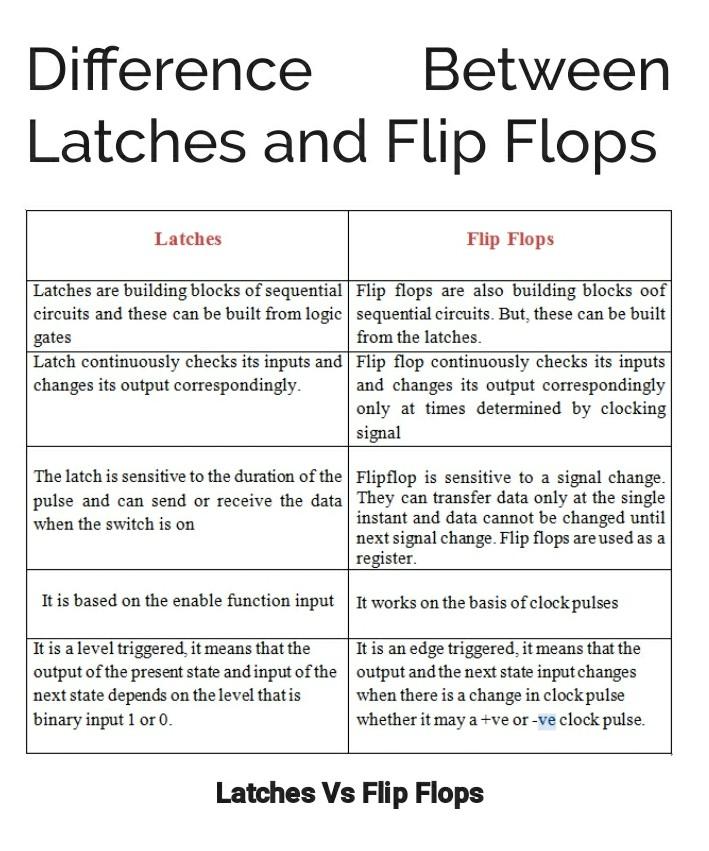

    sr flip flop known as latches .
    • cropped8579915710234960425.jpg
    Likes(0) Reply(0)
