Aditi Agrawal posted an Question
June 12, 2020 • 19:09 pm 30 points
  • IIT JAM
  • Physics (PH)

Please provide solution for its second part...

3. A circuit consists of resistance R ohms and a condenser ofC farads connected to a constant e.m.f. E; if is the voltage of the condenser at time f after closing the circuit Show that=E- Ri and hence show that the voltage at time t is E\1-e CR

3 Answer(s) Answer Now
  • 0 Likes
  • 4 Comments
  • 0 Shares
  • comment-profile-img>
    Dhairya sharma Best Answer

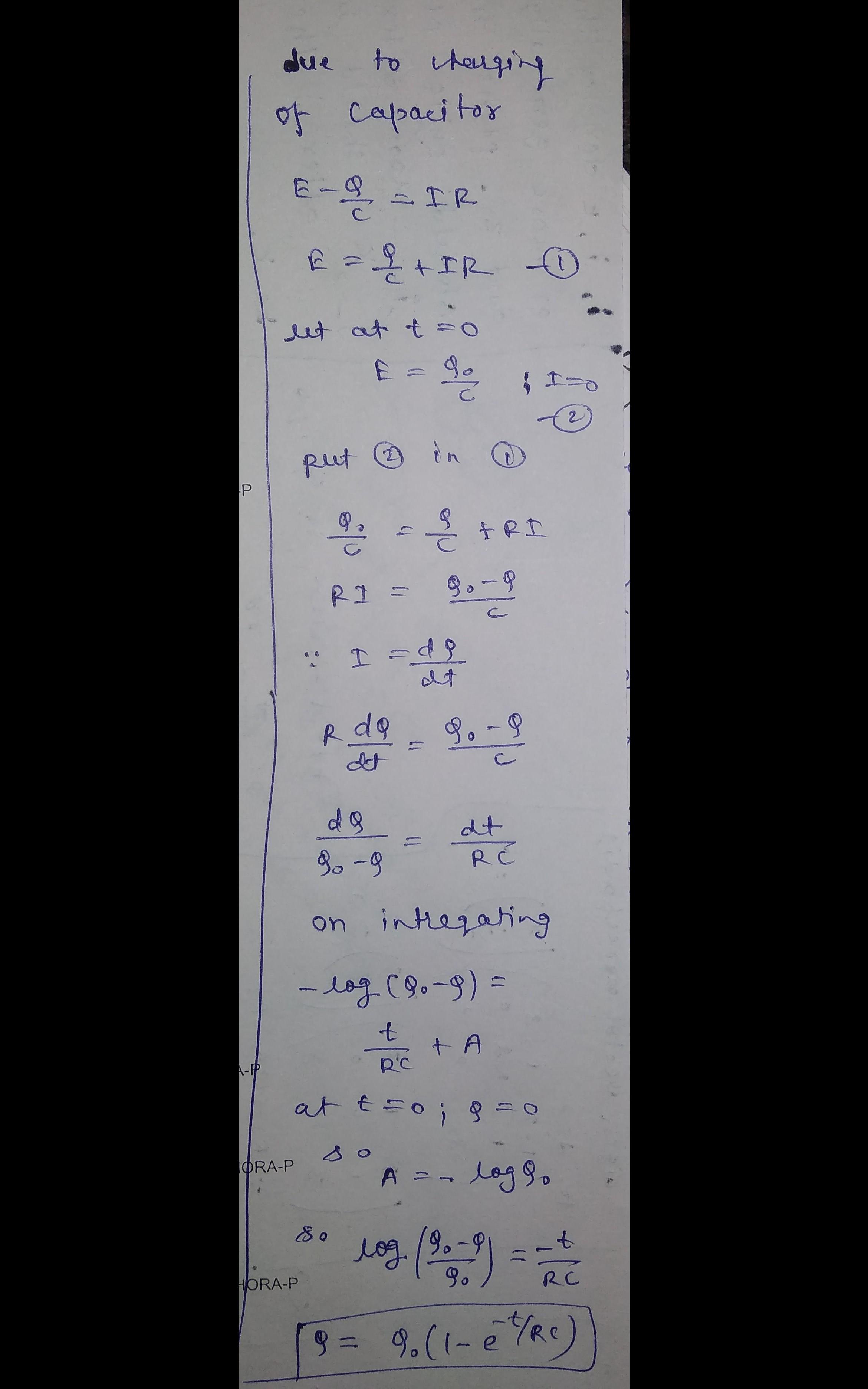

    see attached.

    eduncle-logo-app

    here u should see your solution.

    eduncle-logo-app

    how we will get the equation for voltage from this equation

    eduncle-logo-app

    divide by it it's capacitance now.....

    eduncle-logo-app

    we can convert it

  • comment-profile-img>
    Dhairya sharma best-answer

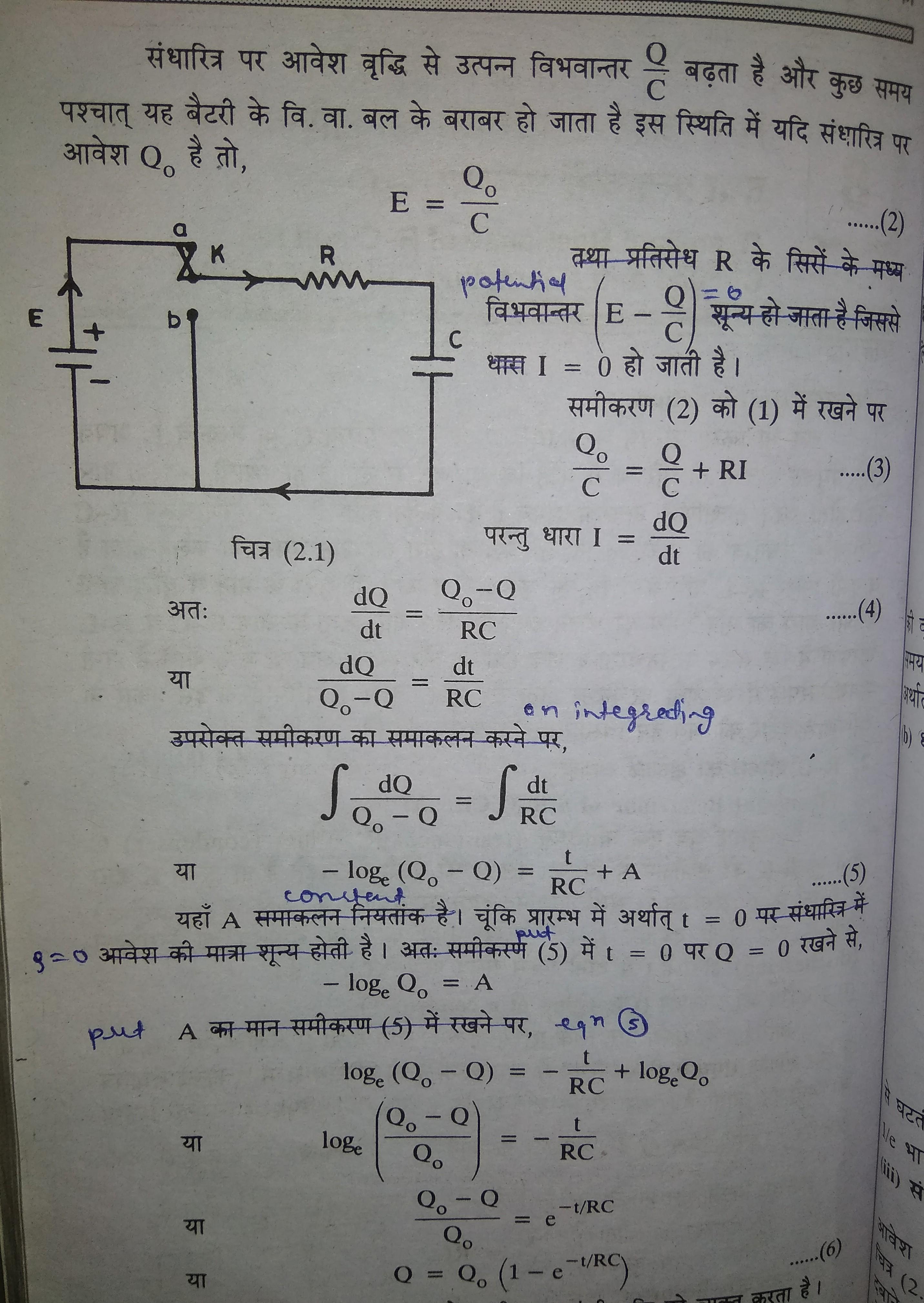

    see attached.

    eduncle-logo-app

    dear i'm writing theory in english wait

    eduncle-logo-app

    first is to charge the capacitor

    eduncle-logo-app

    ok

    eduncle-logo-app

    dear i attached it in english as well see that

    eduncle-logo-app

    this is the question of lde

    eduncle-logo-app

    Sorry i didn't get it.

    eduncle-logo-app

    linear differential equations

    eduncle-logo-app

    dear we will not treat it as differential eqn because here capacitor is charging its charge will increase with respect tio time so we have to Integrate it

    eduncle-logo-app

    i have asked a doubt in your comment of my another post plesee see it

    eduncle-logo-app

    yes dear wait....lemme see

    eduncle-logo-app

    By the u ask nice questions. keep it up

    eduncle-logo-app

    thank you very much mam

    eduncle-logo-app

    it feels very nice when conceptual questions appear

    eduncle-logo-app

    thank you so much
