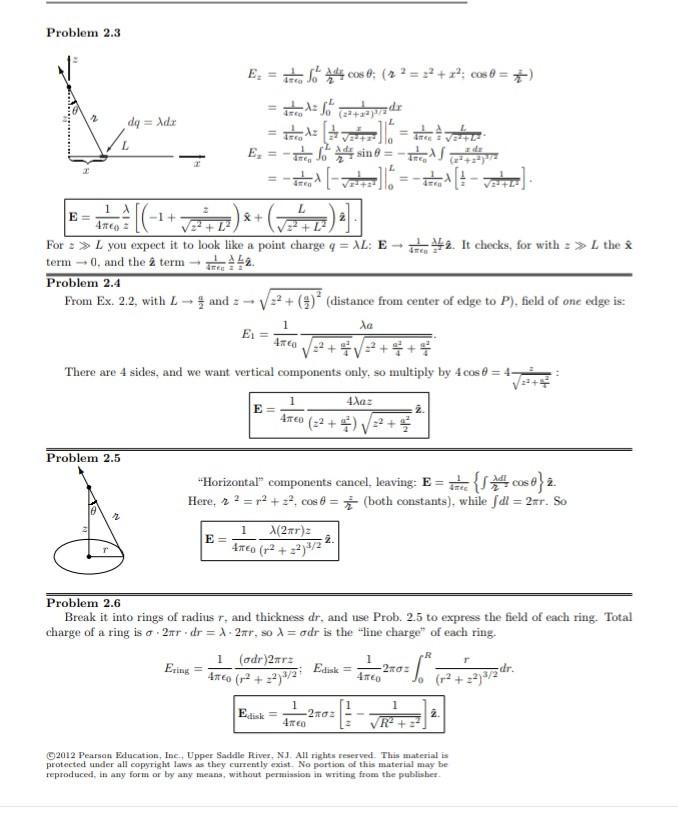

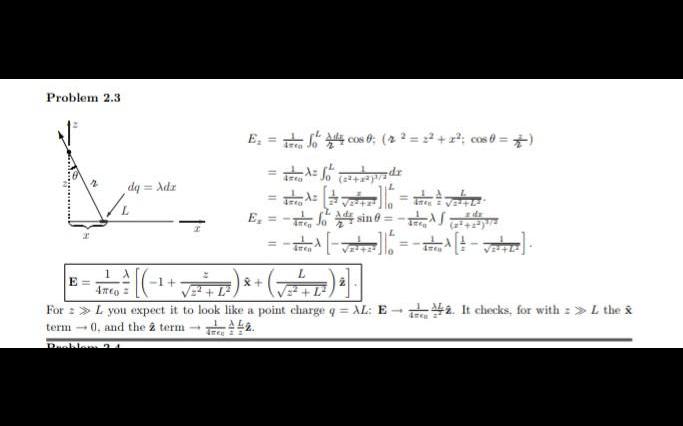

Problem 2.3 find the electric field a distance z above one end of a straight line segment of length l (fig. 2.7) that carries a uniform line charge a. check tha
Problem 2.3 Find the electric field a distance z above one end of a straight line segment of length L (Fig. 2.7) that carries a uniform line charge A. Check that your formula is consistent with what you would expect for the case z>L. P P P - L- -a FIGURE 2.7 FIGURE 2.8 FIGURE 2.9
1 Answer(s)
Answer Now
- 0 Likes
- 2 Comments
- 0 Shares
Do You Want Better RANK in Your Exam?
Start Your Preparations with Eduncle’s FREE Study Material
- Updated Syllabus, Paper Pattern & Full Exam Details
- Sample Theory of Most Important Topic
- Model Test Paper with Detailed Solutions
- Last 5 Years Question Papers & Answers
Sign Up to Download FREE Study Material Worth Rs. 500/-
Bidyut sinha

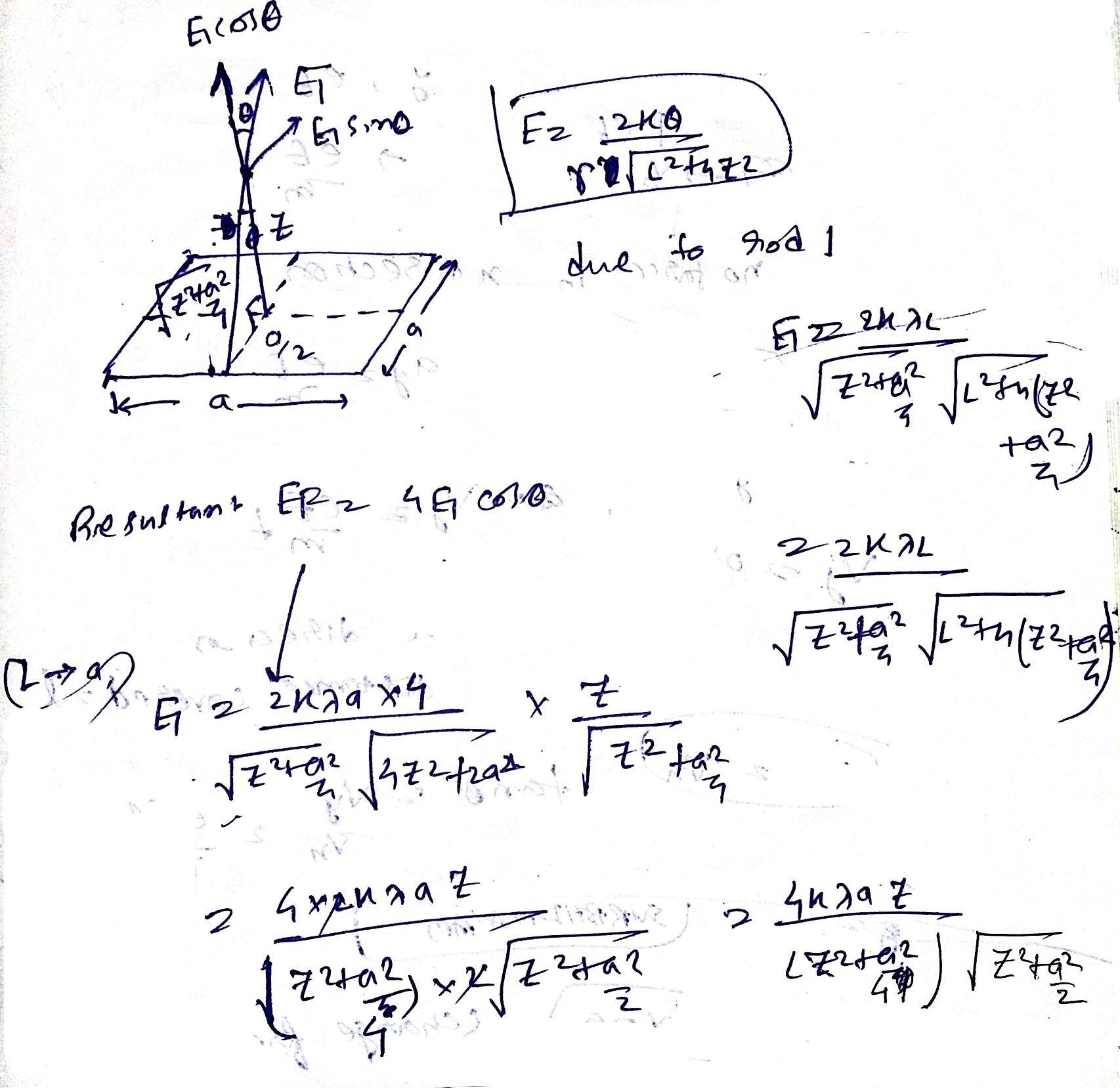

In the figure 2.7, it is considered a small length element dx at a distance x from the origin.Now if we consider line charge density (denoted by lambda) ,then z component & x component of electric field by integrating along 0 to L. Now for figure 2.8 we have applied this formula in case of square.. For each 4 length, Electric Field is 4E1 cos theta..
that means all the sin theta cancel out in fig. 2.8
yes in figure 2.8 , sin theta components are being cancelled.Only Cos theta components will be added up..All 4 cos theta components will be added and will give result 4E1 cos theta.. that's actually vertical components
