Q.10 for an ideal op-amp circuit given below, the dc gain and the cut off frequency, respectively are kq mm- whai to do with iota 10 kq k2 (a) 1 and 1 khz (c) 1

Q.10 For an ideal op-amp circuit given below, the dc gain and the cut off frequency, respectively are kQ MM- whai to do with iota 10 kQ k2 (A) 1 and 1 kHz (C) 11 and 1 kHz (B) (D) 11 and 100 Hz 1 and 100 Hz
  • 1 Answer(s)
Answer Now
  • 0 Likes
  • 1 Comments
  • Shares
  • Ruby negi thankyou

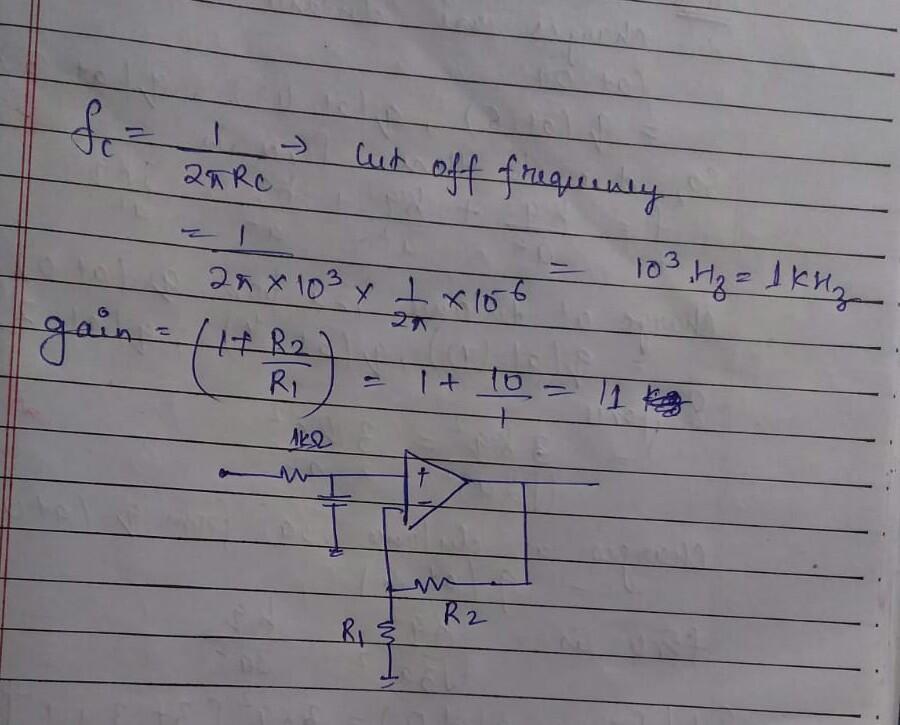

    option c is correct using formula for cutoff frequency 1/(2*π*R*C) and u will get 1KHz .. see the attachment
    • cropped-342746184.jpg
    Likes(0) Reply(0)
