Q.13 a zener regulator has an input voltage in the range 15v-20v and a load current in the range of 5 ma-20 ma. if the zener voltage is 6.8v, the value of the s

Q.13 A Zener regulator has an input voltage in the range 15V-20V and a load current in the range of 5 mA-20 mA. If the Zener voltage is 6.8V, the value of the series resistor should be ww- o 15-20 V 6.8V (A) 390 Q2 (B) 420 Q (C)440 2 (D) 460 Q

1 Answer(s) Answer Now
  • 0 Likes
  • 3 Comments
  • 0 Shares
  • Animesh anand

    some data is missing in the problem

    eduncle-logo-app

    this is iit jam 2015 question

    eduncle-logo-app

    yes I know

    eduncle-logo-app

    but no option is match

    eduncle-logo-app

    I also search this in the Google where I found that it is written that some data is missing in problem so no option is match

    eduncle-logo-app

    so you should accept this

    eduncle-logo-app

    for your satisfaction I show you

  • Animesh anand

    yes you are right no option is matched because answer should be in between two value which I obtained here

  • Animesh anand best-answer

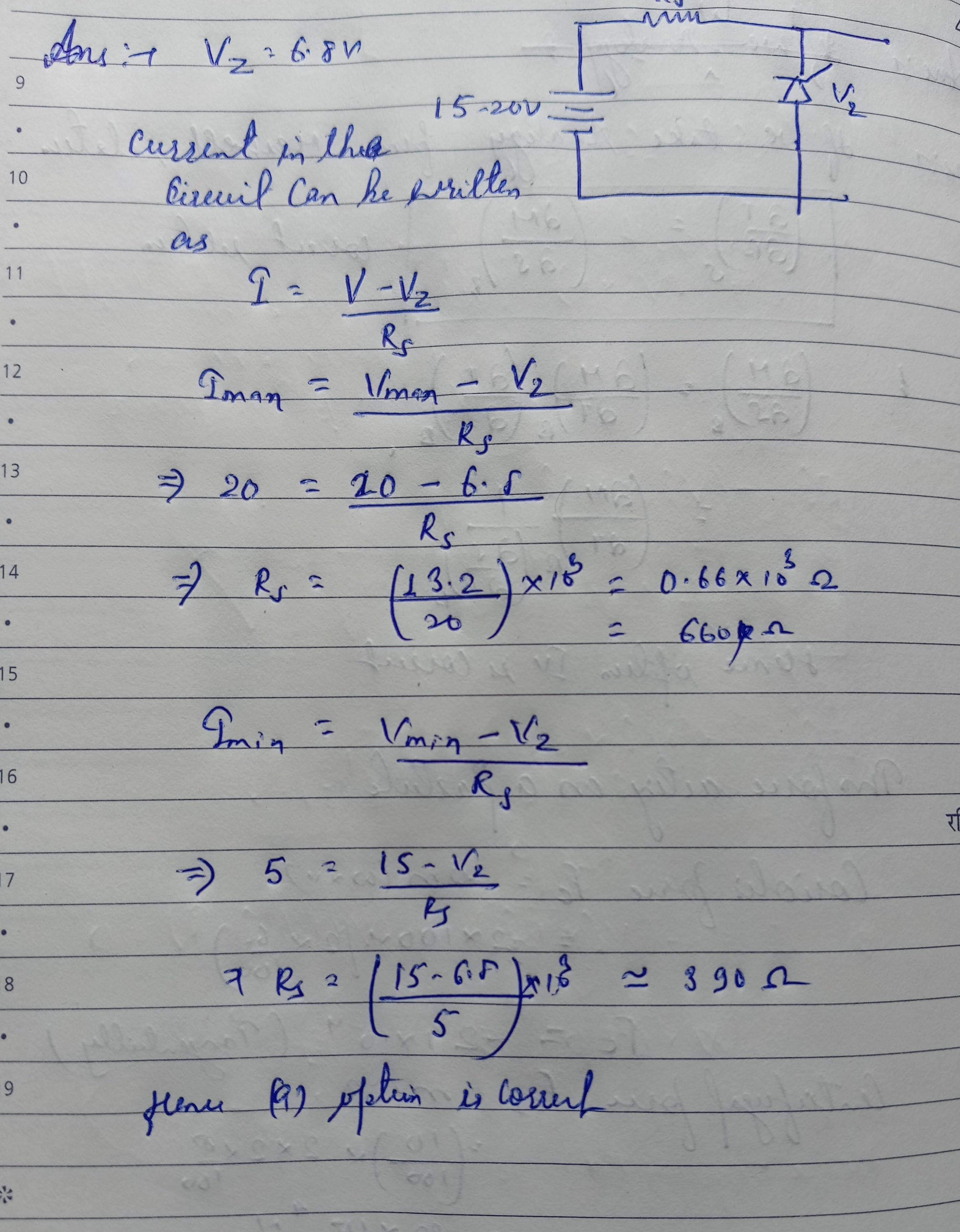

    kindly find your answer attached below

    eduncle-logo-app

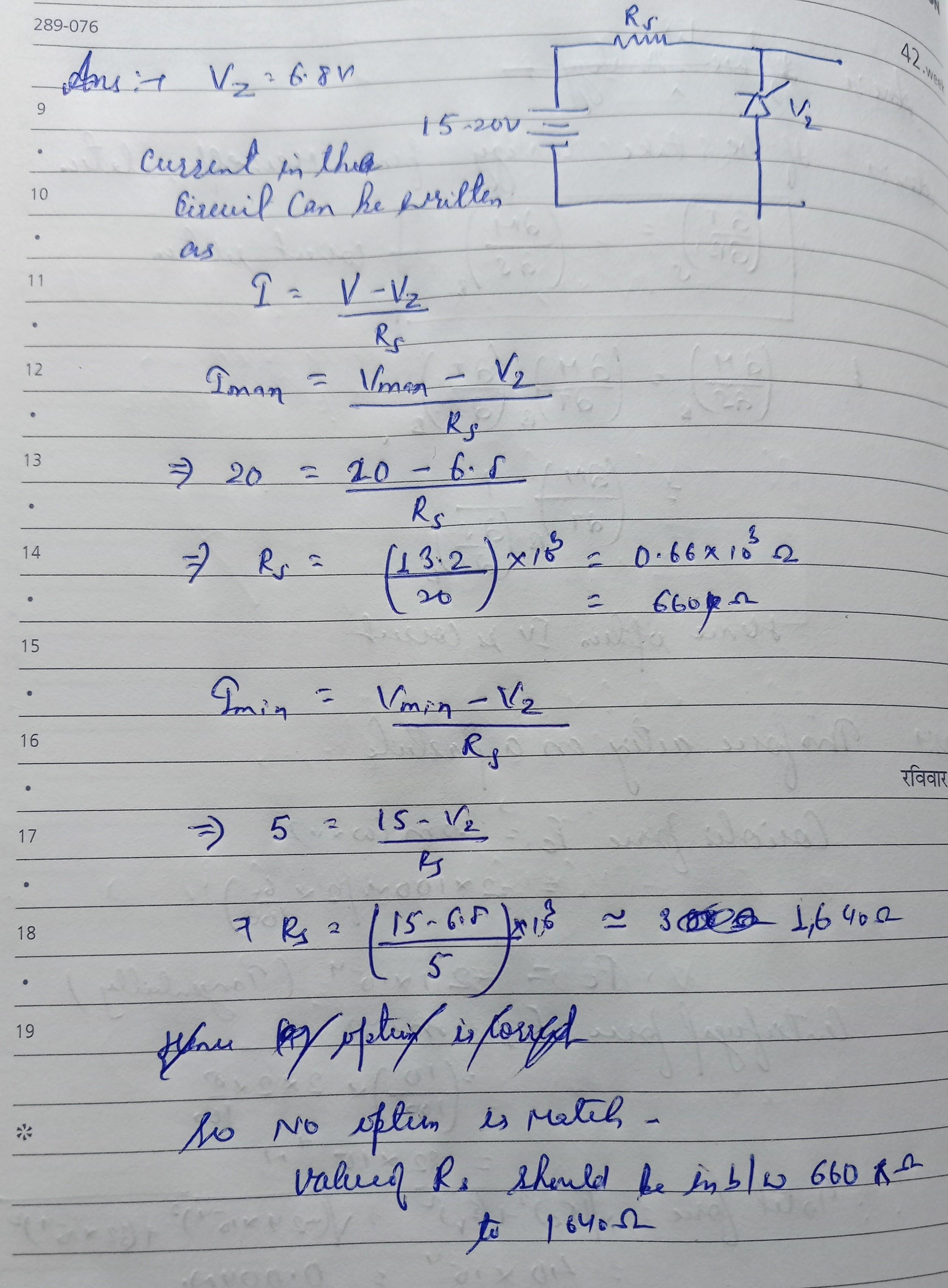

    last calculation is something wrong

    eduncle-logo-app

    in last calculation Imin should come as 1640ohm
