Umme Asked a Question
September 29, 2020 7:11 ampts 30 pts
  • IIT JAM
  • Physics (PH)

Q.21a horizontal plank is 10.0 m long with uniform density and mass 10 kg. it rests on two supports which are placed 1.0 m from each end as shown in the figure.

Q.21A horizontal plank is 10.0 m long with uniform density and mass 10 kg. It rests on two supports which are placed 1.0 m from each end as shown in the figure. A man of mass 80 kg can stand upto distance x on the plank without causing it to tip. The value ofx is
  • 2 Answer(s)
Answer Now
  • 0 Likes
  • 4 Comments
  • Shares
  • Abhisek
    second part
    • cropped2431623563161930765.jpg
    Likes(0) Reply(0)
  • Abhisek
    if any doubt u can ask
    • cropped4549660680322785962.jpg
    Likes(0) Reply(0)
  • Chandra dhawan Best Answer

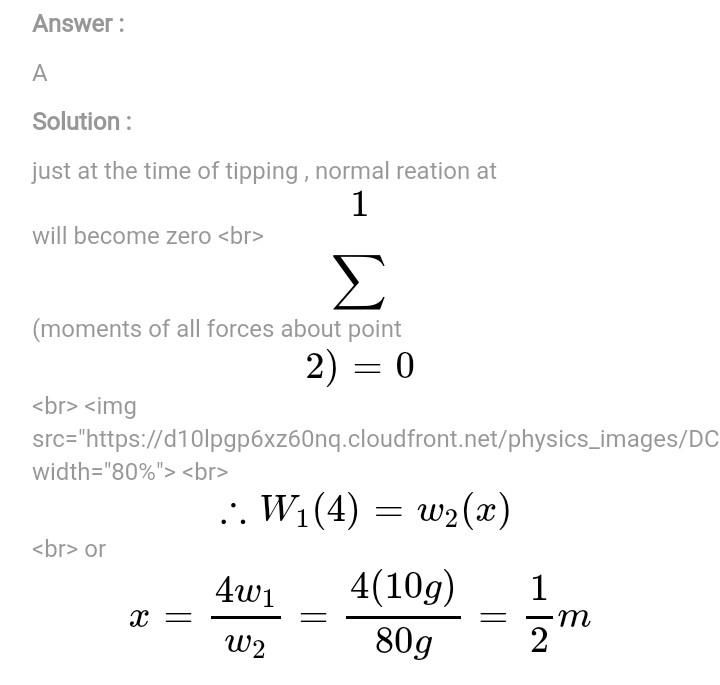

    see attachment
    • cropped311961443202859182.jpg
    Likes(1) Reply(0)
  • Chandra dhawan thankyou
    https://doubtnut.com/question-answer-physics/a-horizontal-plank-is-100-m-long-with-uniform-density-and-mass-10-kg-it-rests-on-two-supports-which--10955944
    Likes(1) Reply(2)
    Chandra dhawan
    oepn this liy
