Q.29 An n-p-n transistor is connected in a circuit as shown in the figure. If Ic = 1 mA, B = 50, VBE = 0.7 V, and the current through R2 is 10 Ig, where IB is the base current. Then the ratio Ri/R2 15 Q.29 Ri 2.5k Vc VCE3 V VE 0.5V R2 0.5k nil tigiave bnsi o inlo A (C) 0.5 (D) 0.275 (A) 0.375 (B) 0.25
  • 1 Answer(s)
  • 0 Likes
  • 1 Comments
  • Shares
  • Monika thankyou

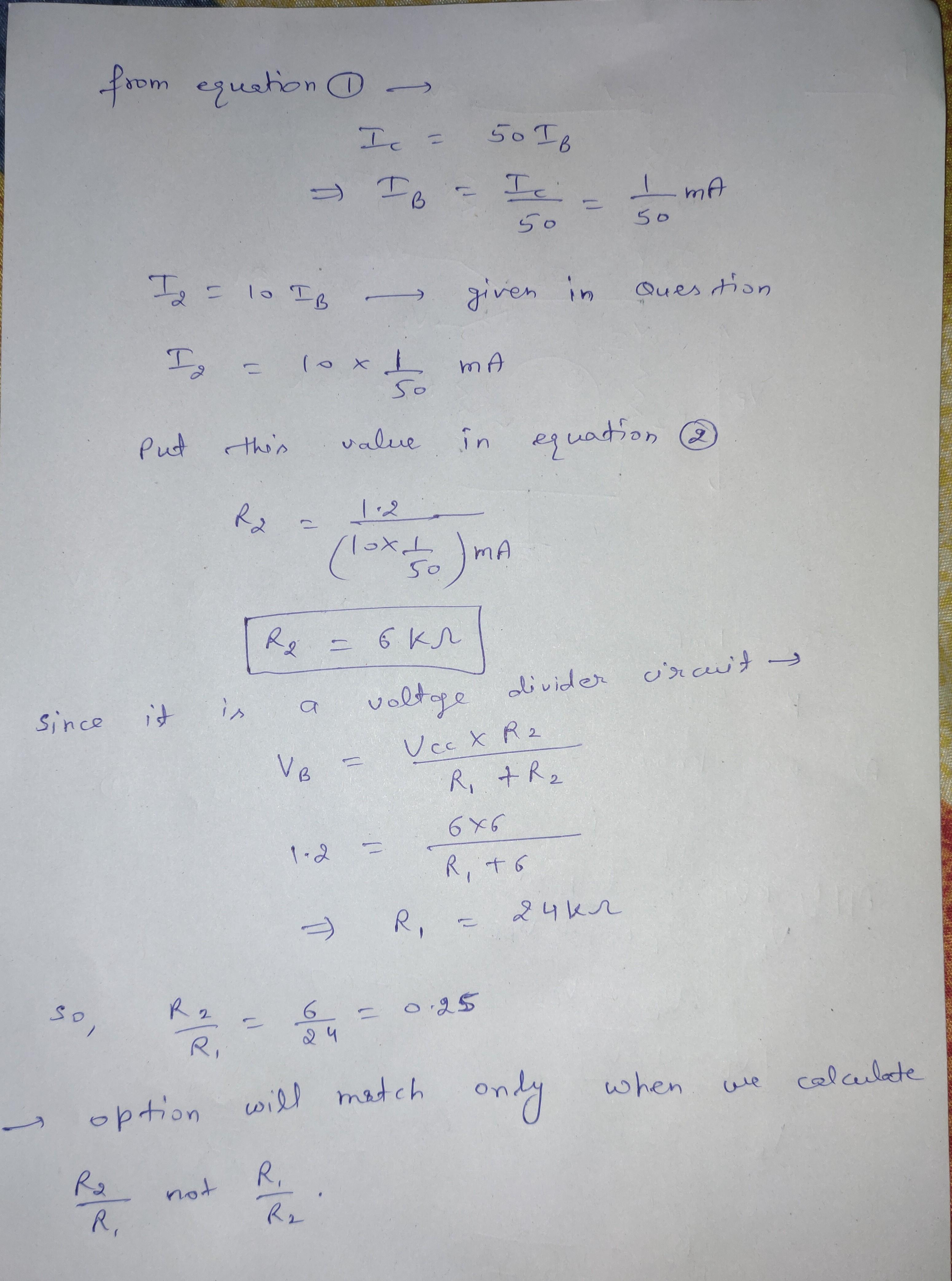

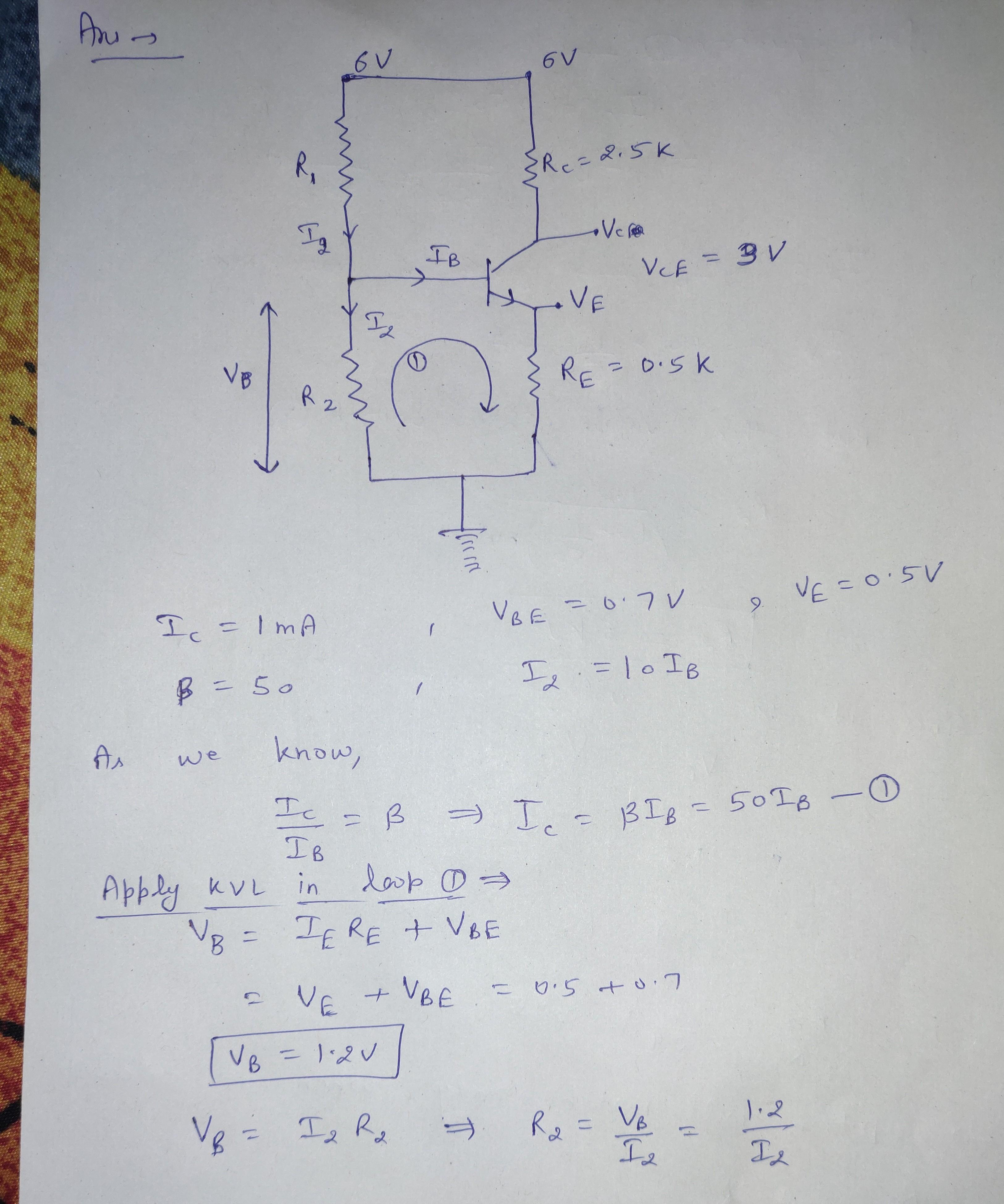

    option. (b) is correct see the attachment
    • cropped777939783485811778.jpg
    • cropped2977283849719682425.jpg
