Kapil Prajapat posted an Question
January 28, 2022 • 22:15 pm
![]()
30 points
30 points
- IIT JAM
- Physics (PH)
Q.40 figure shows a circuit diagram comprising boolean logic gates and the corresponding timing diagrams show the digital signals at various points in the circu
Q.40 Figure shows a circuit diagram comprising Boolean logic gates and the corresponding timing diagrams show the digital signals at various points in the circuit. Which of the following is/are true? UU (A) Points 3 and 7 are shorted. (B) The NOT gate on the right is faulty. (C) The AND gate is faulty and acts like a NOR gate. (D) The AND gate is faulty and acts like an OR gate.
1 Answer(s)
Answer Now
- 0 Likes
- 1 Comments
- 0 Shares
Do You Want Better RANK in Your Exam?
Start Your Preparations with Eduncle’s FREE Study Material
- Updated Syllabus, Paper Pattern & Full Exam Details
- Sample Theory of Most Important Topic
- Model Test Paper with Detailed Solutions
- Last 5 Years Question Papers & Answers
Sign Up to Download FREE Study Material Worth Rs. 500/-
Ashish bhargava Best Answer

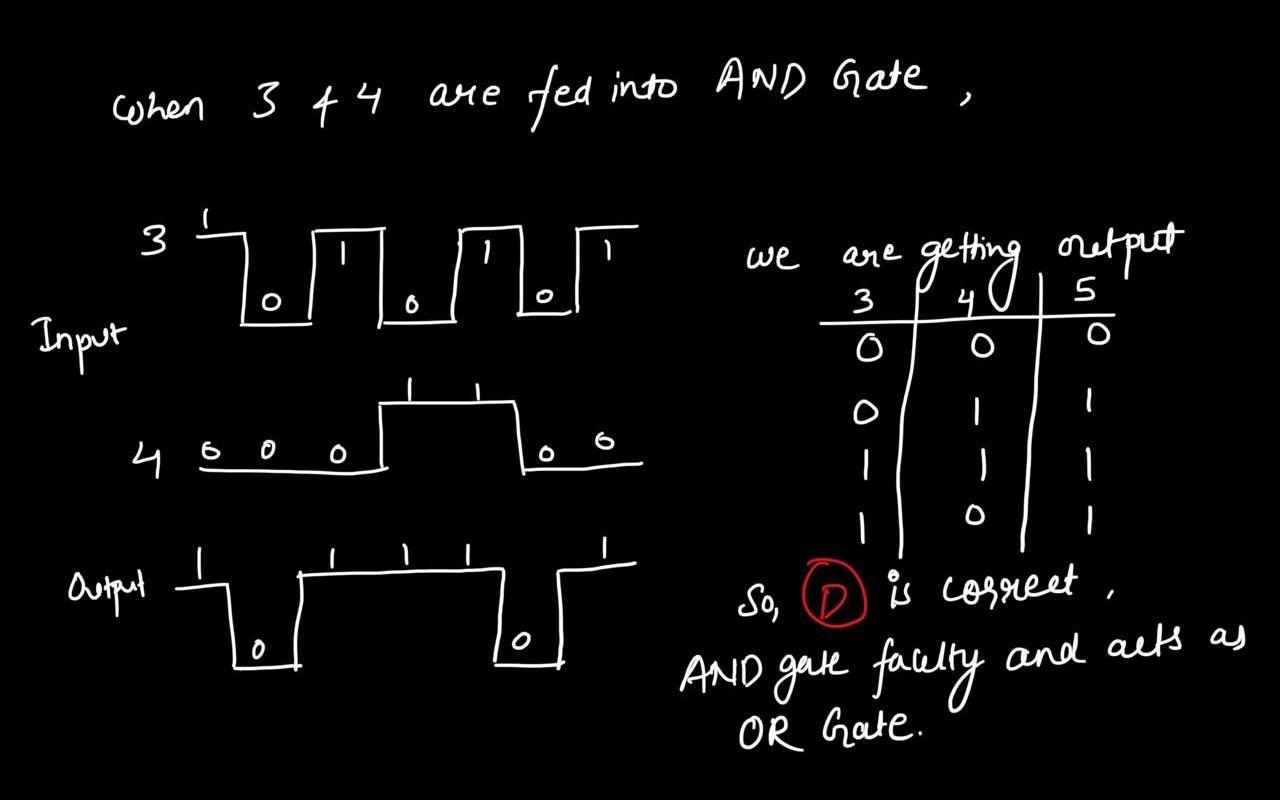

See attached file
faulty ka matalab kya hota h?
faulty matlab 'kharaab', isko AND gate ki tarah behave krna chahiye, but ye OR gate ki tarah work kr rha h, isliye ye faulty h
