Q the output voltage vo ot the opamp circuit given below is-

JAM 2016 Q48. Acc to me answer should be zero, but in official answer key it is given to be 6V?

3 Answer(s)

0 Likes
9 Comments
0 Shares

>
Chandra prakash

You can reasonably assume that currents can flow from an input (Va in your diagram) and from the op-amp output (Vo in your diagram). This means you can assume current does not flow into the two op-amp inputs and these can be regarded as high impedances ..
- Likes(2)
- Reply(0)

>
Abhishek singh Best Answer

As V1(non inverting terminal) is grounded. That means the output will be zero, because the amplification of zero by any factory is zero itself. regards.
- Likes(2)
- Reply(0)

>
Dhairya sharma

see another explanation.
- Likes(1)
- Reply(4)
i hope dear now u get it.
- Like(0)
because o/p has infinite i/p impedance
- Like(0)
yes input current in opamp is zero.
- Like(1)
yes dear,you got it .👍
- Like(1)

>
Chandra prakash

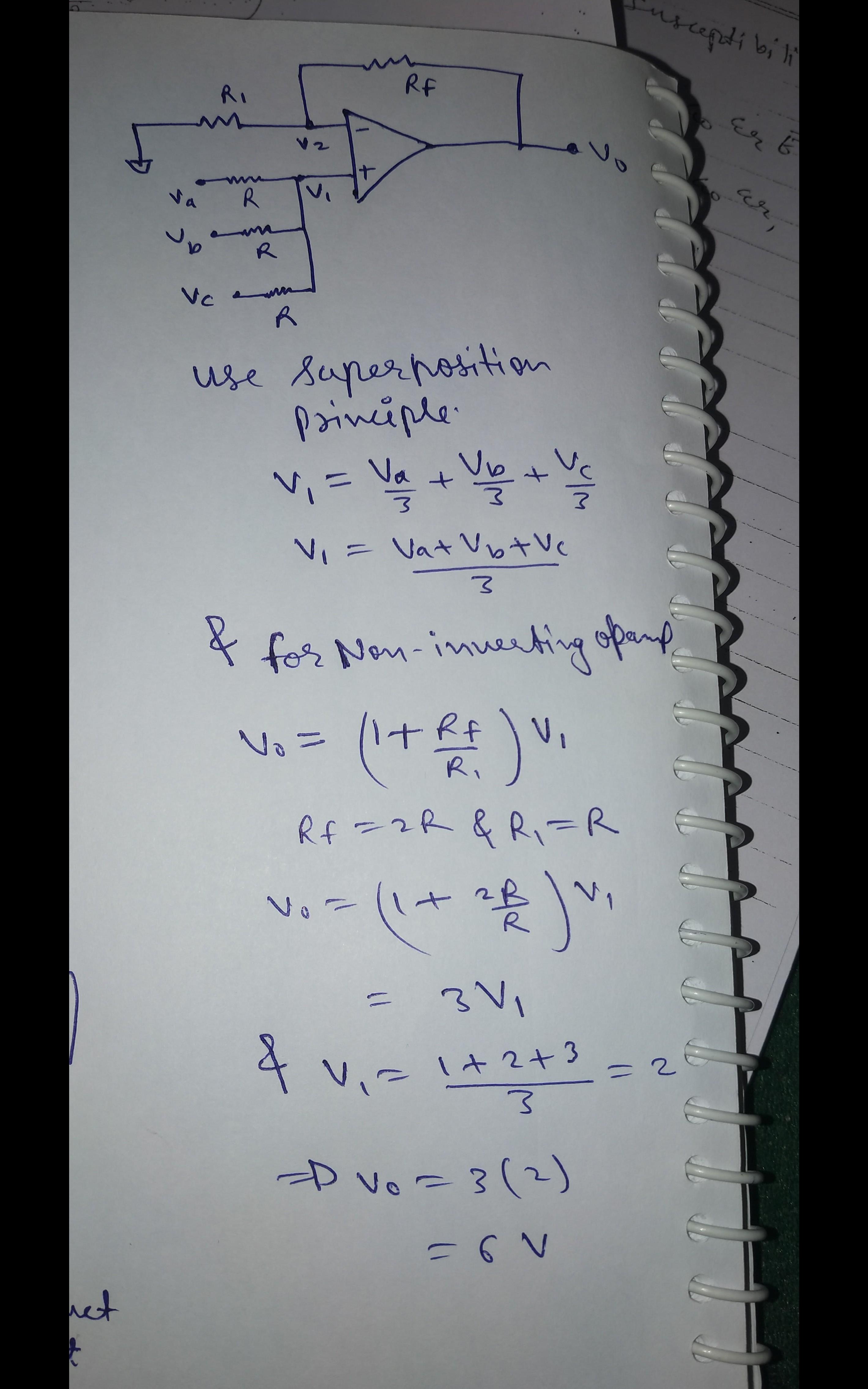

see attached file dear... it's explanation of this type of prob..... I hope u understood it
- Likes(2)
- Reply(1)
in attached file the non inverting terminal is not grounded. but in given ques non inverting terminal is grounded
- Like(0)

>
Abhishek singh

A general solution. It would help you in solving similar questions too. regards
- Likes(1)
- Reply(7)
how can I help you?
- Like(0)
ye thik h , but question m ground diya hua h non inverting terminal pr
- Like(1)
Then the answer should be zero! I had not looked at it carefully. sorry for the inconveniences
- Like(0)
I also think answer to be zero this way. but in jam official answer key it was given 6V. Is it wrong there?
- Like(0)
if you have seen in the jam official answer key(with the same diagram) then I couldn't make a statement against the official key. But still, in my opinion the answer should be zero.
- Like(1)
non inverting terminal is not grounded
- Like(0)
in your attached question
- Like(0)

>
Chandra prakash

dear see attached file... I hope it's helpful for you dear..
- Likes(2)
- Reply(0)

>
Dhairya sharma

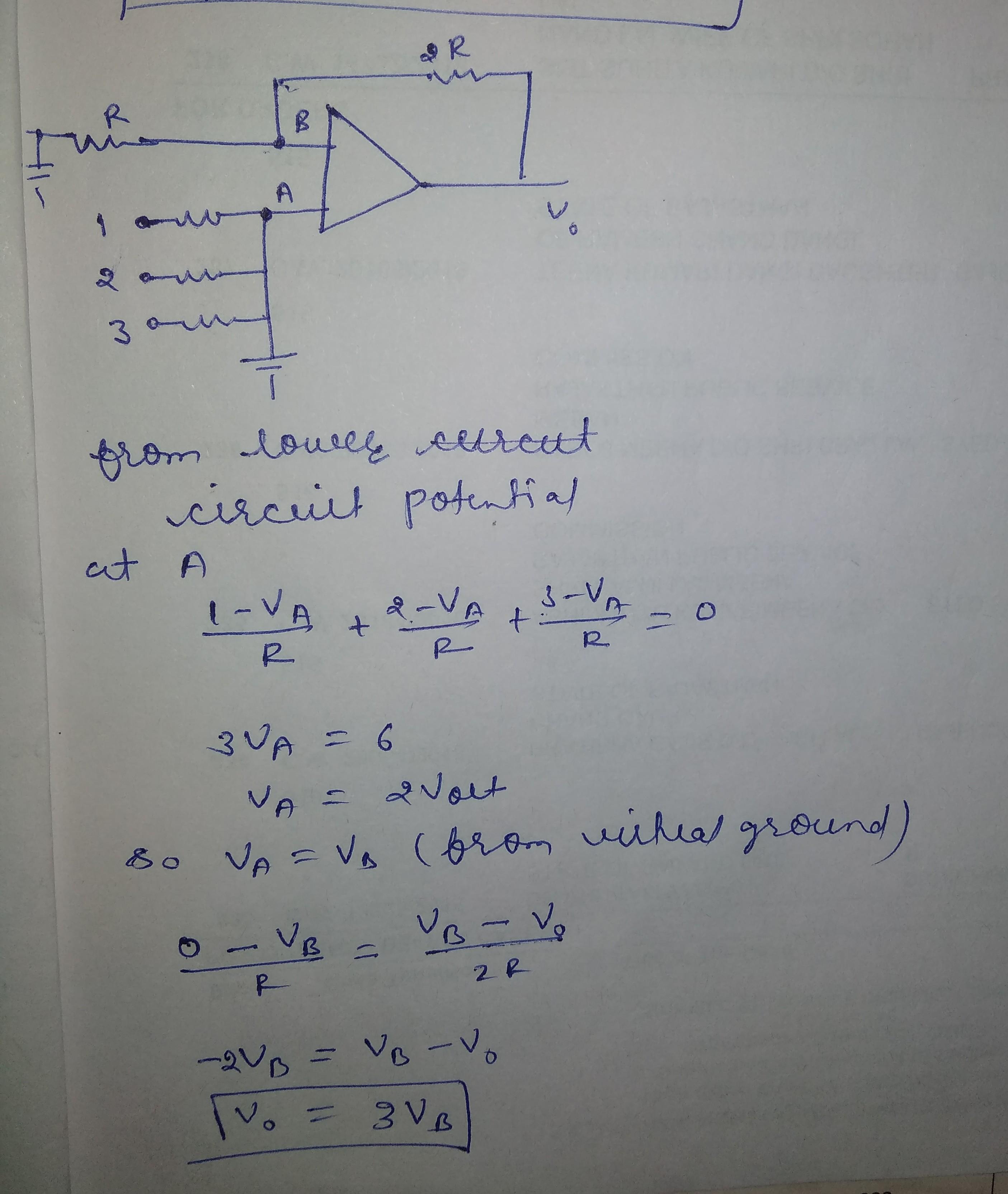

see attached solution. output will be 6 coz Vb= Va
- Likes(0)
- Reply(7)
while calculating potential at A, why do we add up all the current to zero? current must flow down to ground?
- Like(1)
incoming current = outgoing current. from nodal analysis
- Like(1)
dear current in ground is 0
- Like(1)
how is current in ground zero? current flow from high potential to low potential so all current should go down through ground
- Like(1)

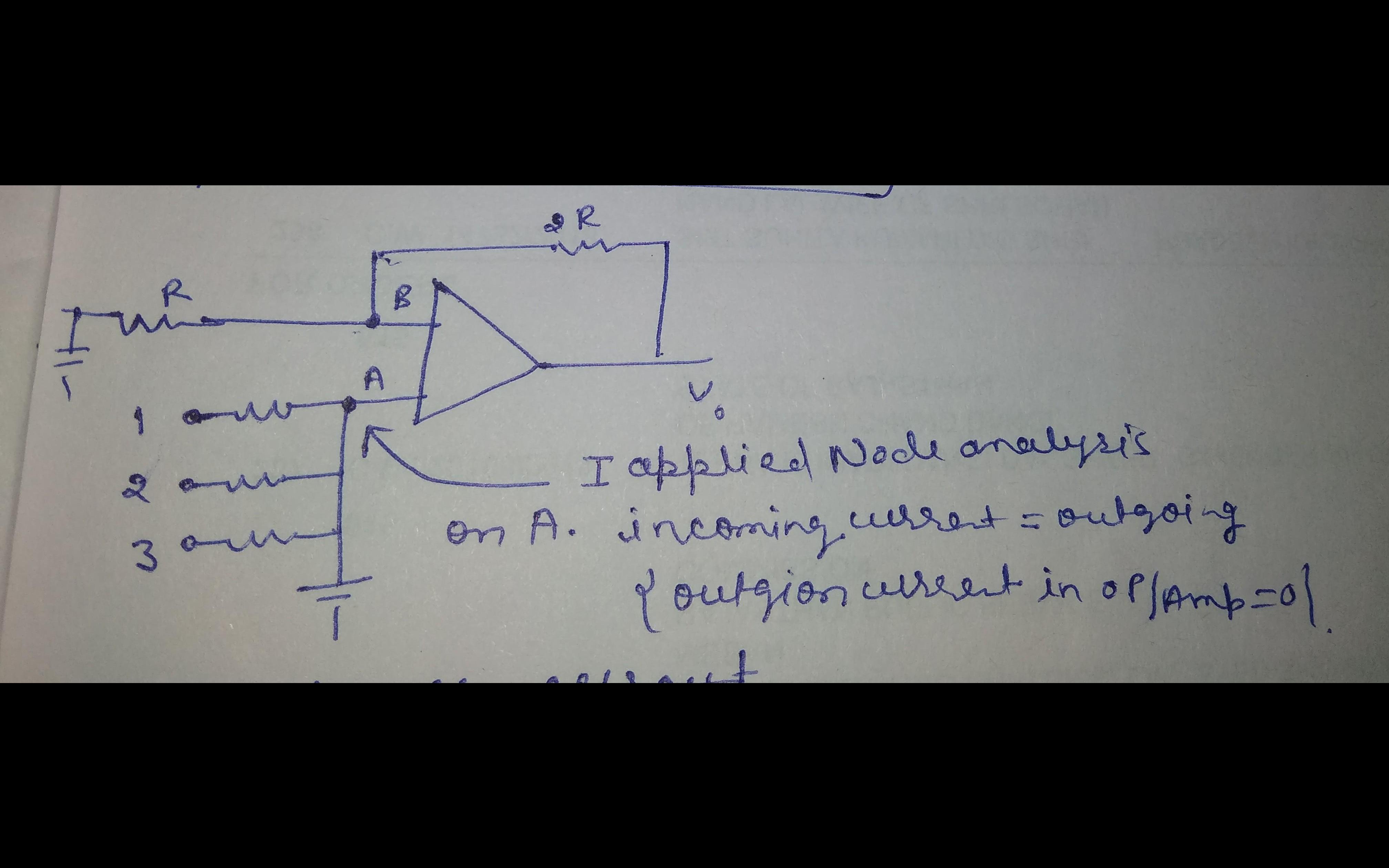

dear.....i attached a pic ...see that. it's a concept and thumb rule that no current will flow in op/amp.
- Like(1)
current not flow in two input terminal bcoz of high impedance
- Like(1)
yes the input current in opamp will be zero. I was doutfull, about if all the current will flow down to ground.
- Like(1)

>
Ruby negi

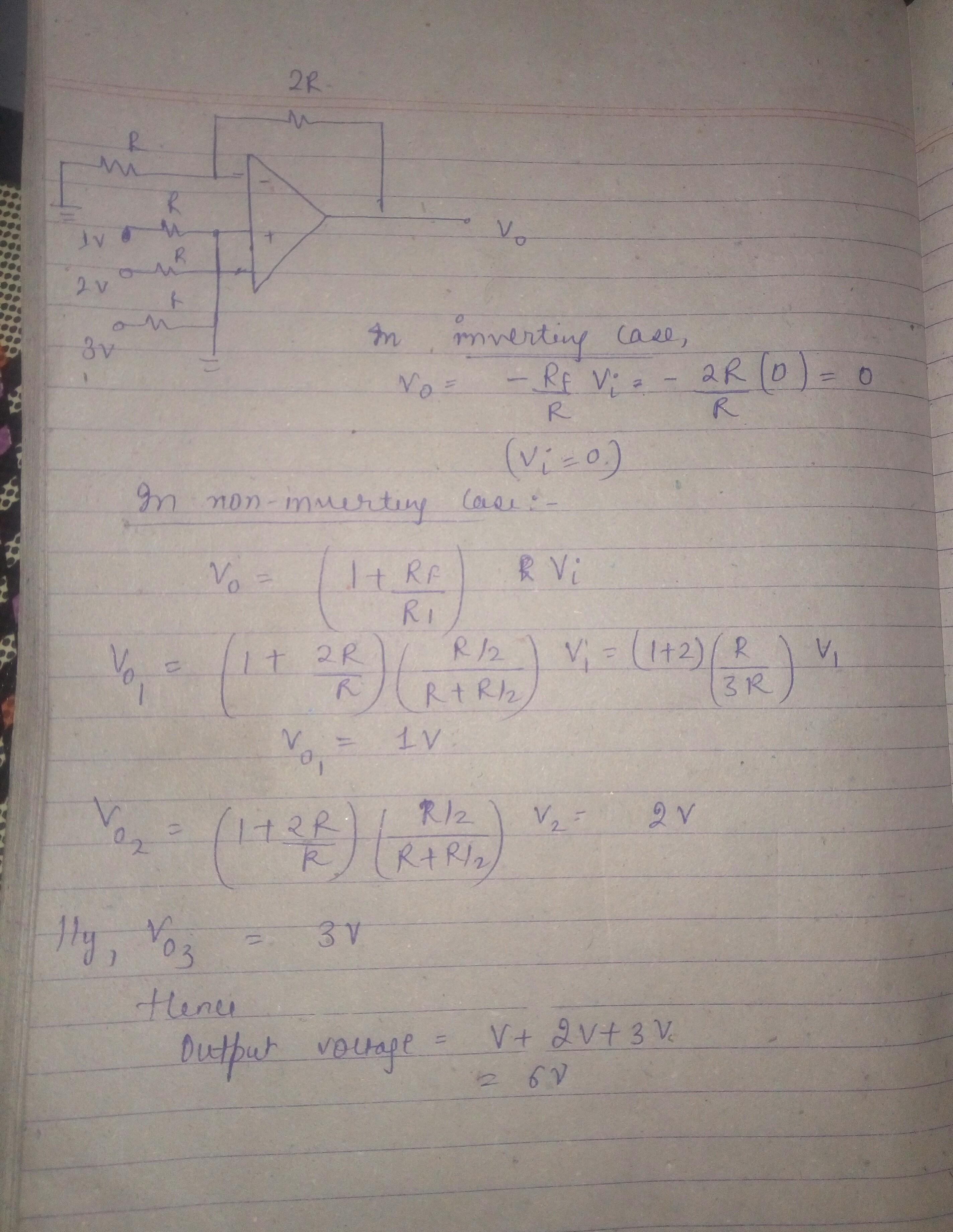

non inverting case..I used this formula(or concept)..
- Likes(2)
- Reply(1)
okay, thanks
- Like(1)

>
Ruby negi

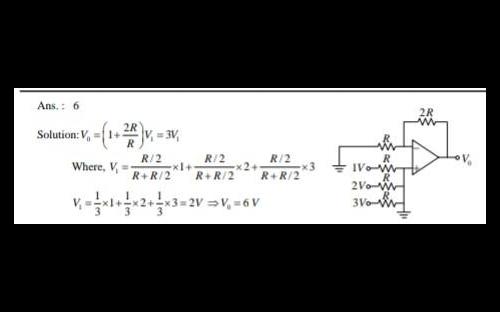

6 is the ans.
- Likes(2)
- Reply(1)

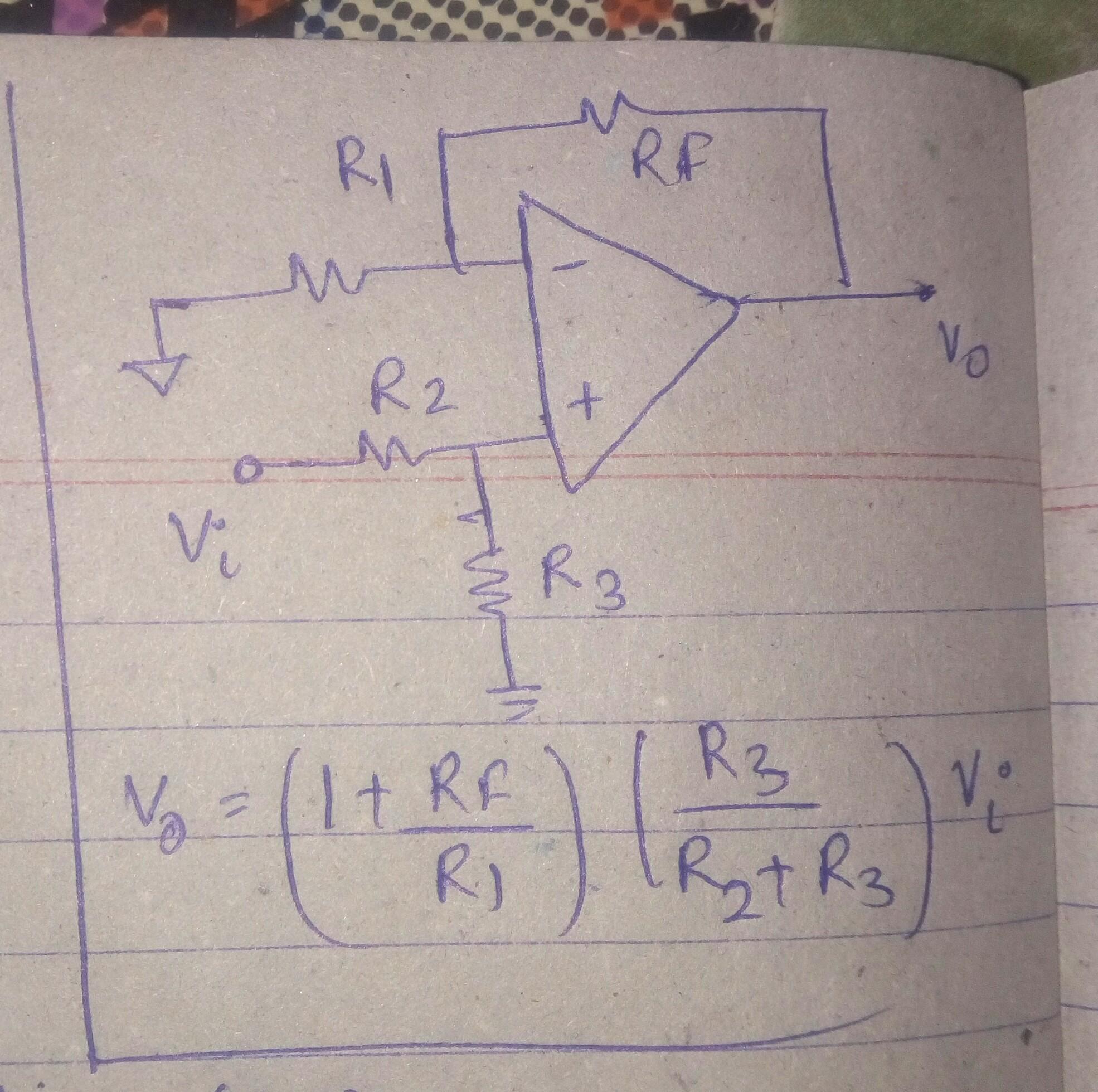

here, in calculating V01, how do you put the other two resistance in parallel (R3 in formula). the other two resistances are at different potentials, can we add then in parallel?
- Like(0)
