Carson Asked a Question
June 30, 2020 6:10 pmpts 30 pts
Q3. Let and h represent currents in the 102 and 202 resistance respectively. The correct expression describing Kirchoff's voltage loop law in one of the following loops is, (a) 30/,-10/, = 10 (b)-15/,+201, = -20 ()30/, -151, =10 (d) 15/, -351, = -20 a w 152 2A 20 v 50 O ) b) O d)
  • 3 Answer(s)
  • 0 Likes
  • 4 Comments
  • Shares
  • Ruby negi Best Answer
    match ur option..

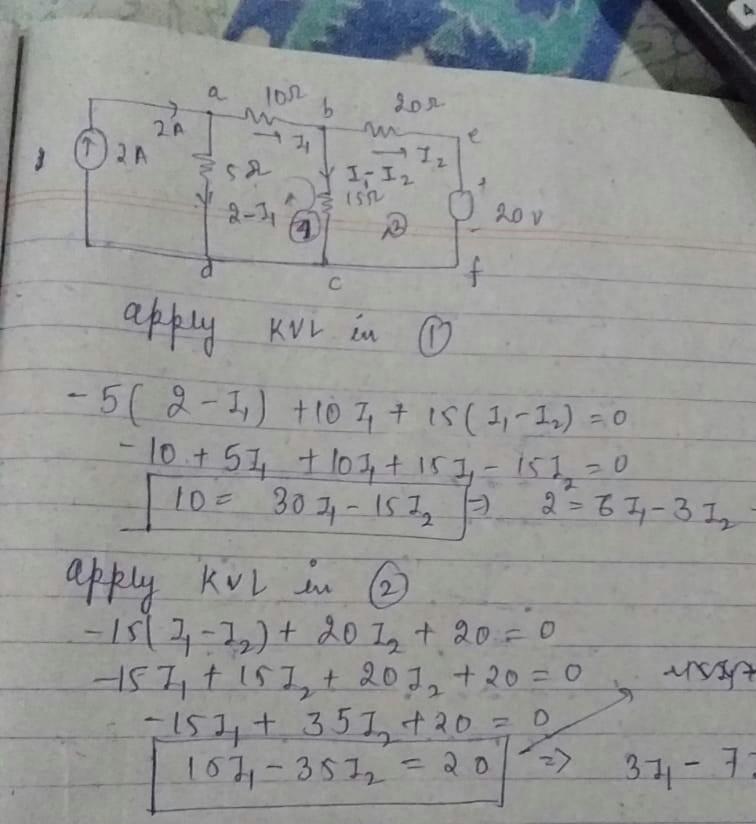

    • cropped-2070478176.jpg
    Likes(1) Reply(2)
    Ruby negi
    option c is correct..
  • Chandra dhawan thankyou
    dear I think option c is correct... for this see attached file it's very helpful for you

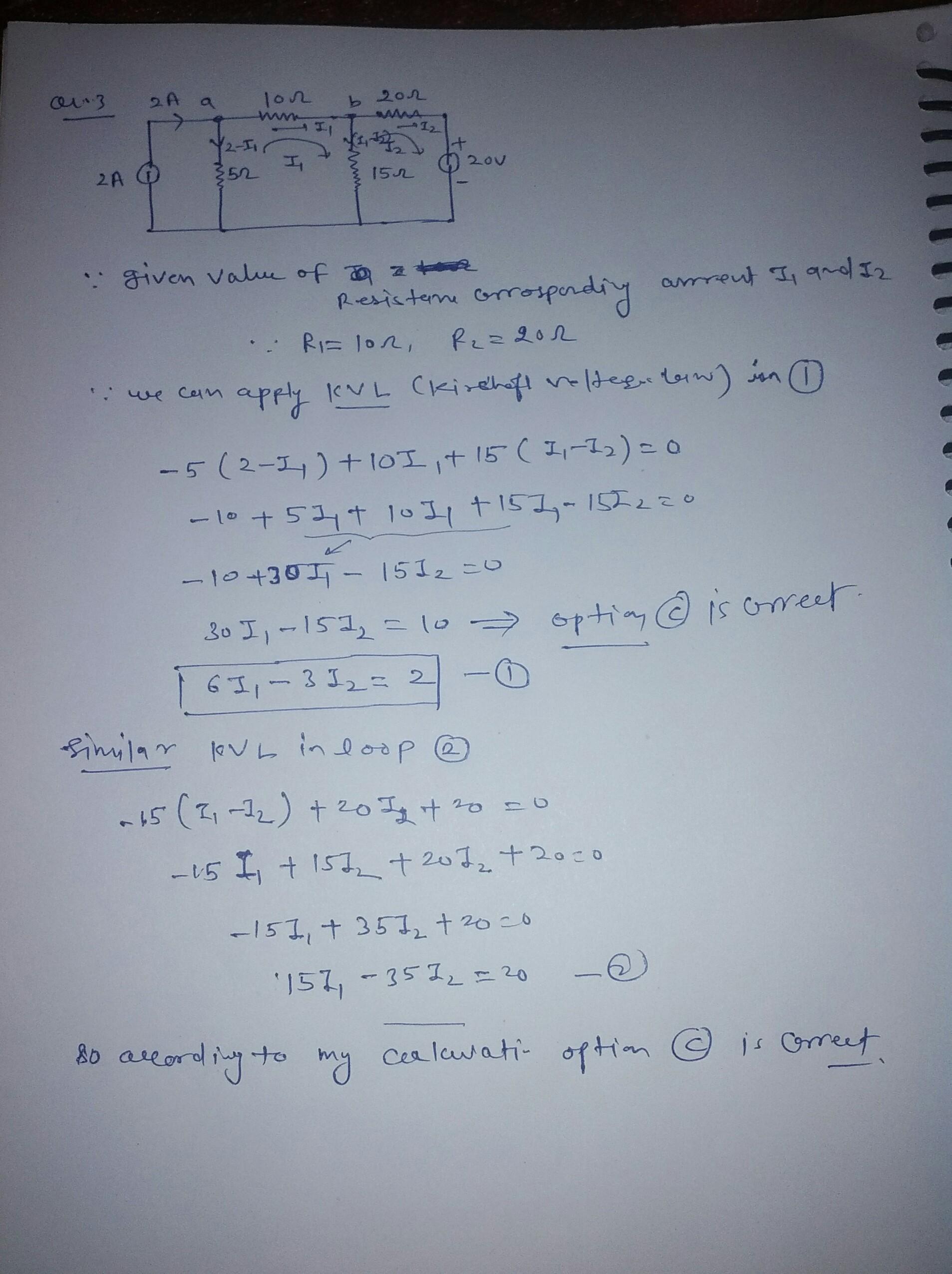

    • cropped-2060823991.jpg
    Likes(1) Reply(1)
    Chandra dhawan
    see attached file it's very helpful for you dear
  • Mahak thankyou
    option c is correct

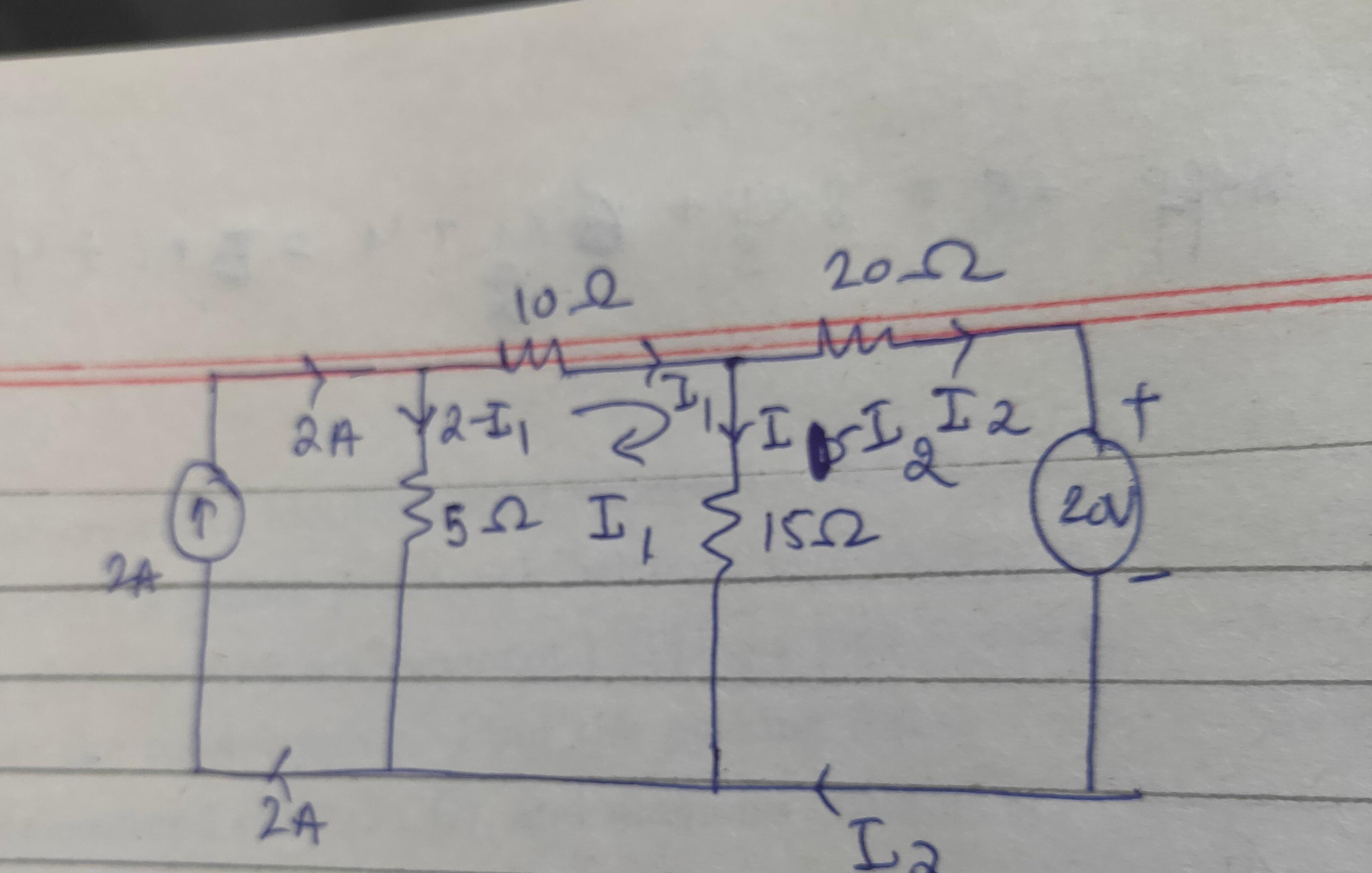

    • cropped8725903303412604896.jpg

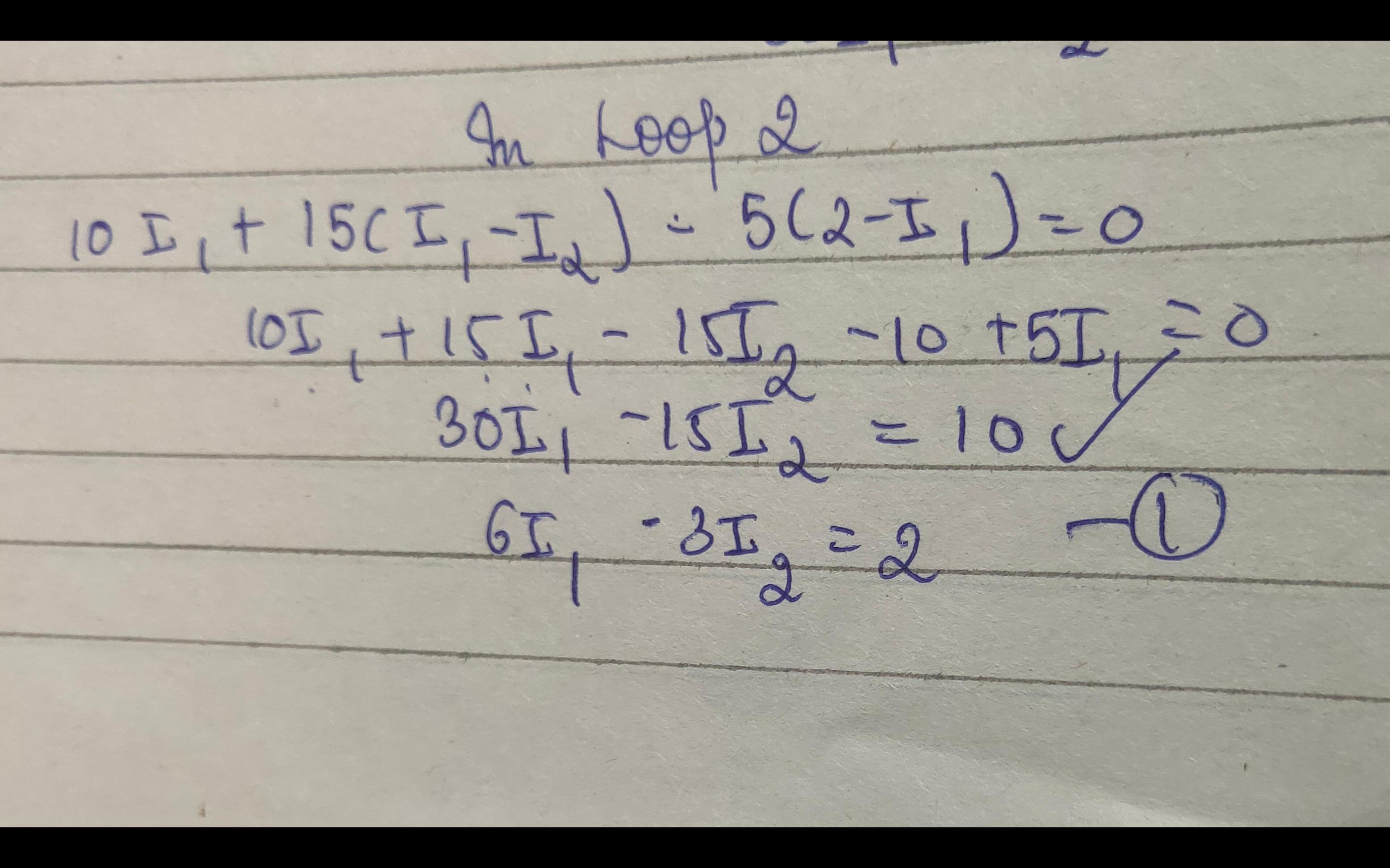

    • cropped4713057260718805115.jpg

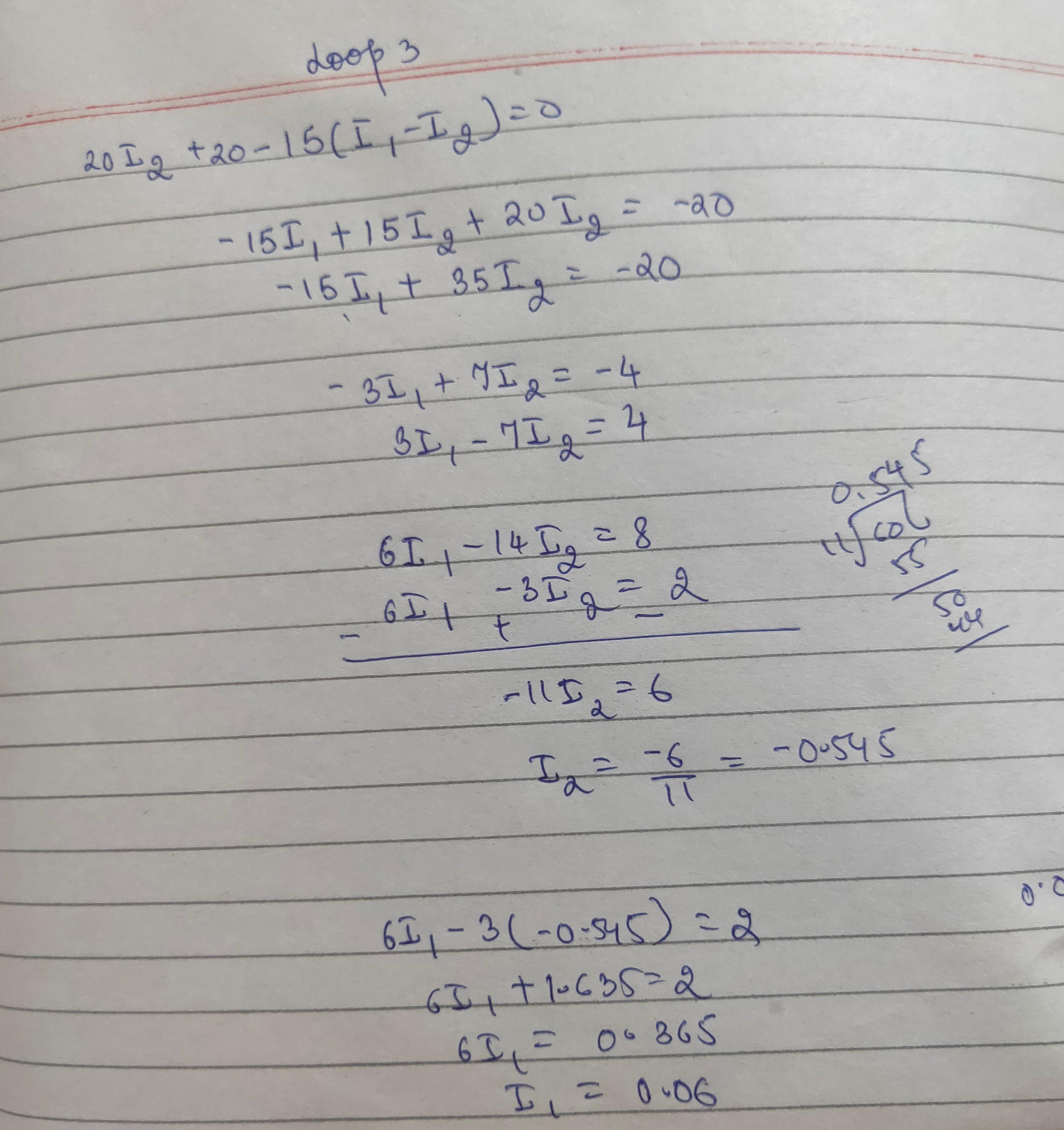

    • cropped7386574184506860871.jpg
    Likes(0) Reply(0)
  • Chandra dhawan
    I hope you got it
    Likes(1) Reply(0)
