Isha lohan Asked a Question
January 8, 2021 10:03 pmpts 30 pts
  • IIT JAM
  • Physics (PH)

Q47. a particle of charge tq is placed at a distance d fom two perpendicular infinite metal plates as shown in the figure below. the magnitude of total force ac

Q47. A particle of charge tq is placed at a distance d fom two perpendicular infinite metal plates as shown in the figure below. The magnitude of total force acting on the charge a) 4TE d + (b) 4TE2d (c) 2/2-1 77 77 4TE 8d (d) 0
  • 2 Answer(s)
Answer Now
  • like-1
  • 2 Likes
  • 2 Comments
  • Shares
  • Dhairya sharma thankyou

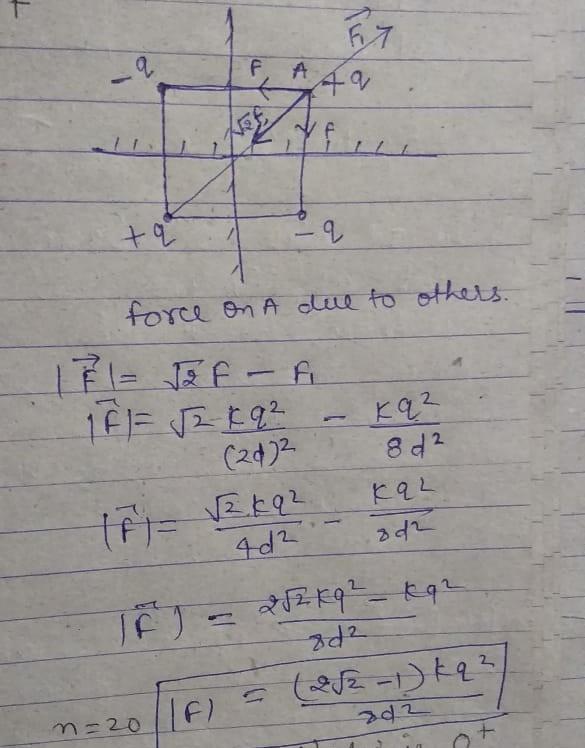

    correct option is c. see attached for solution
    • cropped7925212954020462829.jpg
    Likes(0) Reply(1)
    Dhairya sharma
    from the method of images
  • Rohit kumar gupta Best Answer

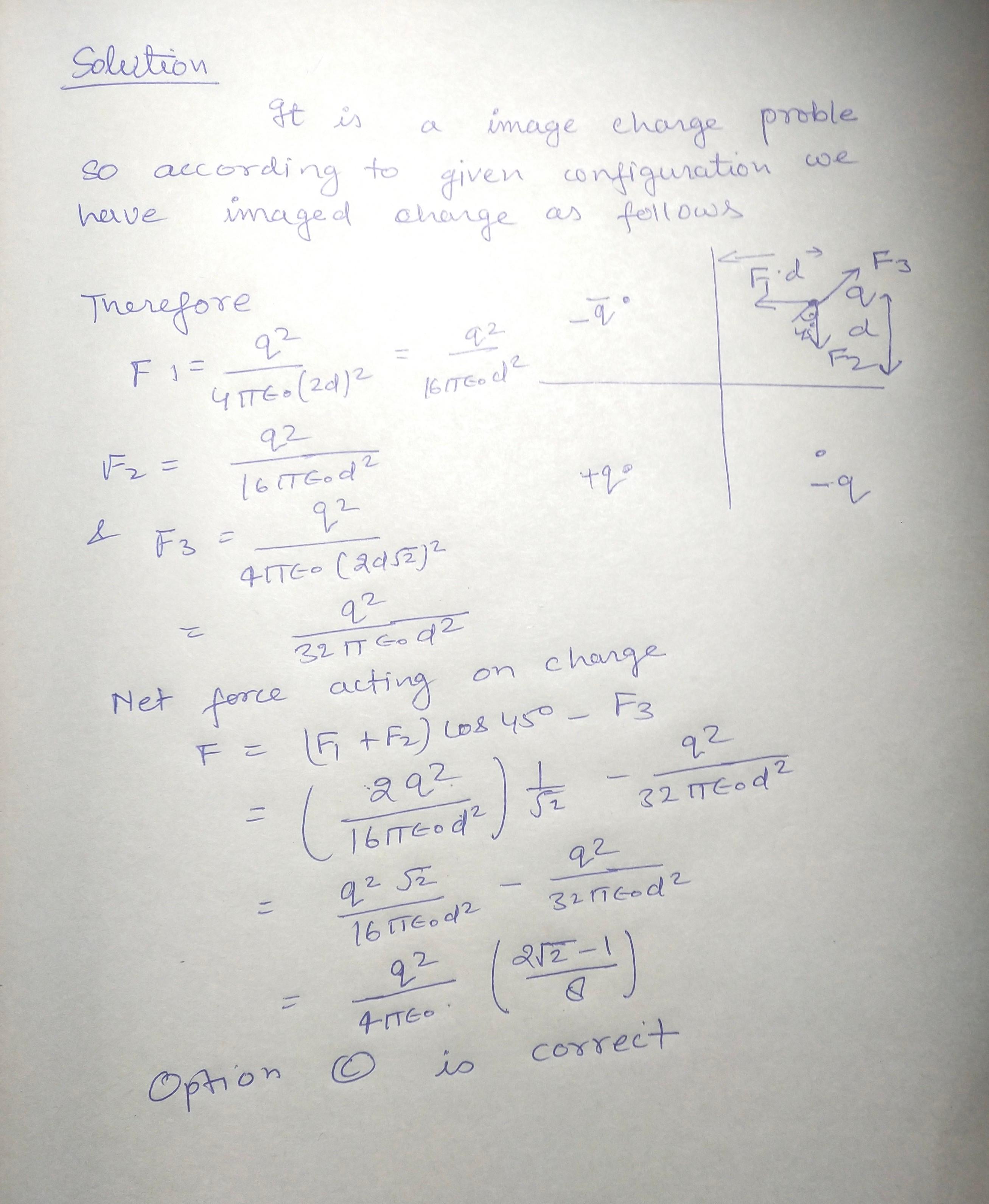

    Option c is correct See the attachment for solution
    • cropped582620591653197018.jpg
    Likes(1) Reply(2)
    Isha lohan
    will image charge also come in third quadrant? how in third quadrant? only two plates, so should it not be only two image charges?
