Q68. a germanium diode is operated at 20° c. a reverse bias of -1.5 v results in a current of 70 a. assuming that the temperature remains constant; the reverse

Q68. A germanium diode is operated at 20° C. A reverse bias of -1.5 V results in a current of 70 A. Assuming that the temperature remains constant; the reverse saturation current is approximately (a) 60 uA (b) 60 nA (c) 35 uA (d)-60 uA

3 Answer(s) Answer Now
  • 0 Likes
  • 3 Comments
  • 0 Shares
  • comment-profile-img>
    Abhishek singh best-answer

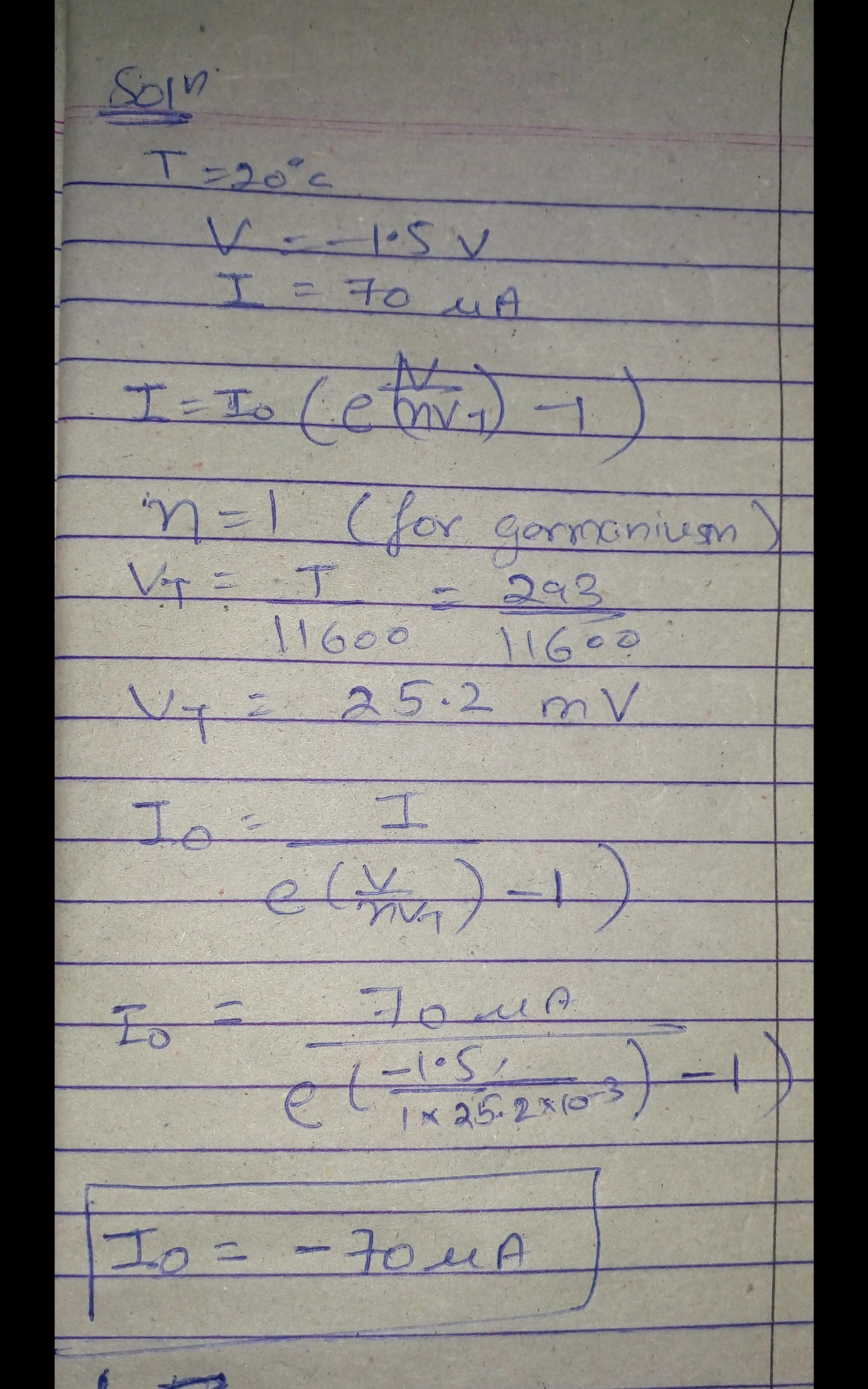

    You don't need to solve in case of reverse bias. you can directly answer in this case. unfortunately the options are not matching with the correct answer. please find attached.

  • comment-profile-img>
    Ruby negi best-answer

    options are wrong, correct ans is -70uA

    eduncle-logo-app

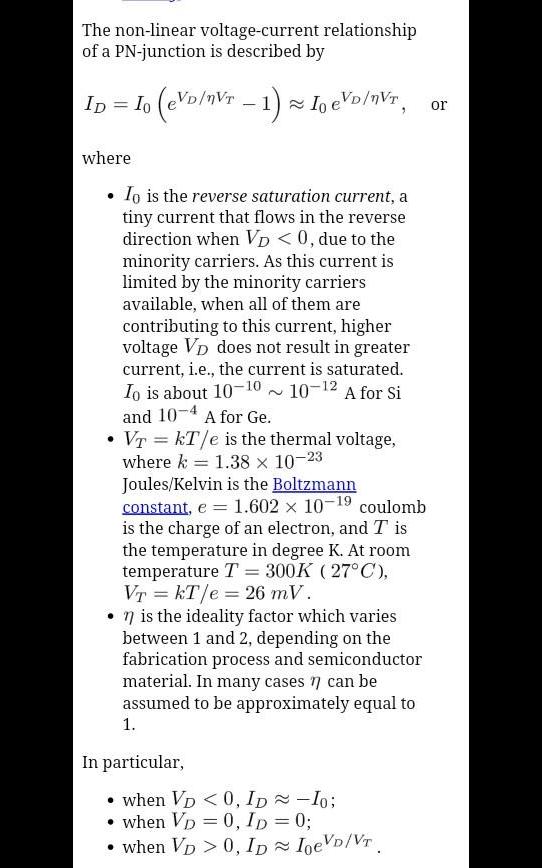

    look at the last third line of this attached page...

  • comment-profile-img>
    Shanu arora Best Answer

    ans: I am getting ans= -70uA , may be this option is missed or current (I) given is question has to be i=60uA ,so that option D matches with the answer, here n=1 is taken for germanium . feel free to ask doubts . best regards .
