Q68. during the charging of a capacitor c in a series rc circuit, the typical variations in the magnitude of the charge q(1) deposited on one of the capacitor p
Q68. During the charging of a capacitor C in a series RC circuit, the typical variations in the magnitude of the charge q(1) deposited on one of the capacitor plates, and the current it) in the circuit, respectively are best represented by Figl Fig. I Fig. IlI Fig.IV (a) Figure I and figure II (b Figure I and Figure IV (c) Figure III and figure II (d) Figure IlI and figure IV
1 Answer(s)
Answer Now
- 1 Likes
- 2 Comments
- 0 Shares
-
![comment-profile-img]()
>
-
![comment-profile-img]()
>
Saurabh 1
![best-answer]()

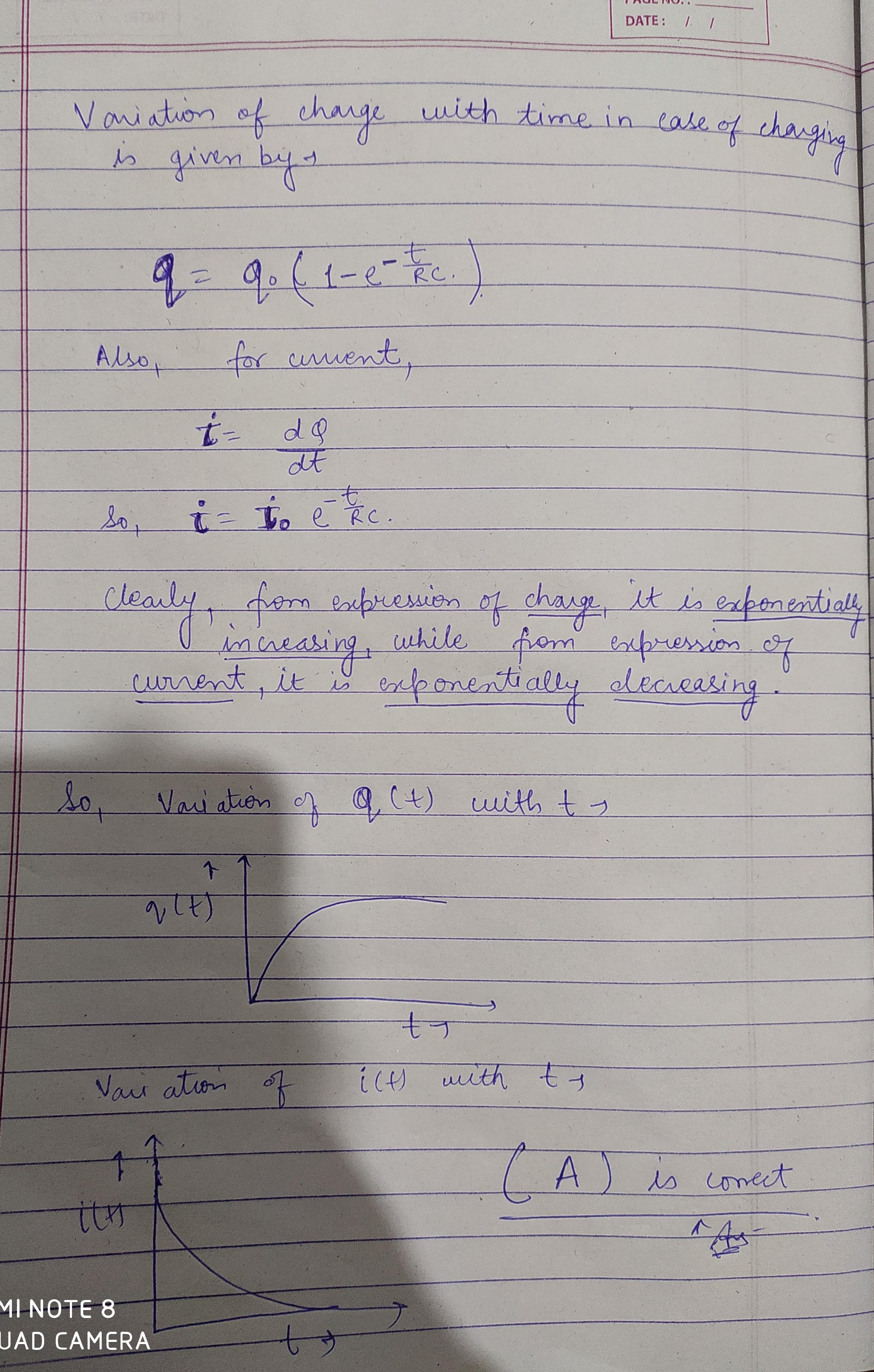

Correct figure for charge is Fig1 and for current it is Fig2.... So option A is correct..
