Q69. a 10 v battery, 250 2 resistor and a zener diode are connected in series such that the zener diode is reverse biased. if the zener breakdown voltage is 5 v
Q69. A 10 V battery, 250 2 resistor and a Zener diode are connected in series such that the Zener diode is reverse biased. If the Zener breakdown voltage is 5 V, the current flowing through this diode is (a) 40 mA (b) 20 mA (c) 25 mA (d) 10 mA
3 Answer(s)
Answer Now
- 0 Likes
- 3 Comments
- 0 Shares
-
![comment-profile-img]()
>
-
![comment-profile-img]()
>
Shanu arora
![best-answer]()

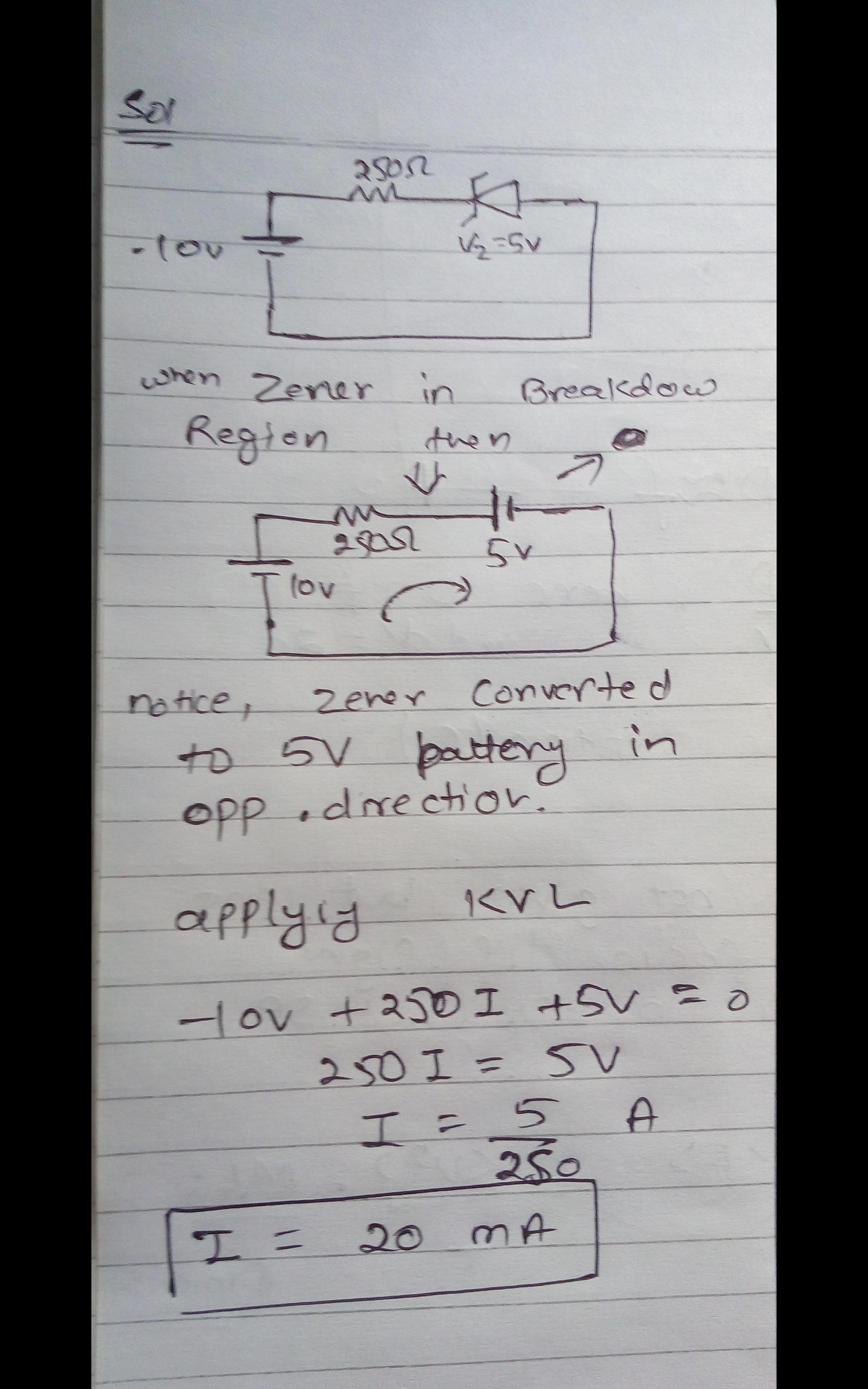

answer is option B : 20mA , the important point to notice here is that when zener works in breakdown region ( as a voltage regulator) then it becomes a constant voltage battery with opposite polarity ( n of diode becomes positive of battery ) ,also notice this is opposite manner in which a simple diode becomes battery when in forward bias. feel free for any doubts .
![cropped1682952293.jpg]()
-
![comment-profile-img]()
>
Ruby negi Best Answer

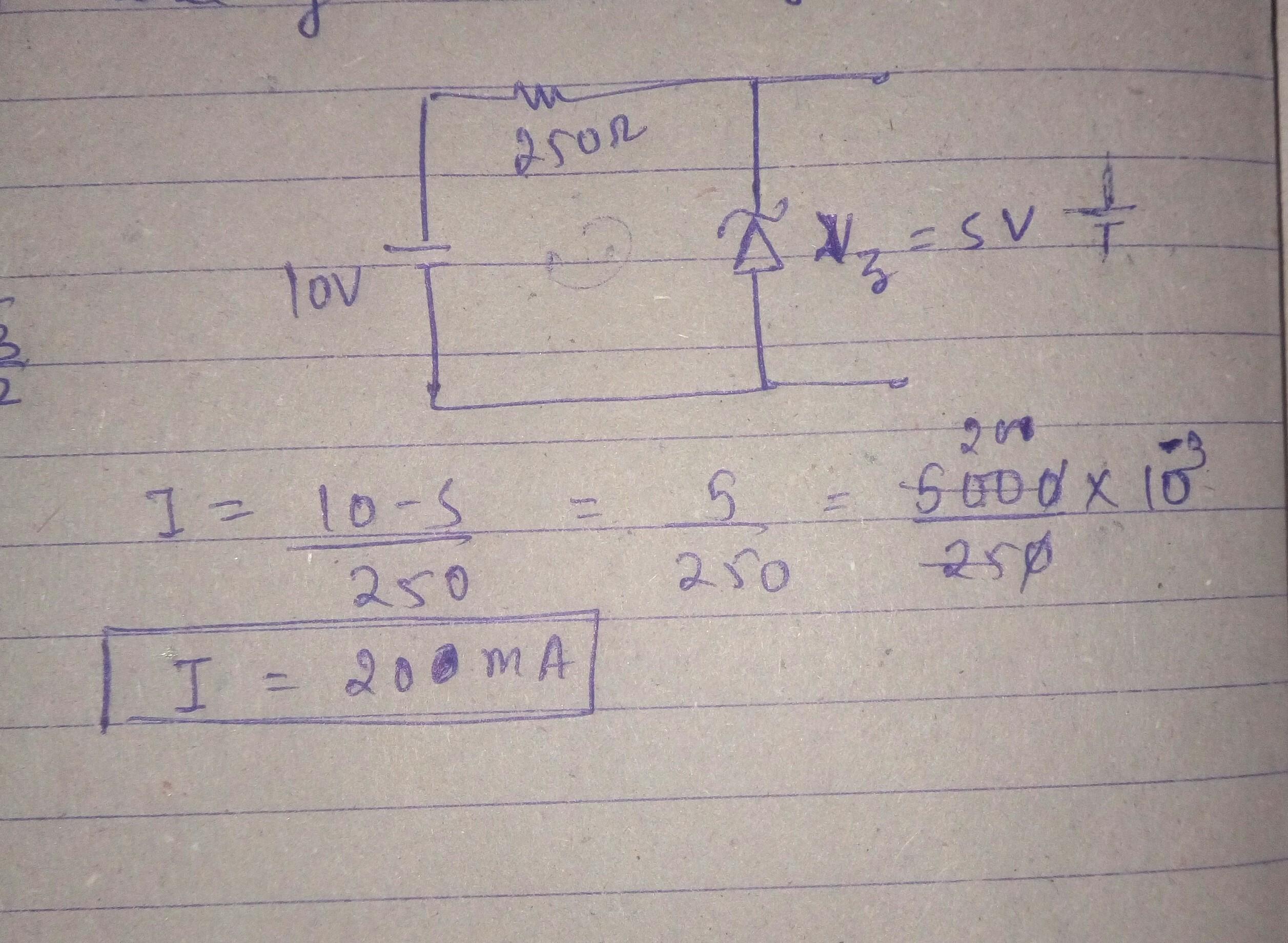

ans is 20mA
![cropped-1146671721.jpg]()
Do You Want Better RANK in Your Exam?
Start Your Preparations with Eduncle’s FREE Study Material
- Updated Syllabus, Paper Pattern & Full Exam Details
- Sample Theory of Most Important Topic
- Model Test Paper with Detailed Solutions
- Last 5 Years Question Papers & Answers
Sign Up to Download FREE Study Material Worth Rs. 500/-
Abhishek singh![best-answer]()

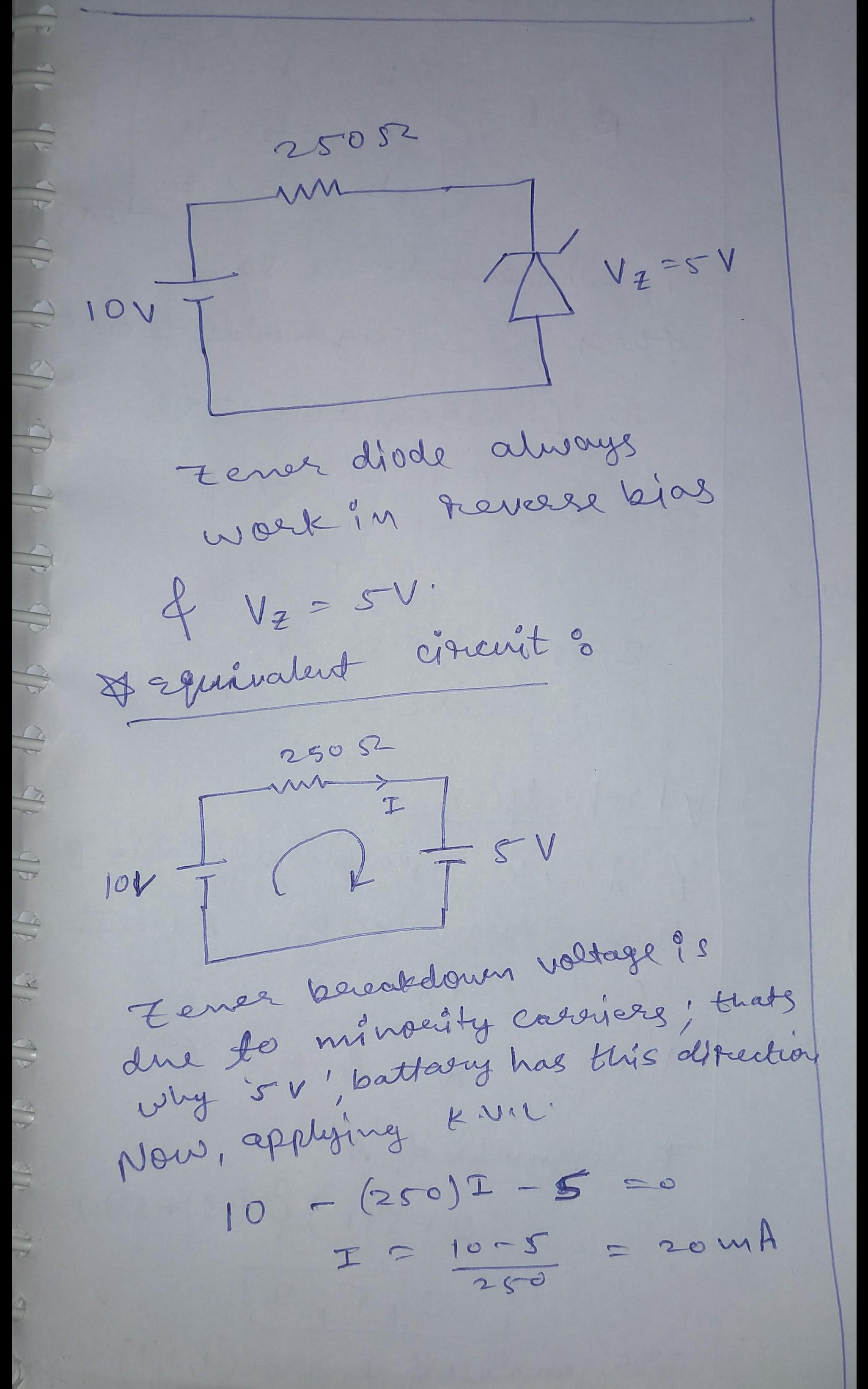

Option B is correct. Solution attached. Do ask doubts if any. Best regards.
