Anukruti posted an Question
August 05, 2020 • 03:53 am 30 points
  • IIT JAM
  • Geology (GG)

Question..

2 Answer(s) Answer Now
  • 1 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Sajan sarthak best-answer

    16 degree is the plunge amount

    eduncle-logo-app

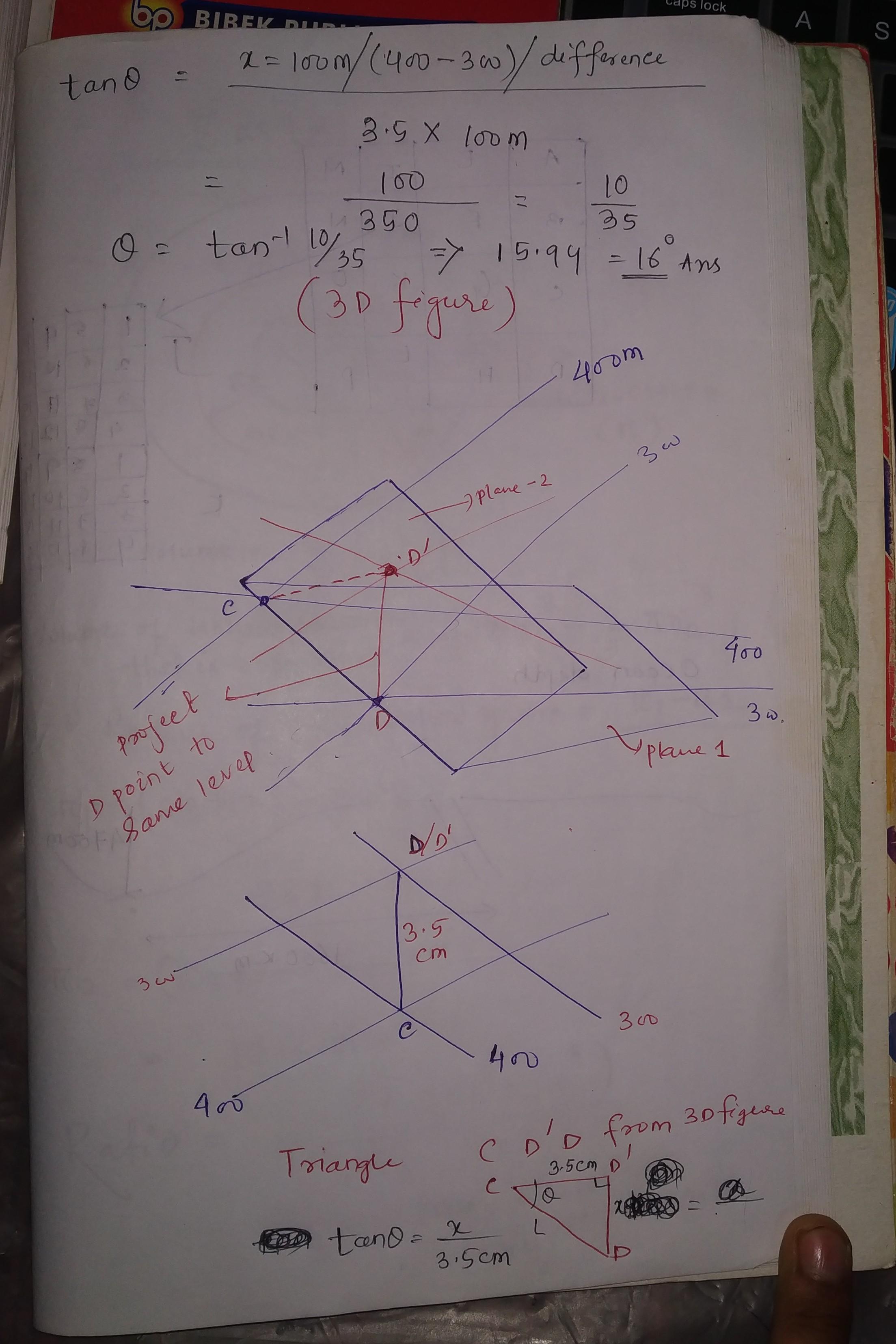

    the first figure of 3d it was messy.

    eduncle-logo-app

    please see carefully . It will build the understanding!!

  • comment-profile-img>
    Rahul kumar Best Answer

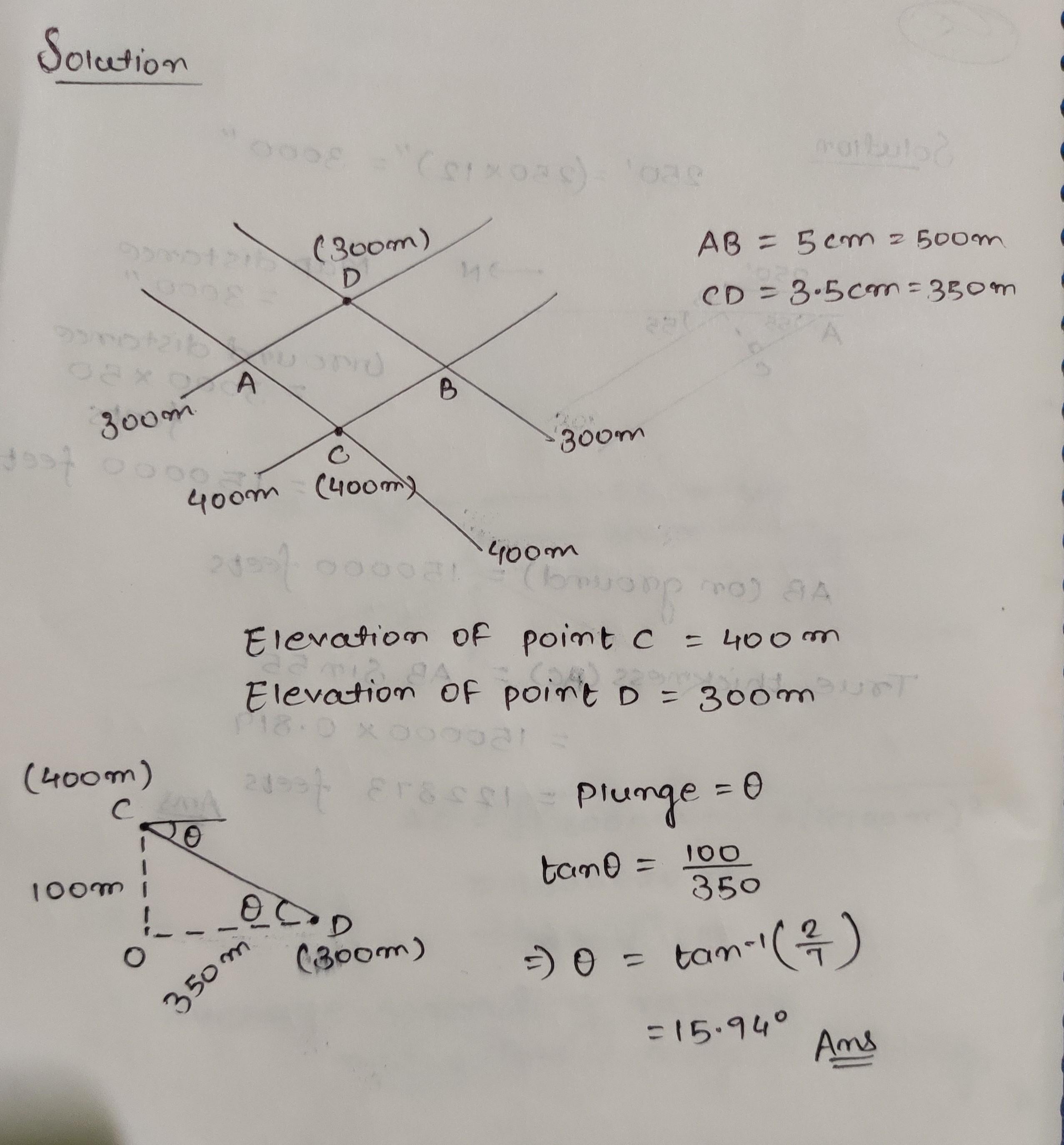

    Ans: Plunge= 15.94 degrees. Please see the attached solution.

    eduncle-logo-app

    explain this again to me

    eduncle-logo-app

    Intersection points (C and D) of equal height contour lines will give the points on the fold axes. Point C and D lying on the fold axes with elevations of 400m and 300m respectively. The horizontal distance between point C and D is given (3.5cm = 350m). By considering 350m as Horizontal equivalent and 100m (400m - 300m) as vertical Interval, you can find the plunge amount of fold axes.

    eduncle-logo-app

    why points A and B are not used instead of c and d.?a and b are also intersection points

    eduncle-logo-app

    Yes, but A and B are not used because they are formed by the intersection of different height contour (300m and 400m). Since height of point A and B is not known (either 300m or 400m), you can not use them.

    eduncle-logo-app

    understood sir

    eduncle-logo-app

    thank u
