Anukruti posted an Question
October 30, 2020 • 02:22 am 30 points
  • IIT JAM
  • Geology (GG)

Question below

2 Answer(s) Answer Now
  • 1 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Sajan sarthak Best Answer

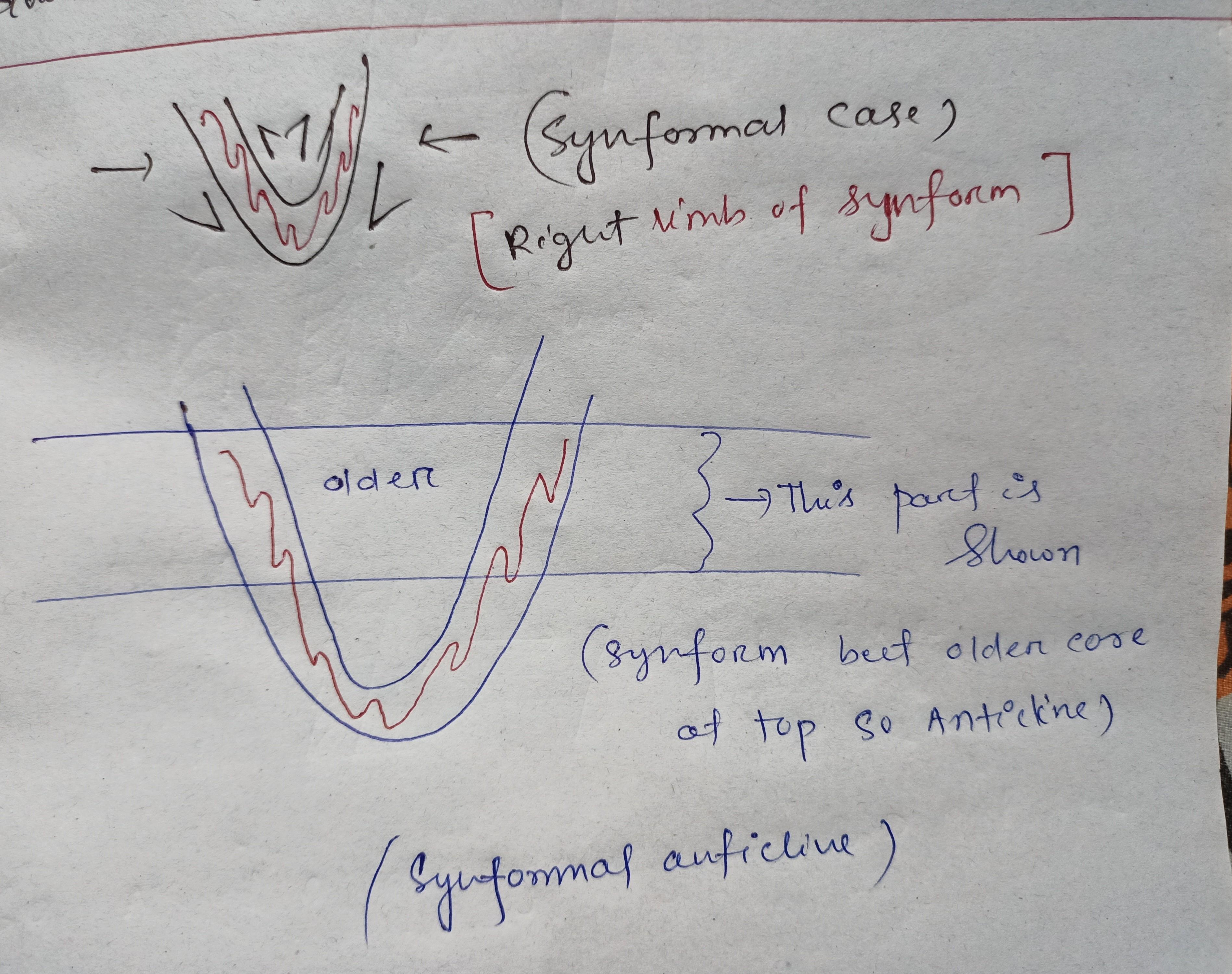

    See the figure below. synformal anticline and. a synform also

  • comment-profile-img>
    Rahul kumar best-answer

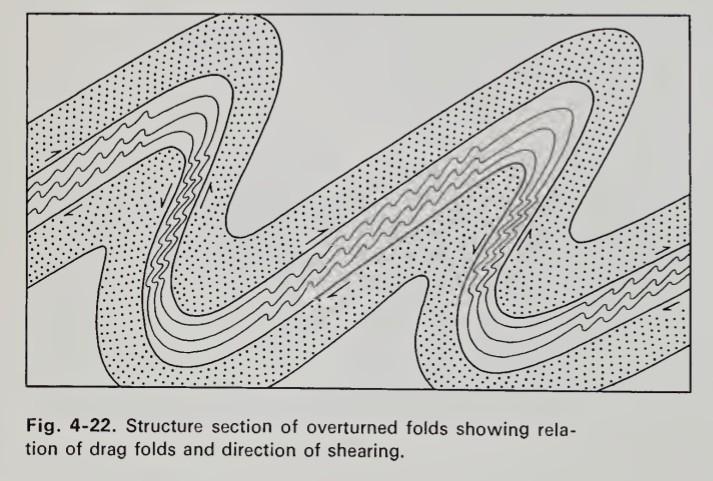

    Answer (C) Synformal Anticline The given structure is showing a synformal anticline. The overturned direction of drag folds is indicating that it's a synform (refer to the attached figure). Older bed is lying in the core of the fold so it is an Anticline. The combined terminology will give the Answer i.e. synformal anticline.
