Question below
2 Answer(s)
Answer Now
- 1 Likes
- 3 Comments
- 0 Shares
-
![comment-profile-img]()
>
-
![comment-profile-img]()
>
Sajan sarthak Best Answer

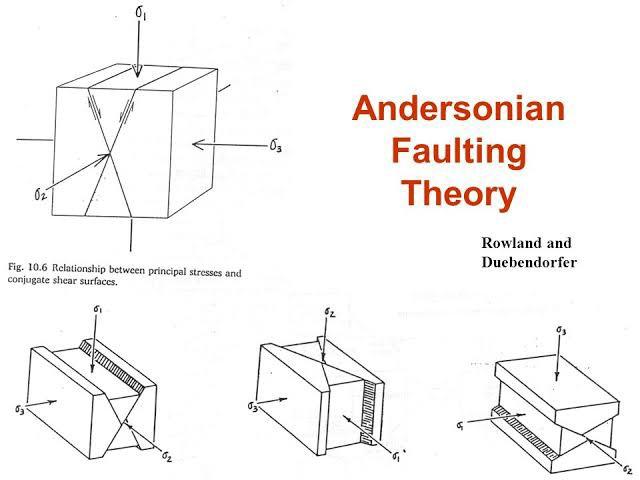

From Andresons theory of conjugate faulting fracture or fault developes perpendicular to sigma 3 and lies in a plane containing sigma 1 and sigma 2. So the strike of both conjugate fault will develop parallel to NW - SE because the orientation of sigma 3 is NE so perpendicular to it ,both will develope. In case of conjugate faulting the fault is at high angle to sigma 3 Possible answer is option D. Figure below for reference
![cropped8098646035408479869.jpg]()
-
![comment-profile-img]()
>
Rahul kumar
![best-answer]()

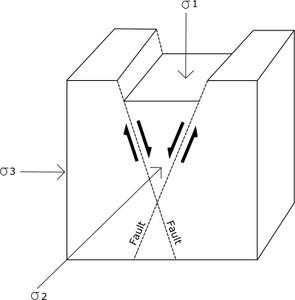

Answer: (D) Both fault strikes NW-SE Strike of conjugate faults remain same (dip direction of conjugate faults are opposite). Strike of conjugate Fault will be perpendicular to the sigme-3 direction. Here, in the diagram the sigma-3 direction is towards NE, so the strike of conjugate faults should be towards NW-SE. Please see the diagram attached below.
![cropped7178812524239815088.jpg]()
![eduncle-logo-app]()
sir answer is D.other tutor said same option D
Do You Want Better RANK in Your Exam?
Start Your Preparations with Eduncle’s FREE Study Material
- Updated Syllabus, Paper Pattern & Full Exam Details
- Sample Theory of Most Important Topic
- Model Test Paper with Detailed Solutions
- Last 5 Years Question Papers & Answers
Sign Up to Download FREE Study Material Worth Rs. 500/-
Rahul kumar
Yes Anukriti. Strike will be same but the dip direction will be opposite. I have updated the Answer. Please see that.
