Question below

Two-point A and B present on an inclined bed at a height of 200m and 400m respectively. If the linear distance between the two plane is 100m, then calculate the dip from A to B.
  • 2 Answer(s)
Answer Now
  • like-1
  • like-1
  • 2 Likes
  • 3 Comments
  • Shares
  • Sajan sarthak sahoo Best Answer
    dip is 63 degree

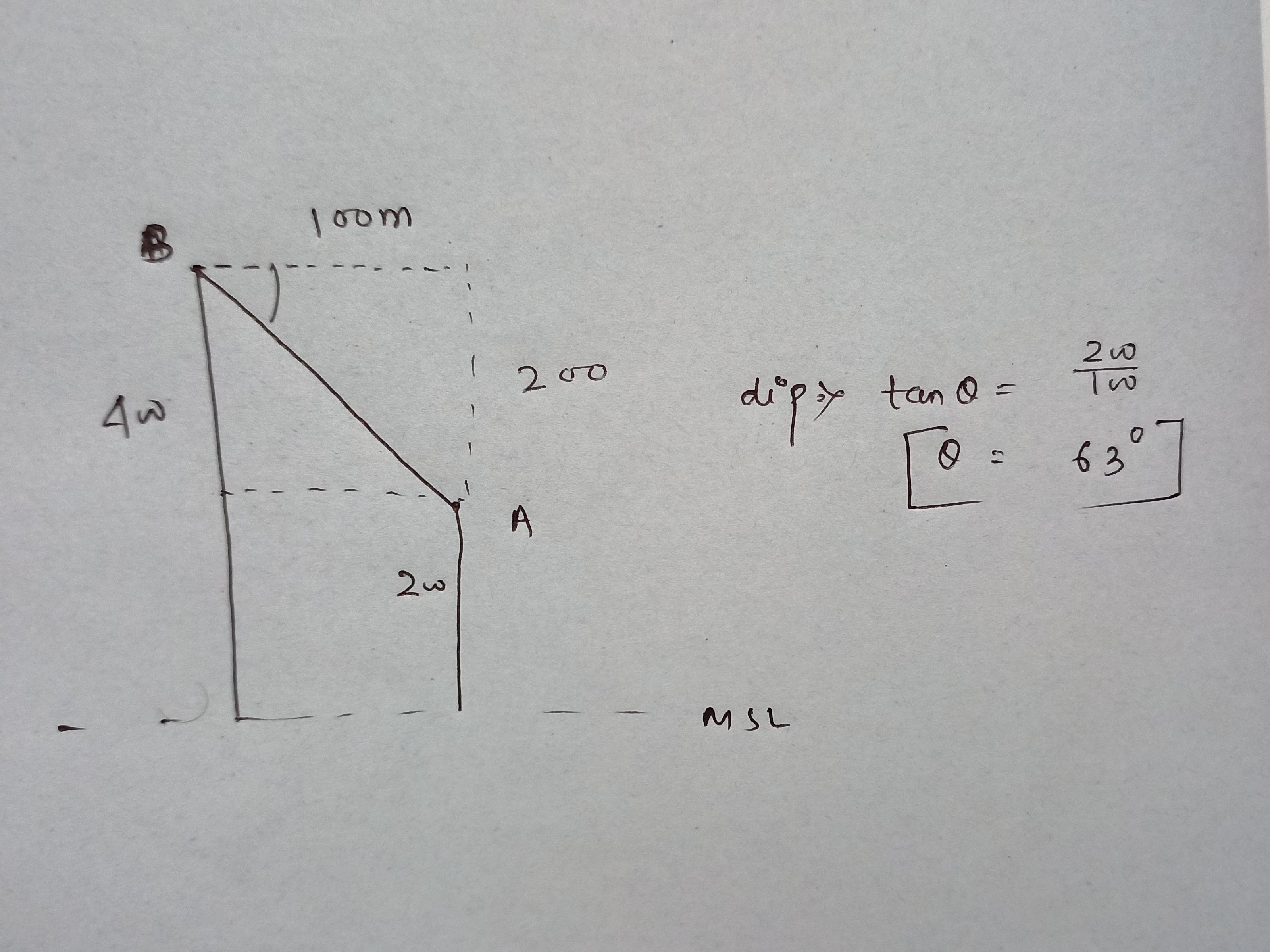

    • cropped2710237948848624783.jpg
    Likes(0) Reply(0)
  • Rahul pandey
    I saw your comment on this question. Linear distance means the base line (as per your Diagram). You can't calculate Sin(dip)= 200/100 =2; (because it is not possible to get the val...
    Show more
    Likes(1) Reply(4)
    Anukruti
    if aerial distance is asked between 2points?that is also linear distance
  • Rahul pandey thankyou
    Answer: Dip= 63.435° tan(dip) = Vertical Interval / Horizontal equivalent Given, Vertical Interval = 400m - 200m = 200m Horizontal equivalent = 100m tan(dip) = 200m/100m Dip =...
    Show more
    Likes(2) Reply(0)
