Anukruti posted an Question
October 22, 2020 • 01:46 am 30 points
  • IIT JAM
  • Geology (GG)

Question below

2 Answer(s) Answer Now
  • 1 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Rahul kumar best-answer

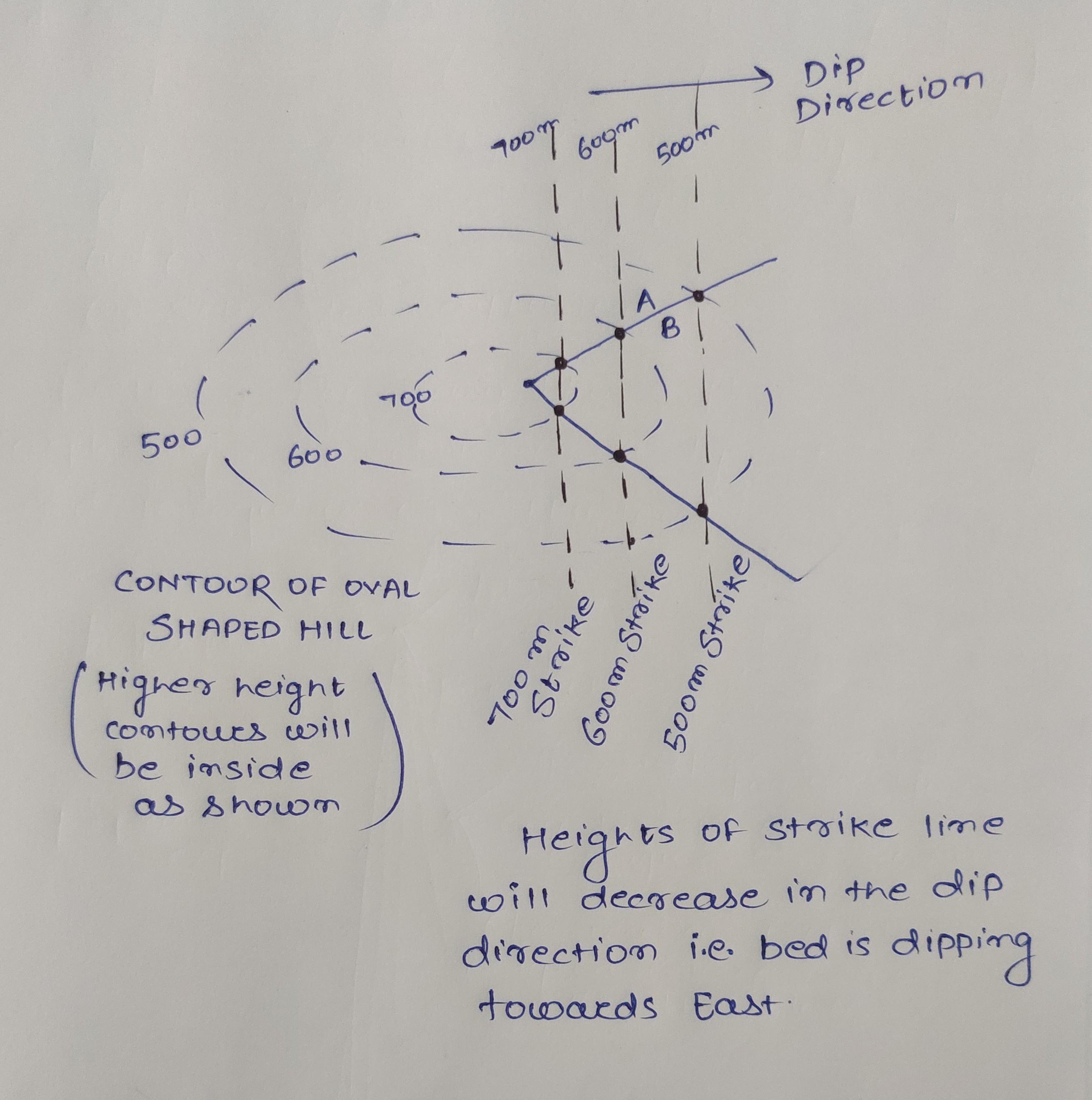

    Answer: (C) Dip towards east See the attached figure for detailed solution. Please ask if you have any further doubts.

    eduncle-logo-app

    thank u sir

    eduncle-logo-app

    Strike is the line of equal elevation and towards the dip direction the strike elevation decrease because bed will be found at lower depths towards the dip direction.

    eduncle-logo-app

    Please feel free to ask if you have any further queries related to such things. I will be happy to clear your doubts and will try my best to make you understand.

  • comment-profile-img>
    Sajan sarthak Best Answer

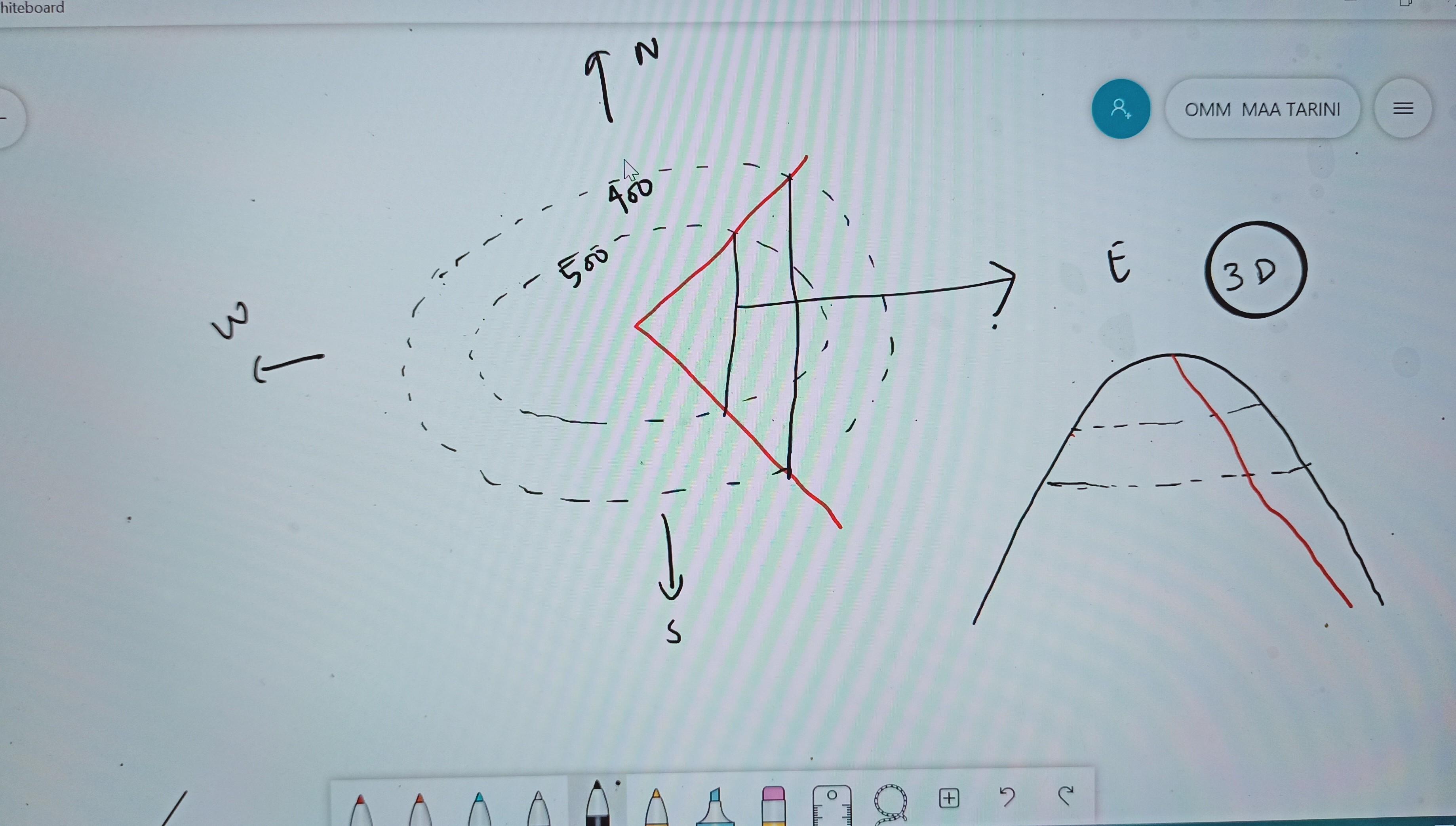

    Dipping east as the contact of bed A and B i.e V shaped will have strike lines drawn Right from top to bottom . As this is a hill and ovalrounded inshape so bed strike line like 500 to 400 if u take 100 interval will be Easter pointing.
