Anukruti posted an Question
October 28, 2020 • 04:49 am 30 points
  • IIT JAM
  • Geology (GG)

Question below

2 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Rahul kumar best-answer

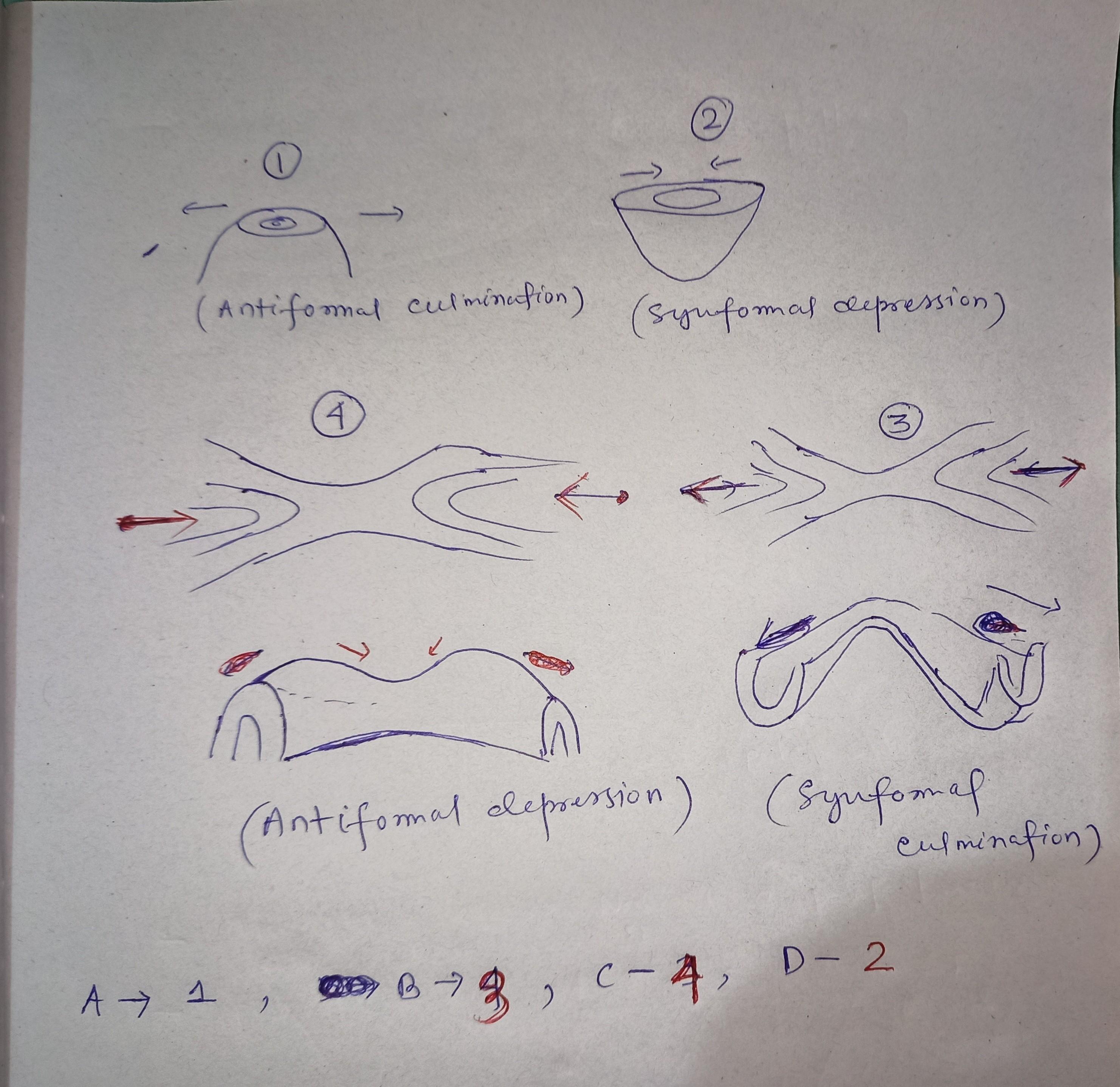

    Answer (D) A-1, B-3, C-4, D-2 The arrow is indicating the plunge direction of the fold axis. Diagram A is indicating doubly plunging antiform which makes culmination at the centre. Diagram B is representing double plunging synform with depression at the central part. Diagram C is indicating antiform with depression at the central point (Dip Direction on either side of depression is towards each other which will cause depression in the central point). Similarly, diagram D is indicating synform with culmination (Higher elevation at the central point).
