Anukruti posted an Question
August 09, 2020 • 00:20 am 30 points
  • IIT JAM
  • Geology (GG)

Question(figure)

2 Answer(s) Answer Now
  • 0 Likes
  • 3 Comments
  • 0 Shares
  • comment-profile-img>
    Sajan sarthak best-answer

    20 towards 225

    eduncle-logo-app

    can u explain me again

    eduncle-logo-app

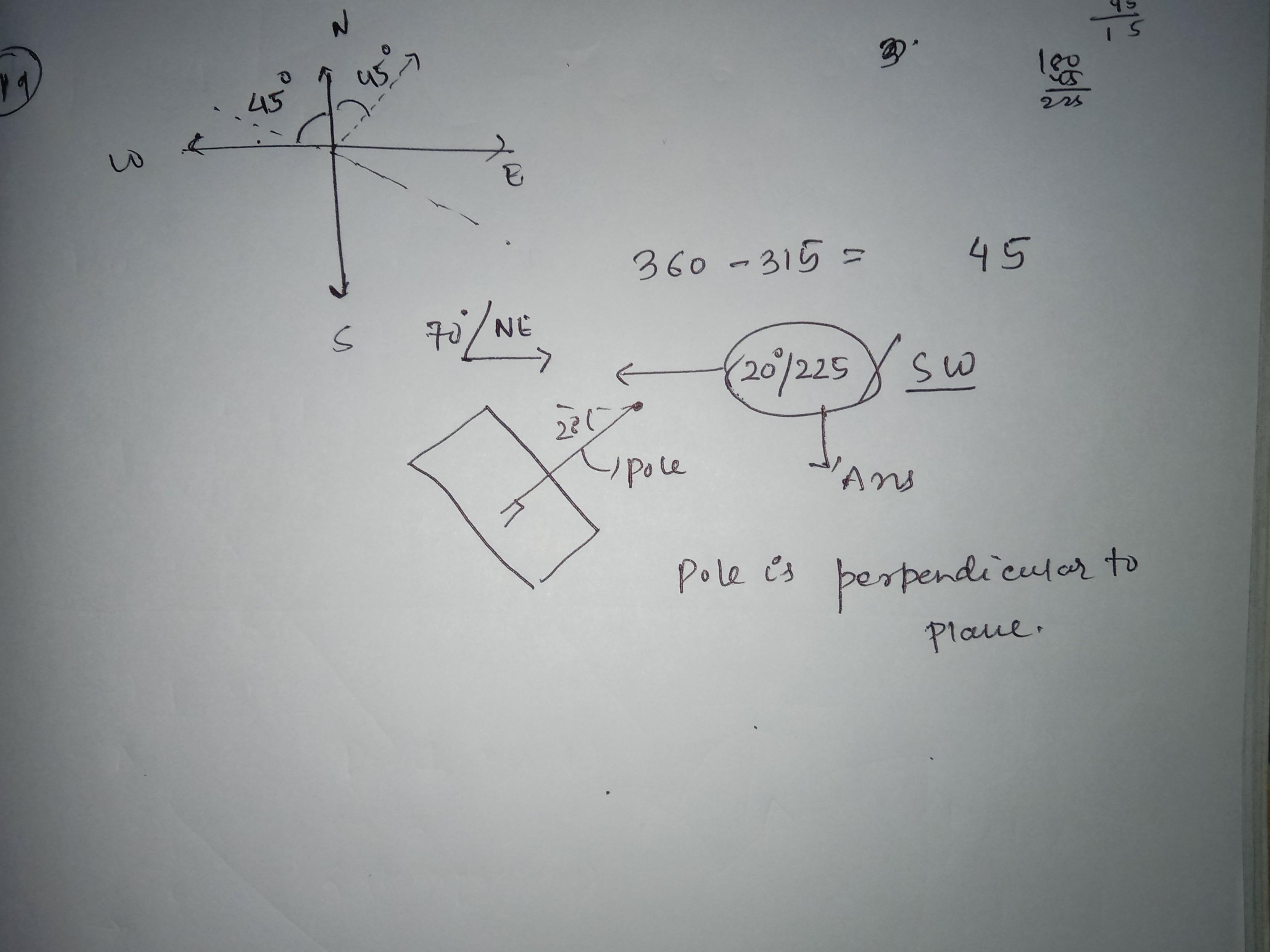

    if plane is dipping 70 degree then pole must dip 20 degree in opposite direction as the plane dip direction...because plane and pole has a perpendicular relationship so if you imagine a traingle right angle then plane and pole has the angles whose summation should be also 90°.

    eduncle-logo-app

    thanks.

    eduncle-logo-app

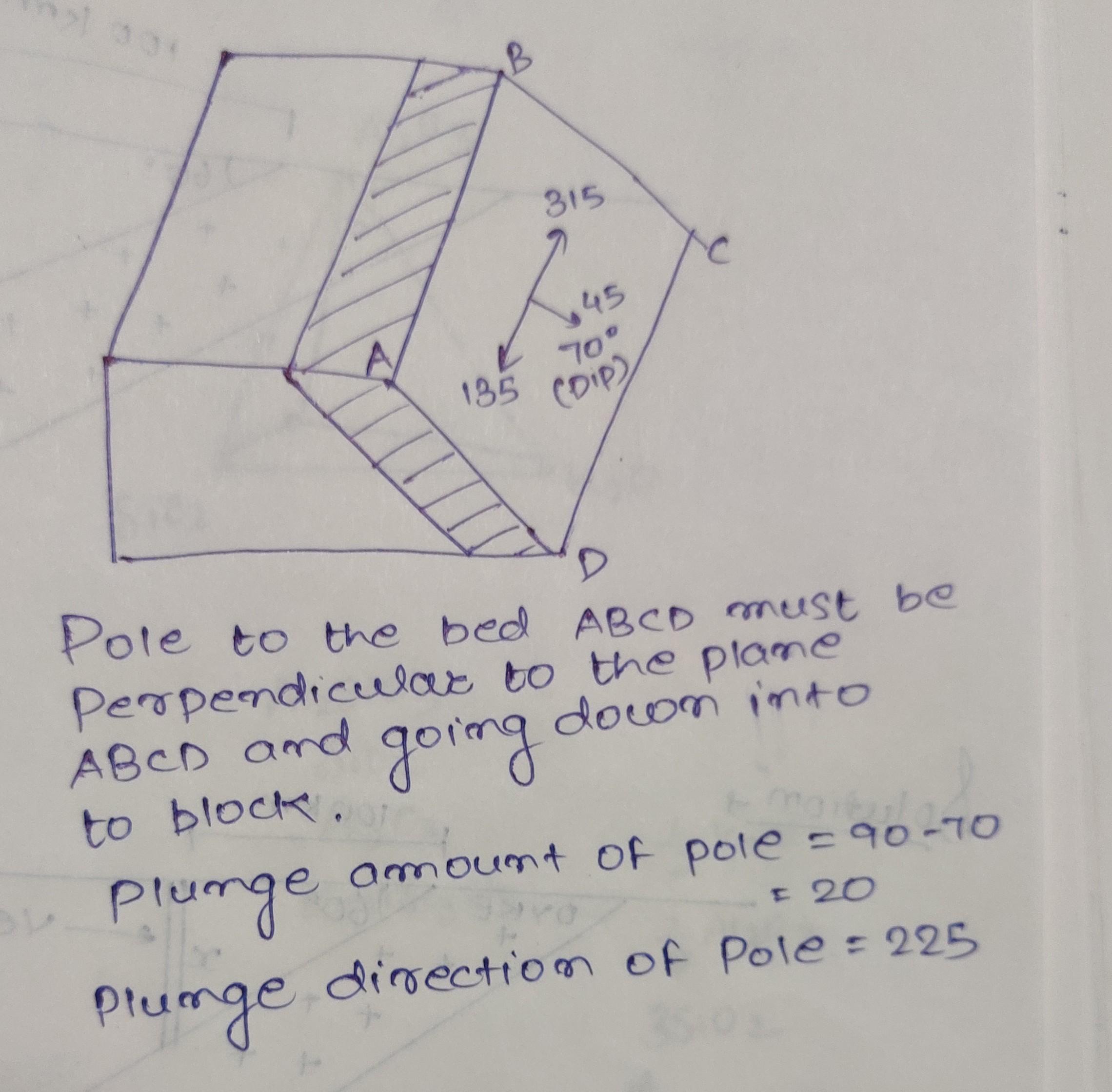

    Anu please go through these diagram

  • comment-profile-img>
    Rahul kumar Best Answer

    Answer (C) 20 towards 045. Pole is defined as a line perpendicular to the bed. The dip direction of bed will be the direction (or bearing) of pole. (90 - dip amount of bed) will be the plunge of the pole. So the correct answer should be 20 towards 045

    eduncle-logo-app

    A minor change in the answer. It should be 20 towards 225. The bearing of pole will be directly opposite to that of the bedding plane because every structural features goes down into surface.

    eduncle-logo-app

    please explain again

    eduncle-logo-app

    Pole bearing will be perpendicular to the strike direction (315) of the bed. Two possible direction perpendicular to 315 are 045 and 225. Now the bearing will be in the direction opposite to the dip direction of the bed so the bearing will be towards 225. Plunge amount of the pole will be (90-dip amount of bed)
