Anukruti posted an Question
September 08, 2020 • 00:59 am 30 points
  • IIT JAM
  • Geology (GG)

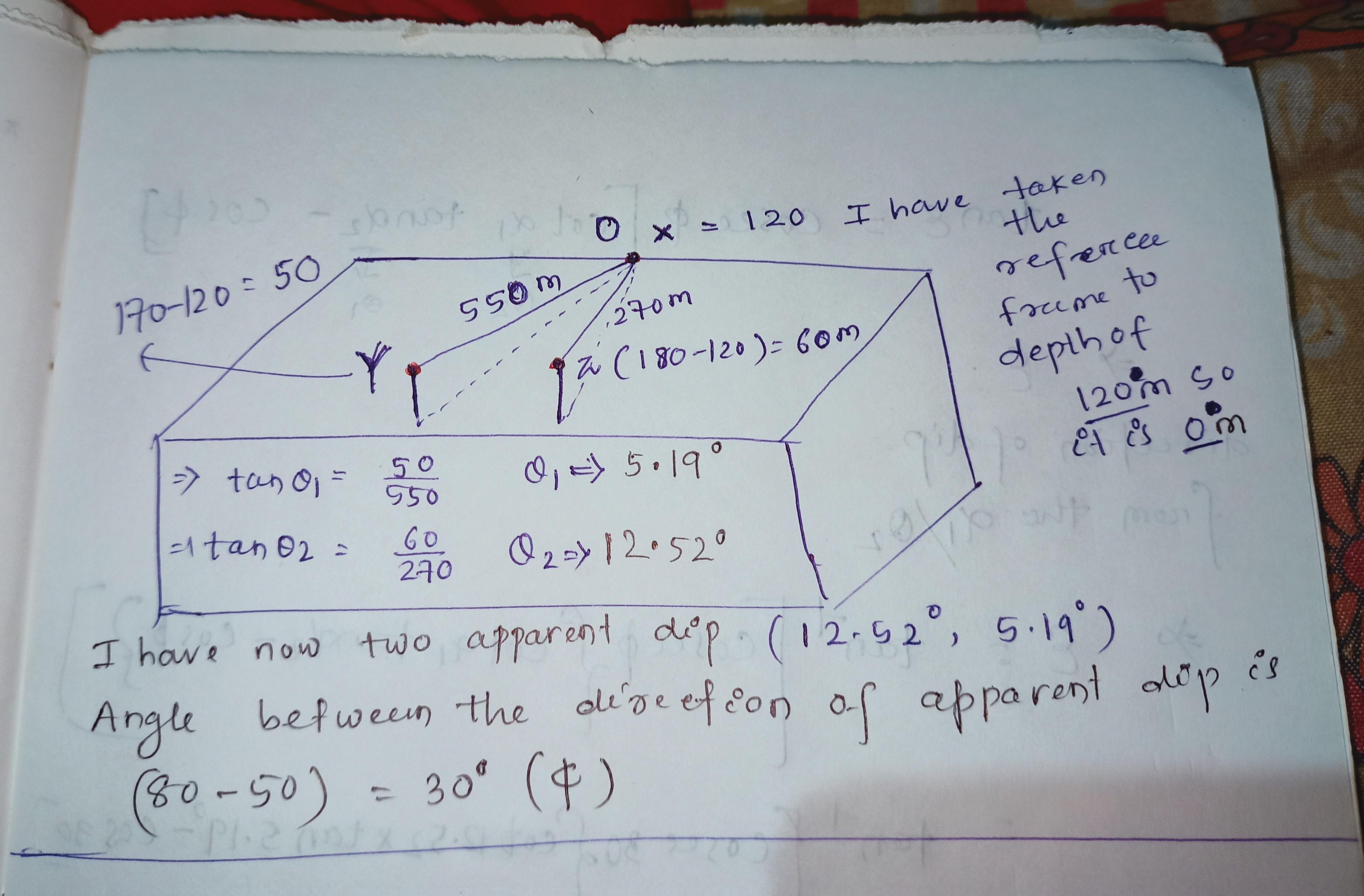

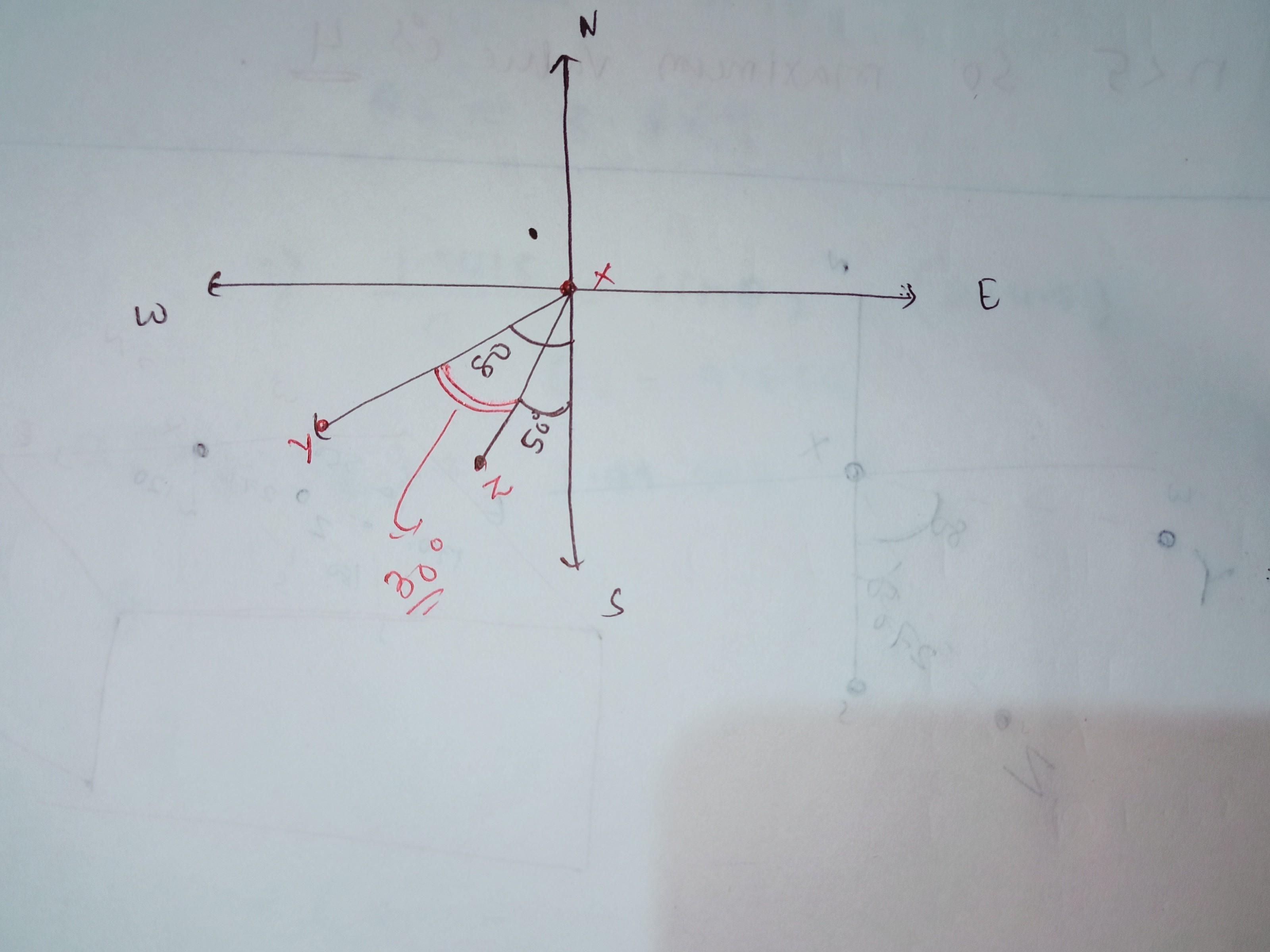

Question(figure attached)

1 Answer(s) Answer Now
  • 1 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Rahul kumar

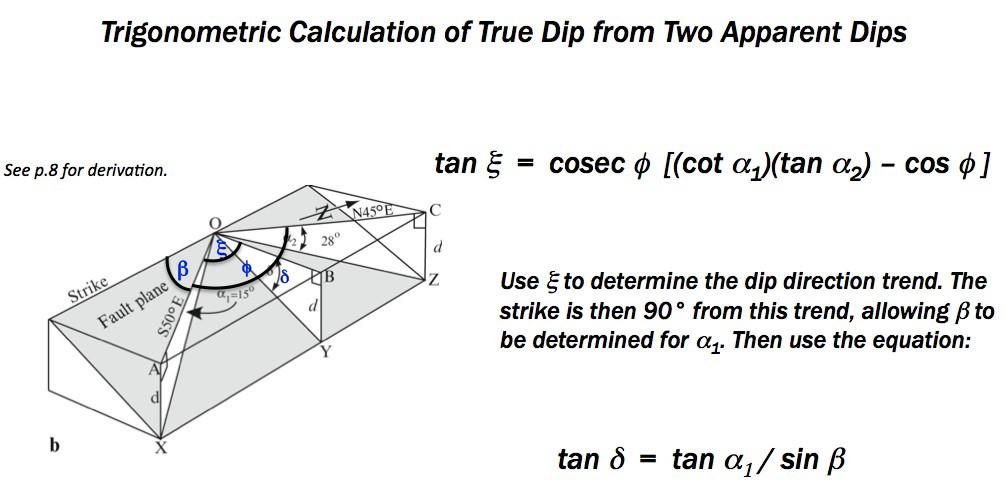

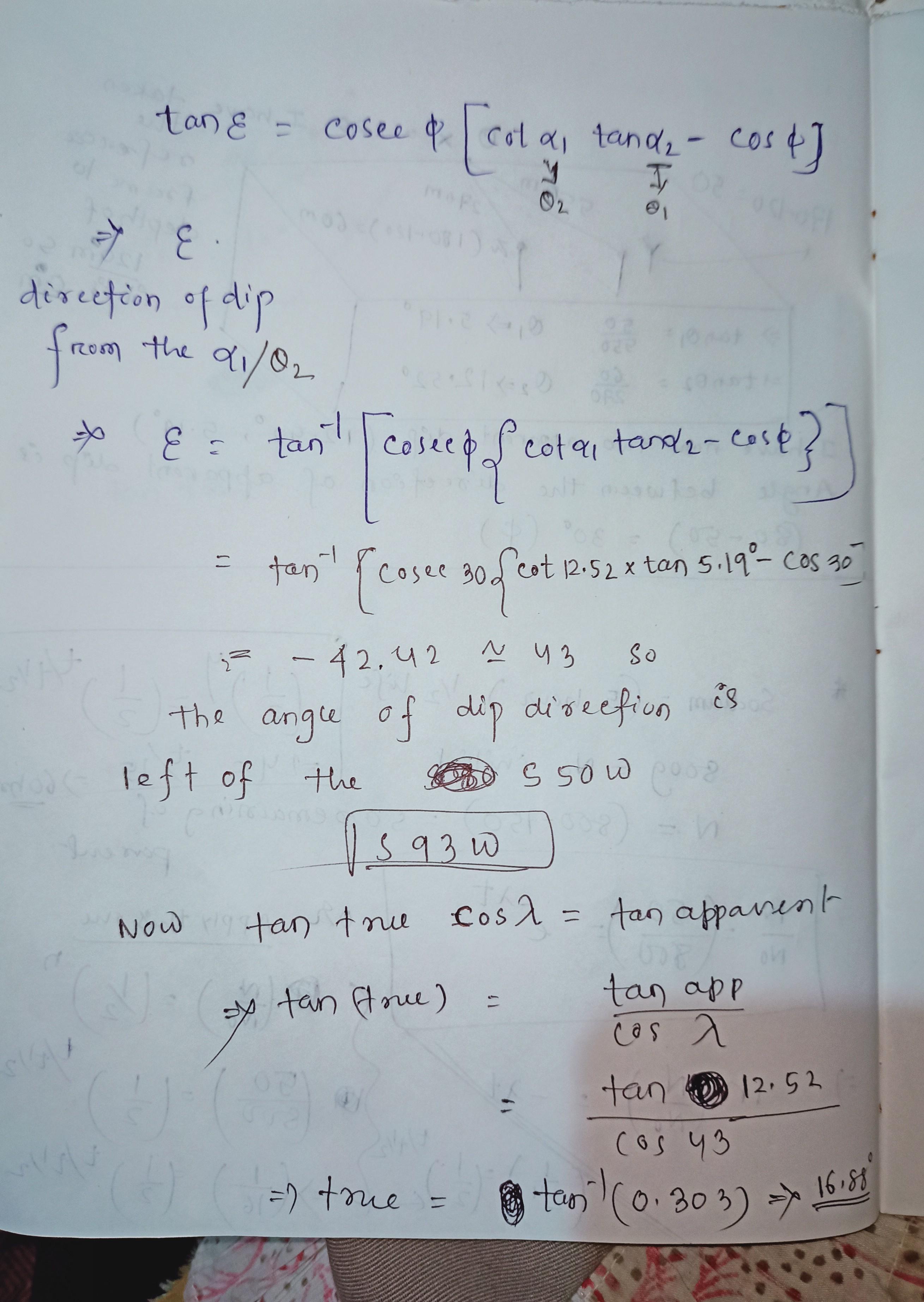

    Dear student, this question can be solved on graph sheet. You need to draw strike line of different altitudes by using given data. When you will have the strike line; you can calculate the true dip amount and value by using Horizontal interval and vertical index (difference of strike values).
