Anukruti posted an Question
August 07, 2020 • 01:47 am 30 points
  • IIT JAM
  • Geology (GG)

Question (in diagram)

2 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Rahul kumar best-answer

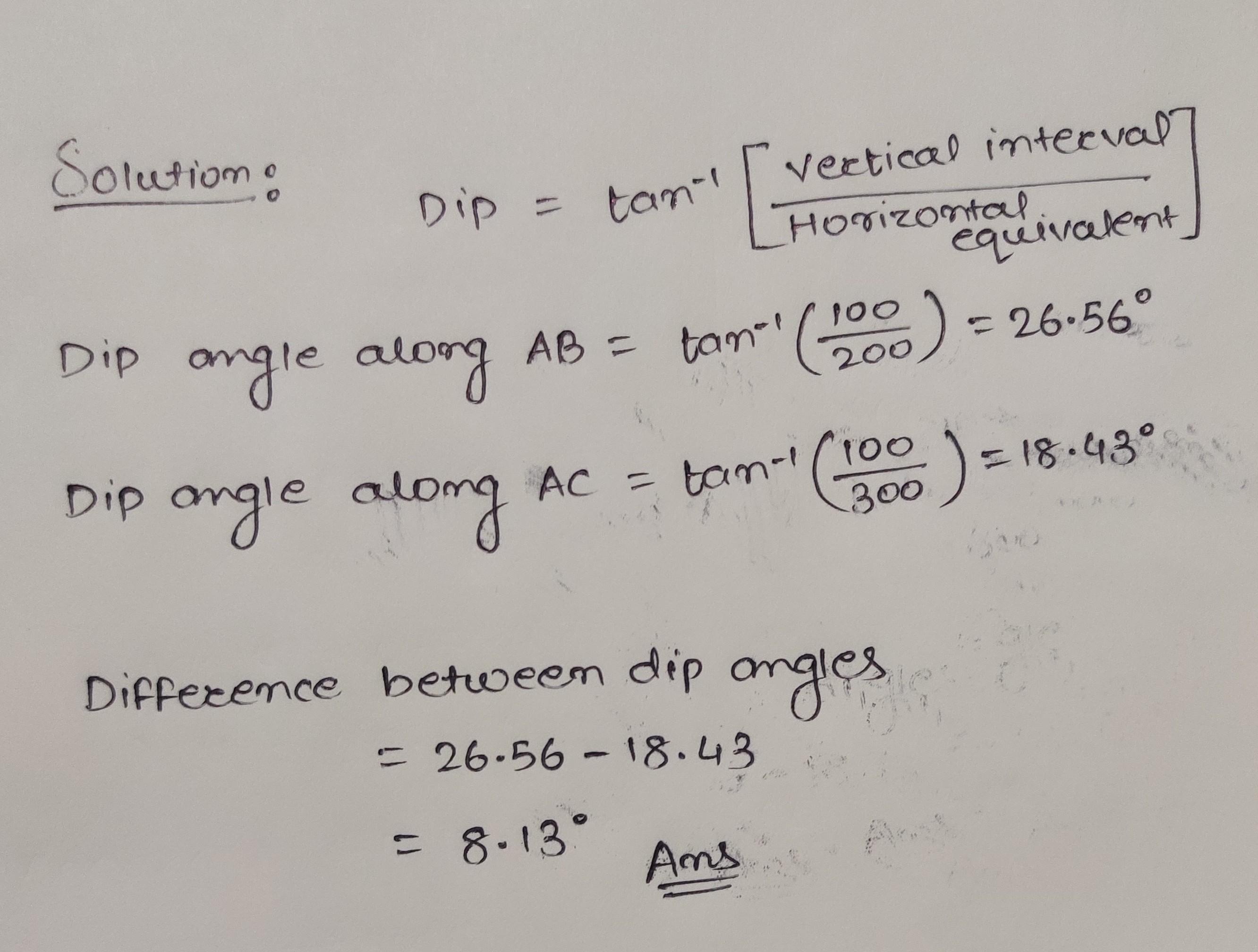

    Ans: 8.13 degrees. Please see the attached solution.

    eduncle-logo-app

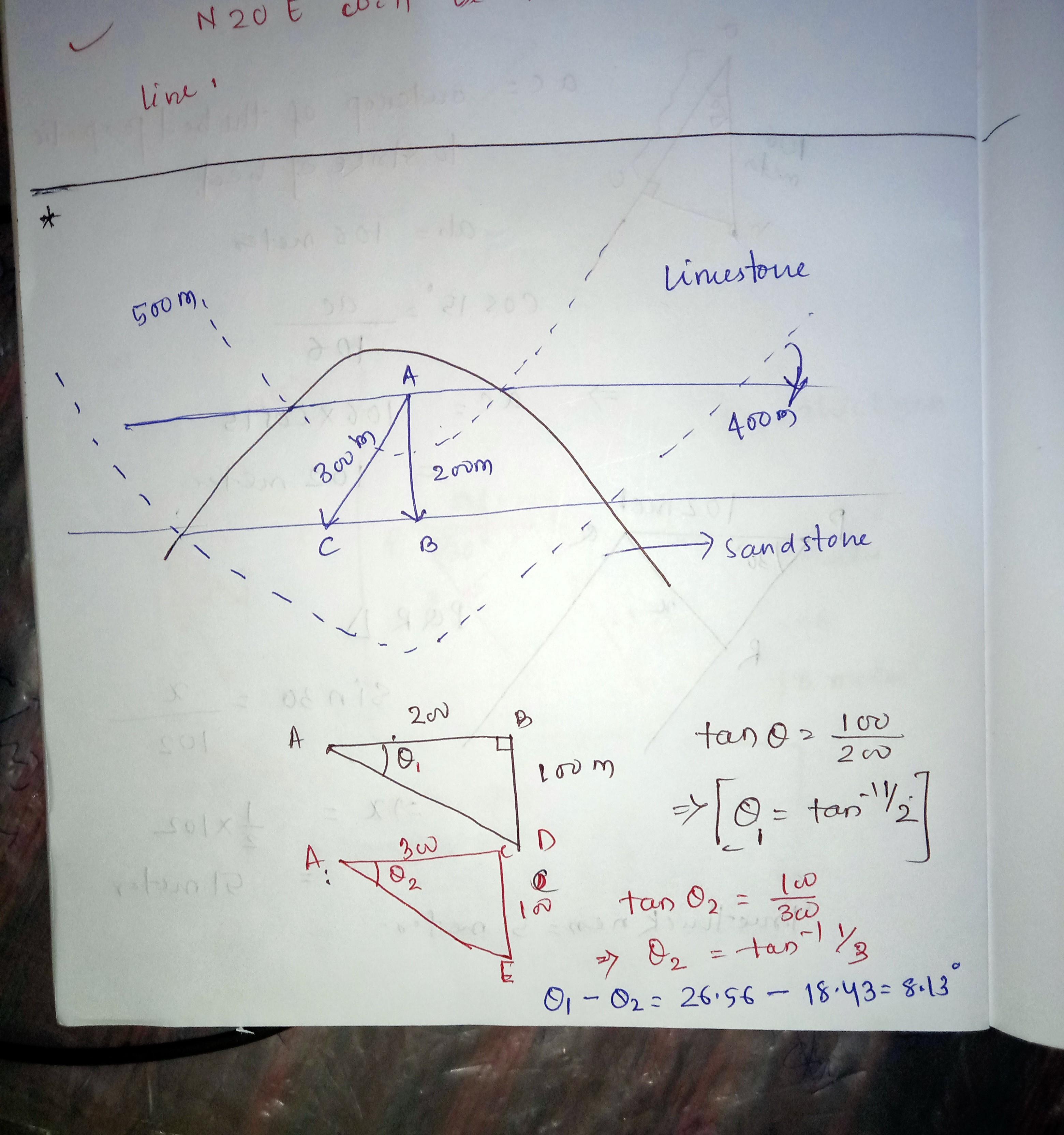

    Vertical Interval for dip along both AB and AC will be same, which is equal to difference of strike value (500m-400m=100m). Horizontal equivalent for both AB(200m) and AC(300m) is given in the diagram. Further steps are mentioned in the attached figure.

    eduncle-logo-app

    You can ask in case of any clarification you need.

    eduncle-logo-app

    ok sir.

    eduncle-logo-app

    no doubts sir.thank u

    eduncle-logo-app

    sir pls answer to my posts.of today
