Anukruti posted an MCQ
July 27, 2020 • 15:35 pm 30 points
  • IIT JAM
  • Geology (GG)

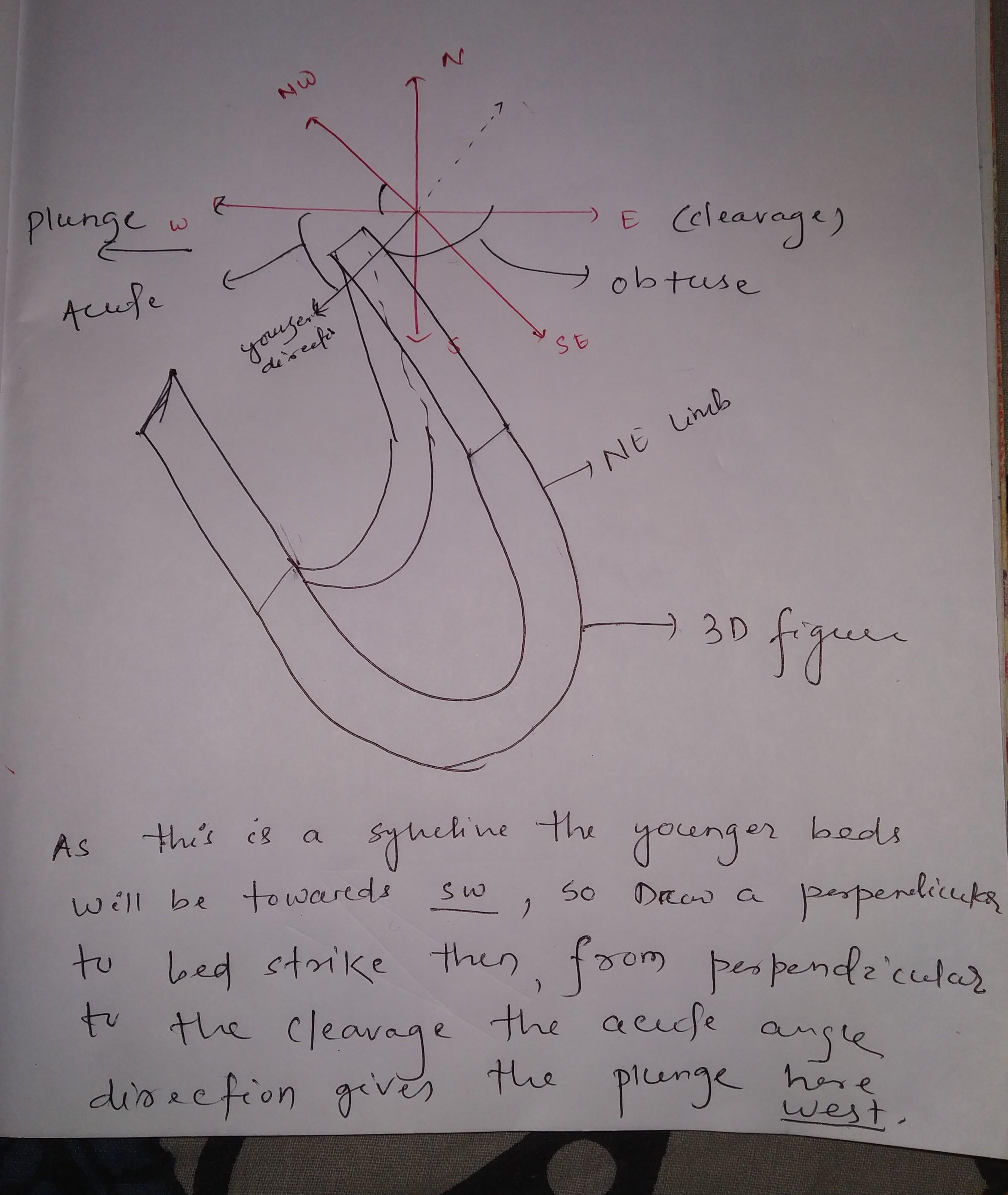

Question(in the attached picture)

Choose Your Answer:
2 Attempts Submit Now
  • 1 Likes
  • 6 Comments
  • 0 Shares
  • comment-profile-img>
    Sajan sarthak

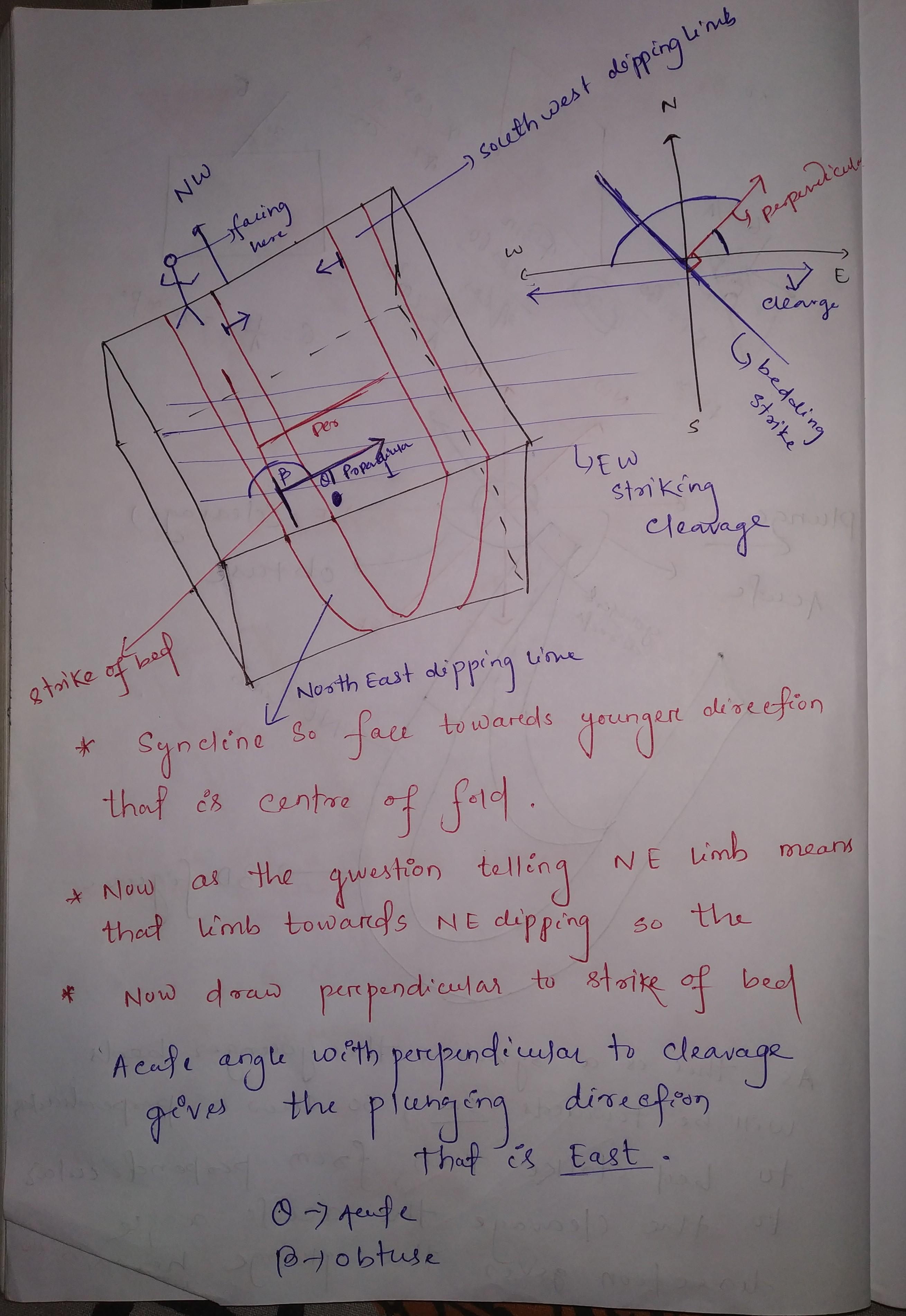

    Anu the answer will be EAST because there is a little drawing mistake as NE bed is mentioned so it will be East plunging

  • comment-profile-img>
    Sajan sarthak best-answer

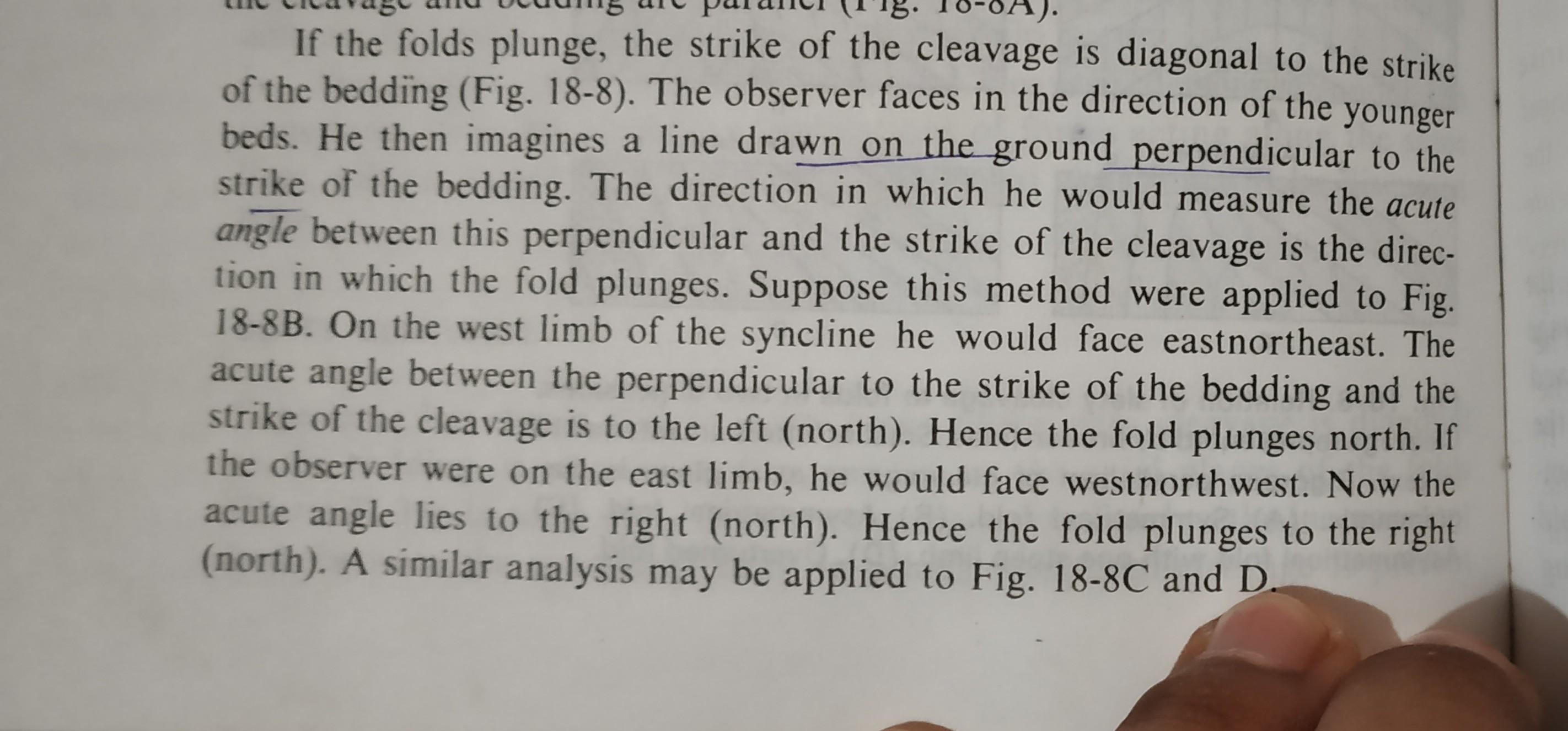

    3 steps to follow 1.face toward young Direction For syncline to the centre for anticline towards outer of the fold. 2 .draw perpendicular to the strike of the bedding 3.measure the acute angle with the cleavage from the perpendicular that direction will give u the plunging direction.

    eduncle-logo-app

    thank u sir for detailed explanation. i will try it again.

    eduncle-logo-app

    you are always welcome
