Gurmeet Singh posted an Question
September 23, 2020 • 20:52 pm 30 points
  • IIT JAM
  • Geology (GG)

Question in the picture. sir i am not able to imagine this situation but i know both of this- plunging and dipping. 2. is plunging+ dip= 90°?

If the dip amount of a given plane is 60°, find the plunge of the pole to the given plane. Choose only ONE best answer. A B 30 C 60

2 Answer(s) Answer Now
  • 3 Likes
  • 3 Comments
  • 0 Shares
  • comment-profile-img>
    Sajan sarthak Best Answer

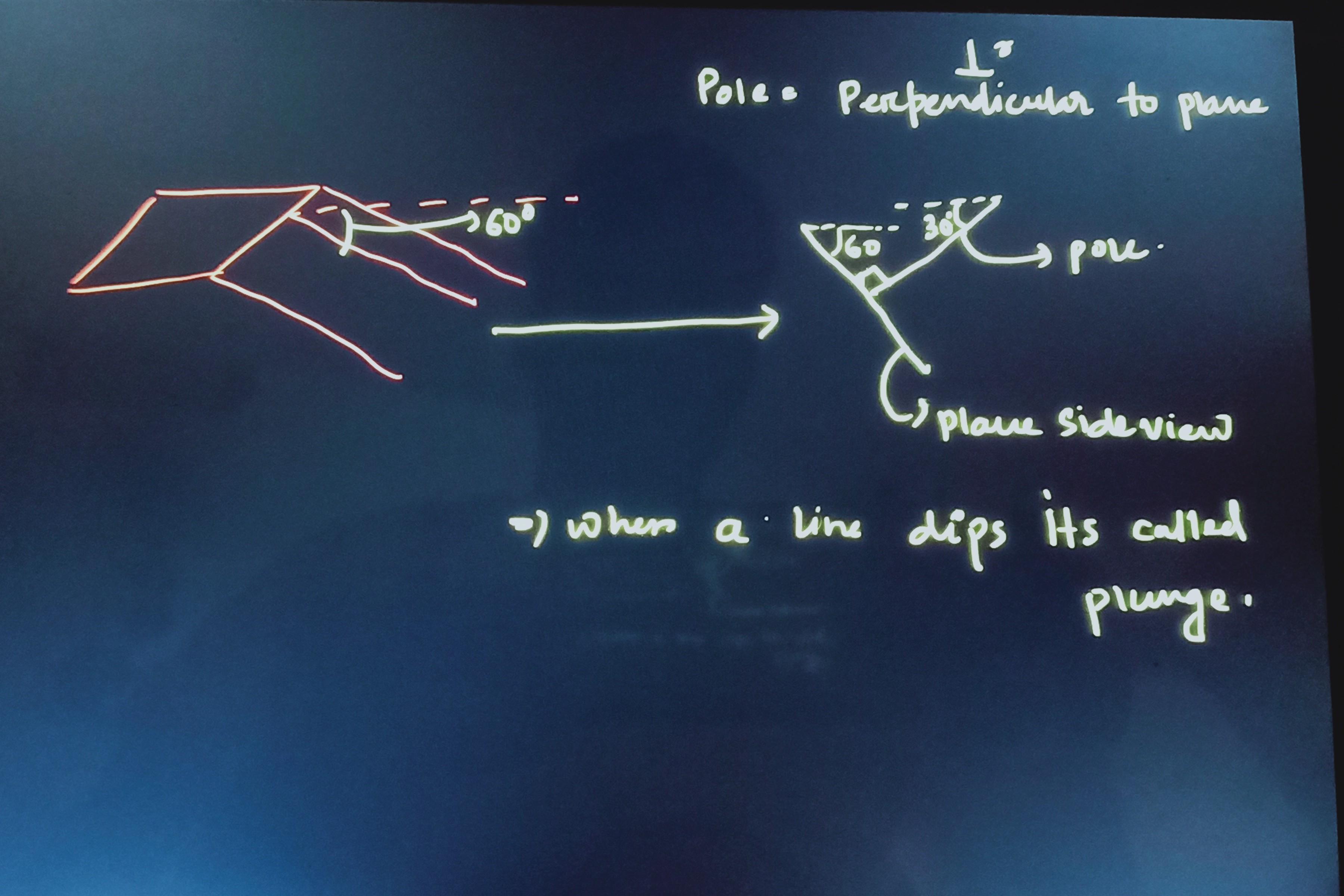

    see the answer attached And yes plunge of pole and dip amount of the bed =90°

    eduncle-logo-app

    thanku sir. i got this mathematically sir.. can you also share any block diagram or rock including both dip and plunging. sir.

    eduncle-logo-app

    see this figure

  • comment-profile-img>
    Rahul kumar best-answer

    Yes, plunge of the pole + dip of plane = 90° Pole is always perpendicular to the plane. So if the dip of the plane is 60° then pole will be plunging by (90-60) = 30°. With increasing amount of the dip of the bed, the plunge of the pole will decrease and vice-versa. Plunge of the pole to a horizontal bed is 90° and plunge of the pole to a vertical bed is 0°.

    eduncle-logo-app

    thanku sir, what is the relationship of pole trend and strike.

    eduncle-logo-app

    Trend/bearing of pole is always perpendicular to the strike of the bed.

    eduncle-logo-app

    Let me know if you have any further queries, if not then please mark the comment as answered. Thank you
