Ishita Das posted an Question
December 17, 2020 • 16:28 pm 30 points
  • IIT JAM
  • Geology (GG)

Refer below for question

The attitude of a sandstone unit is N65E, 35SE. A horizontal traverse with a bearing of S10E taken from the lower to the upper contact, measured 126m. What is the true thickness of sandstone bed?

1 Answer(s) Answer Now
  • 2 Likes
  • 1 Comments
  • 0 Shares
  • comment-profile-img>
    Sajan sarthak Best Answer

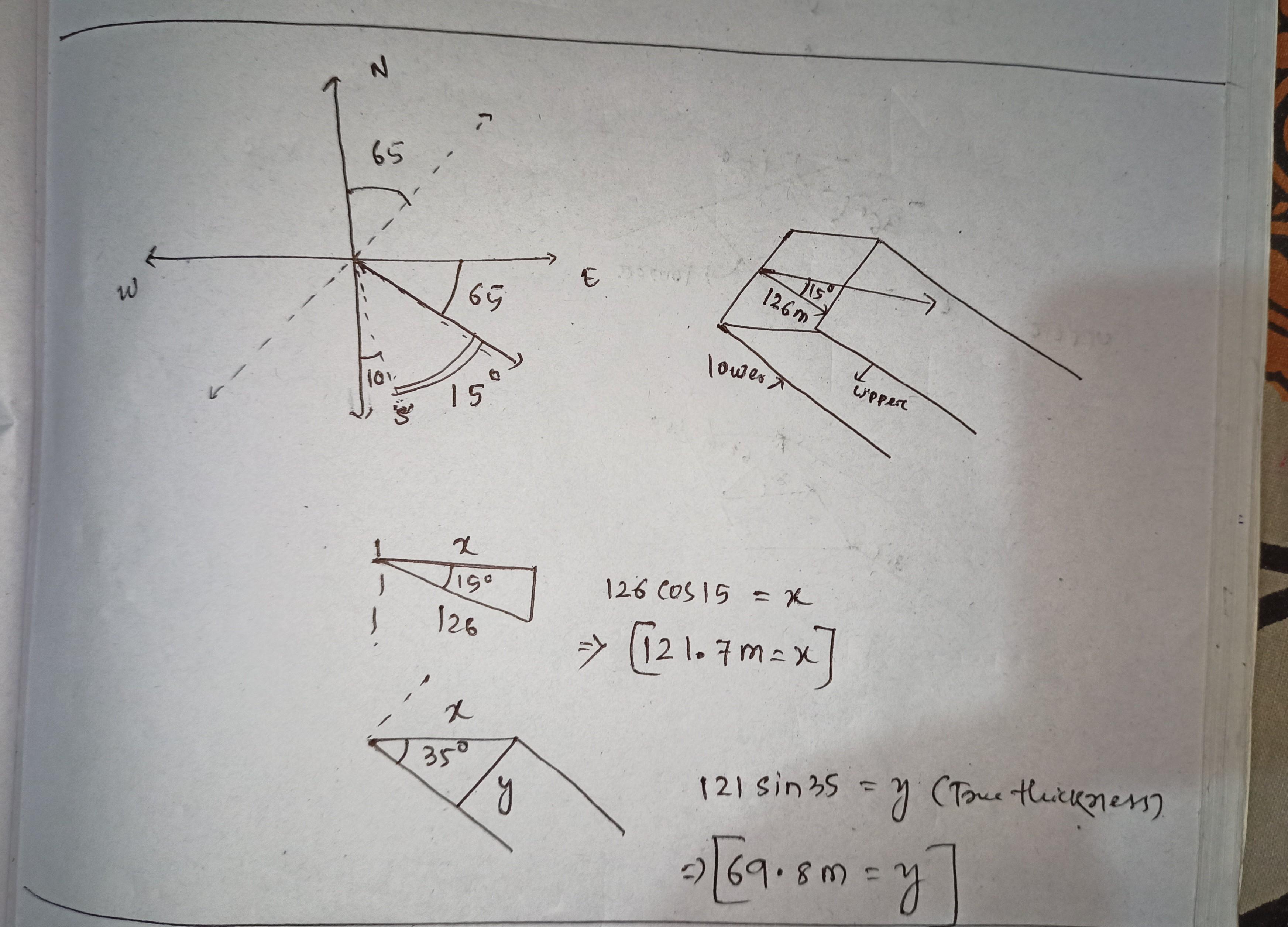

    69.8 m is the true thickness

    eduncle-logo-app

    dear Ishita mark this answer as well ..

    eduncle-logo-app

    but the angle is coming 25 instead of 15? please explain

    eduncle-logo-app

    15 how?

    eduncle-logo-app

    yes. because it's coming 25 when i am calculating

    eduncle-logo-app

    90-(65+10)

    eduncle-logo-app

    but the dip is 35 from S towards E. so that will be 55 na instead of 65?

    eduncle-logo-app

    65 is the not the dip it's the azimuthal strike direction

    eduncle-logo-app

    To be honest, I am not getting this sum clearly. why are you taking azimuthal strike direction? I am getting confused. Can you please explain in another way

    eduncle-logo-app

    ok

    eduncle-logo-app

    see. I have explained by language too

    eduncle-logo-app

    clearer now! Thanks

    eduncle-logo-app

    thank you 😊
