Rigid body question

not understand...........................................

1 Answer(s) Answer Now
  • 0 Likes
  • 1 Comments
  • 0 Shares
  • Animesh anand Best Answer

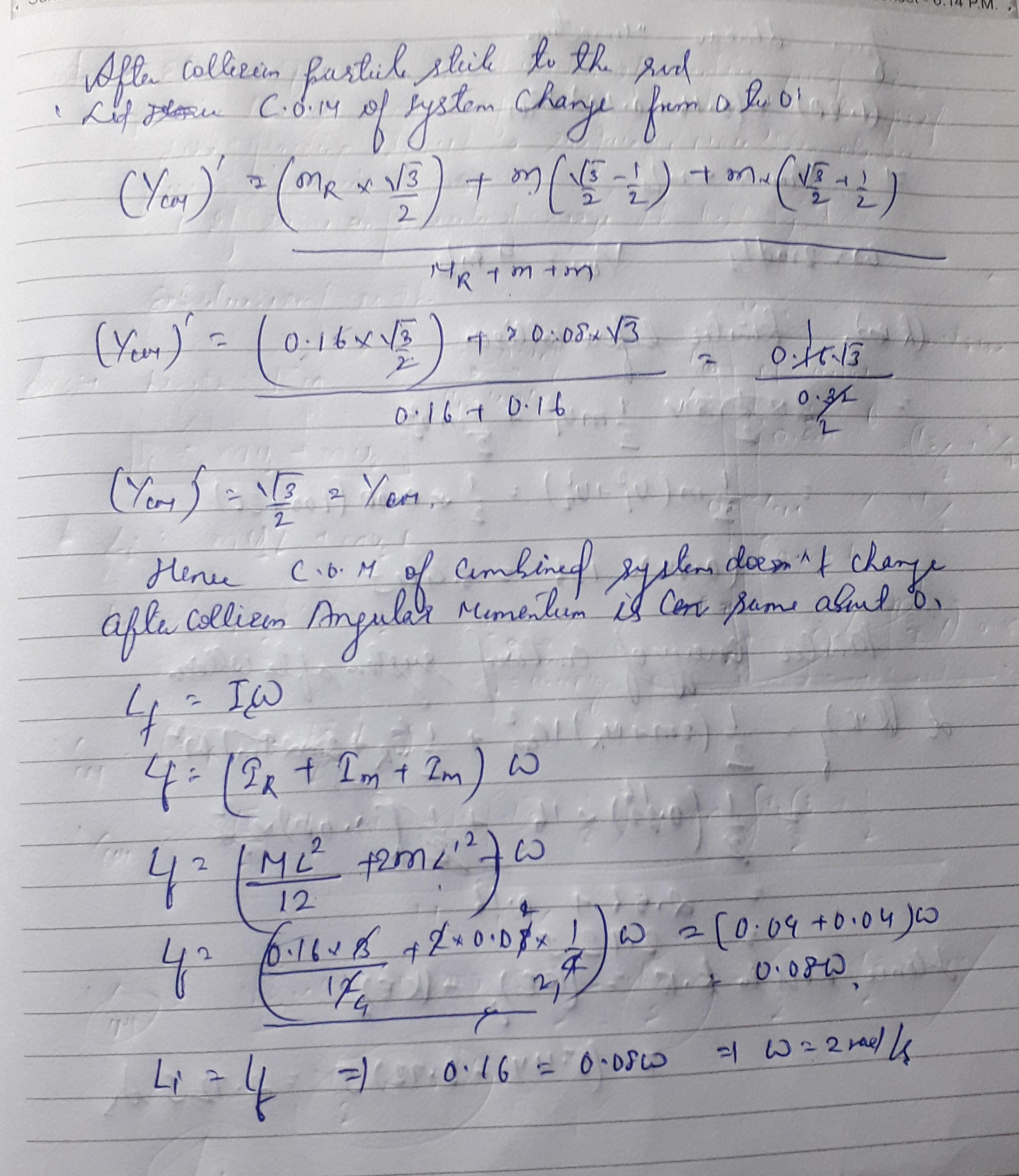

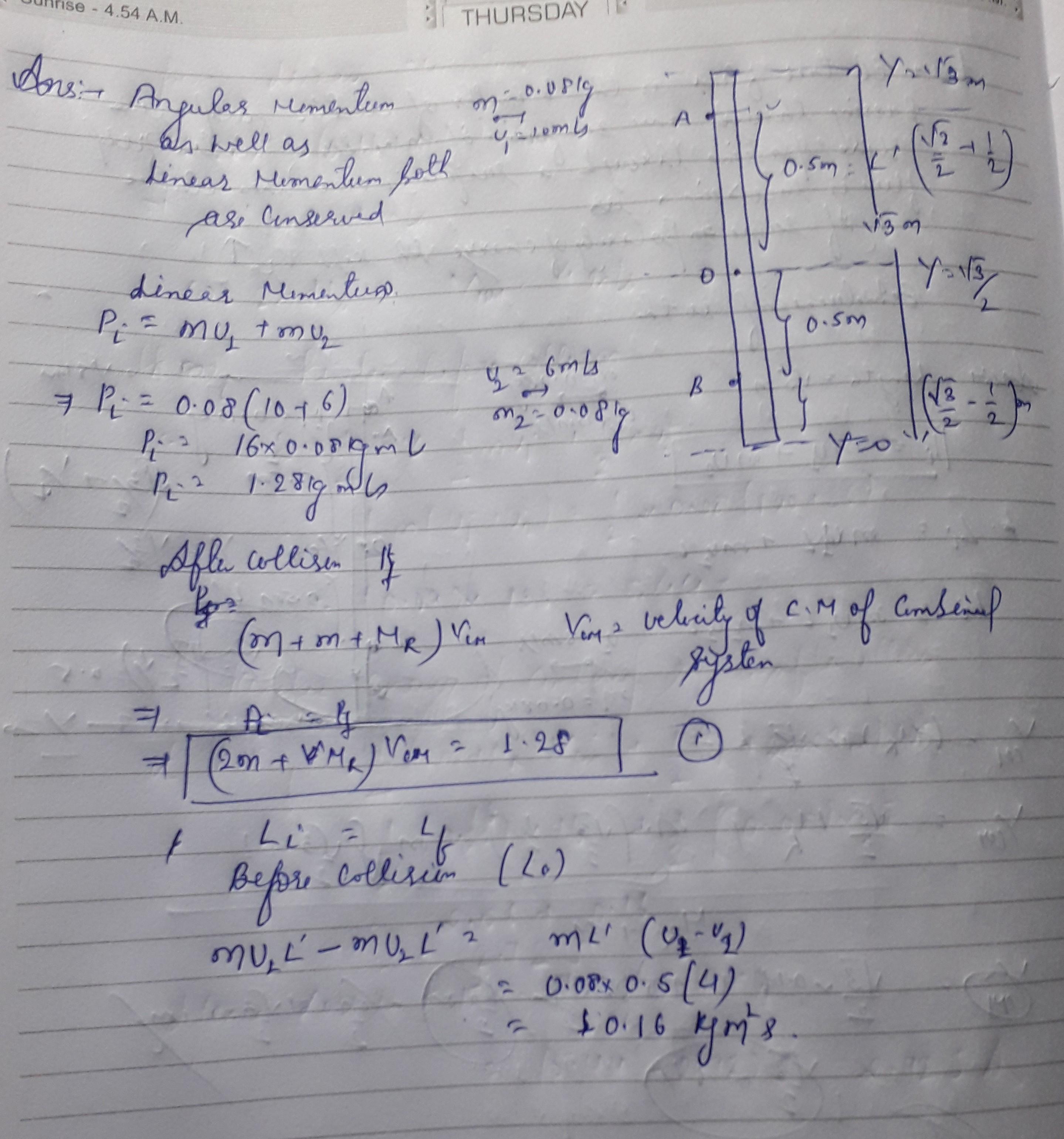

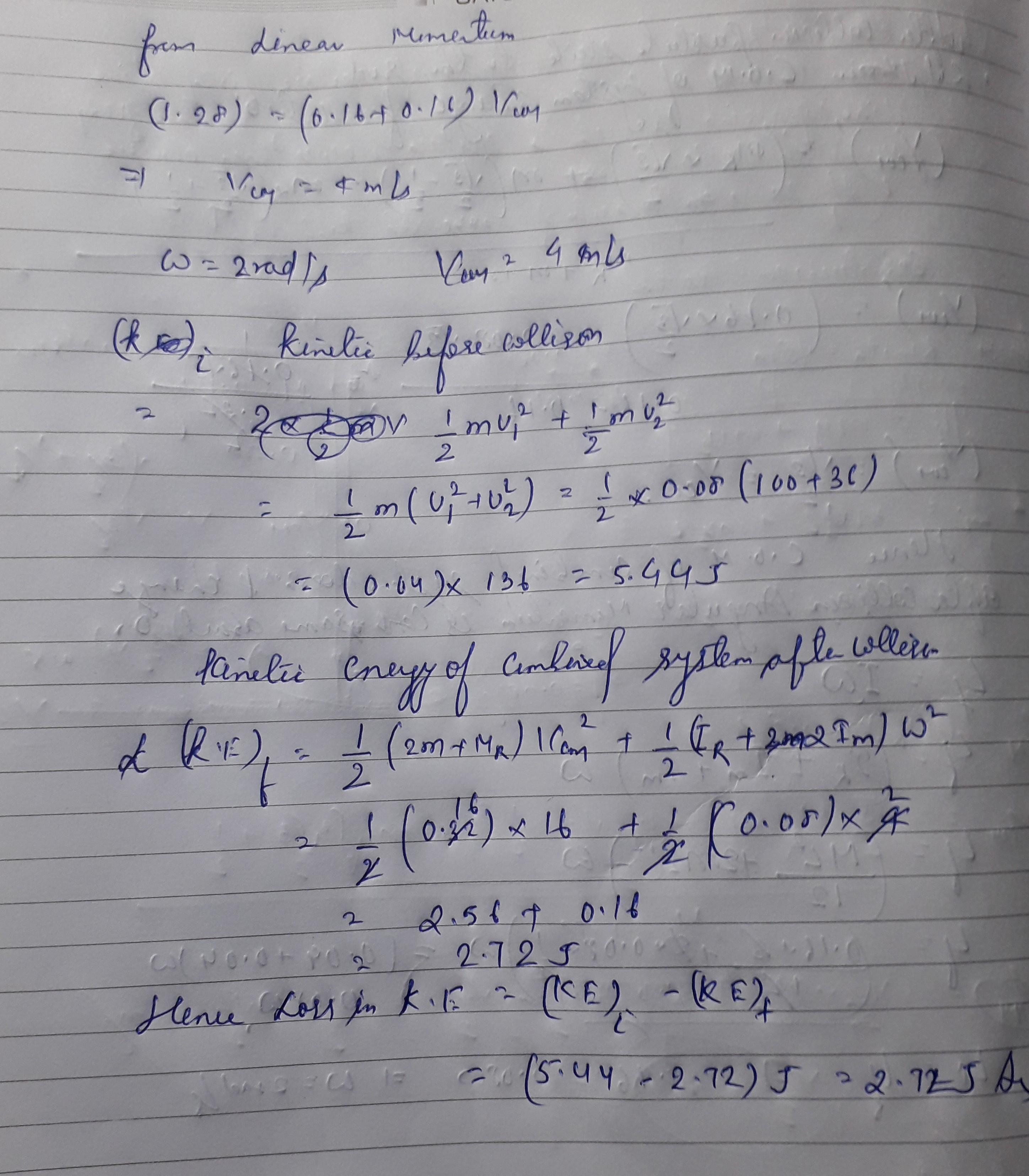

    kindly find your answer attach below

    eduncle-logo-app

    in which part of answer you have problem

    eduncle-logo-app

    c.o.m

    eduncle-logo-app

    because two mass are also stick so in this type of problem we have to calculate c.o.m because rod rod is freely moving and we have to conserve angular momentum about c.o.m

    eduncle-logo-app

    take the lower part of rod as y =0 ,and centre of rod =L/2 similarly we wrote the y coordinates of both mass at A and B

    eduncle-logo-app

    if c.o.m is shifted to other point then we have to calculate moment of inertia of system about that point and have to conserve angular momentum about that point .

    eduncle-logo-app

    √3/2 ..√3/2-1/2 from where we get this values

    eduncle-logo-app

    this app is not working many times

    eduncle-logo-app

    take lower point be y=0 ,distance of point B from y=0 is root3/2-1/2

    eduncle-logo-app

    root3/2 is mid point of rod ,and point b is 0.5m distance from rod

    eduncle-logo-app

    length of rod is given in the question and surely from question rod is not hitting at end point of rod because distance of point A and B each is 0.5m from centre
