Since, output cannot exceed as0, output will be + example : 3 for the given circuit using an operational amplifier, the input is a sinusoidal signal of anmplitu

Since, output cannot exceed aS0, output will be + Example : 3 For the given circuit using an operational amplifier, the input is a sinusoidal signal of anmplitude V= ImV (peak-to-peak), 100k2 10k2 10k2 +15V 10k2V 10k2 100uF (a) What is the lower cut-off frequency at which the gain 1s down by 3 dB as compared to the gain at midband? If the bandwidth of the amplifier is 1 MHE for unity gain, what will be the bandwidth of the given circuit? (b) What is the output voltage (V.) at 15 kHz ? |JAM PH-2011

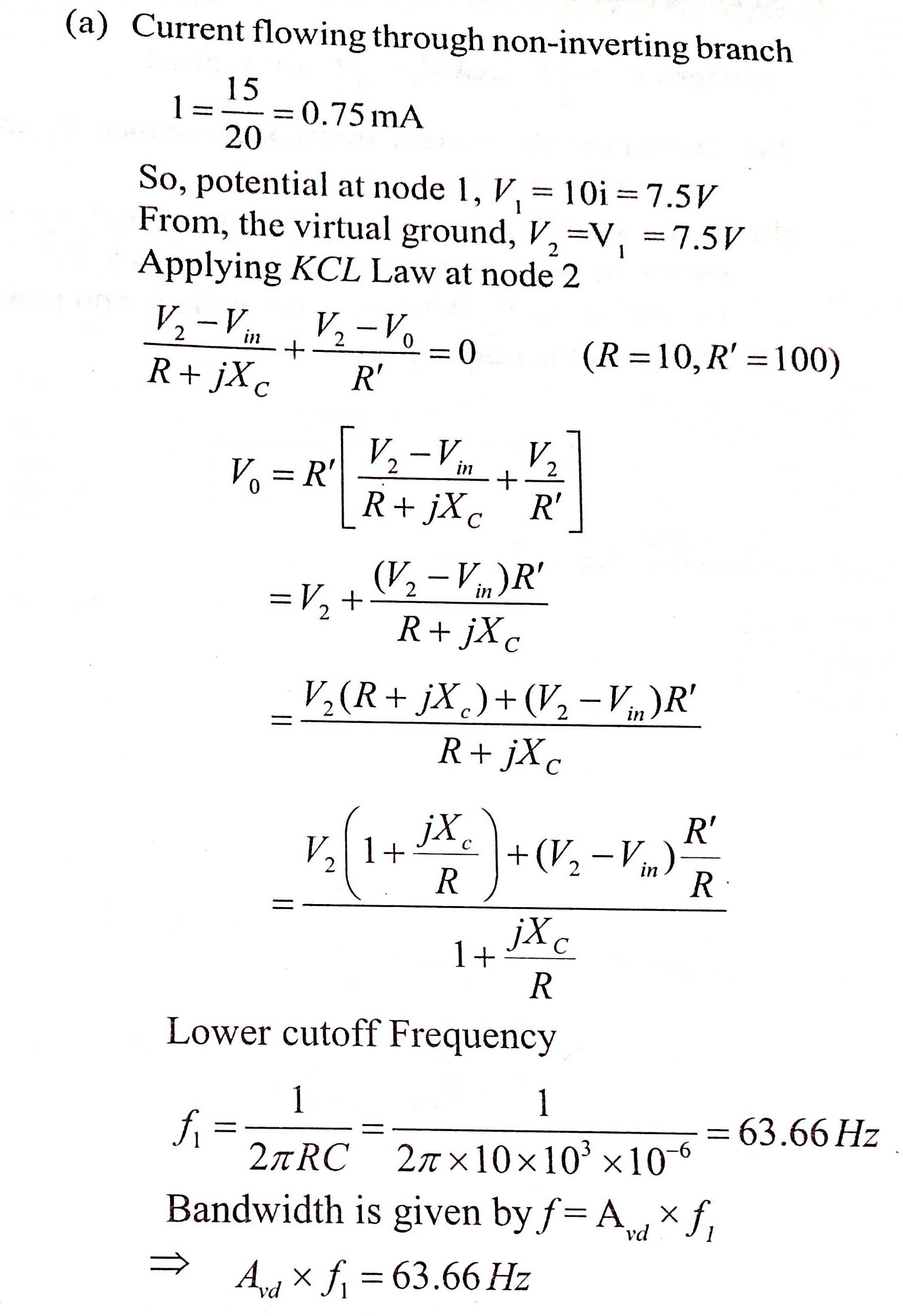

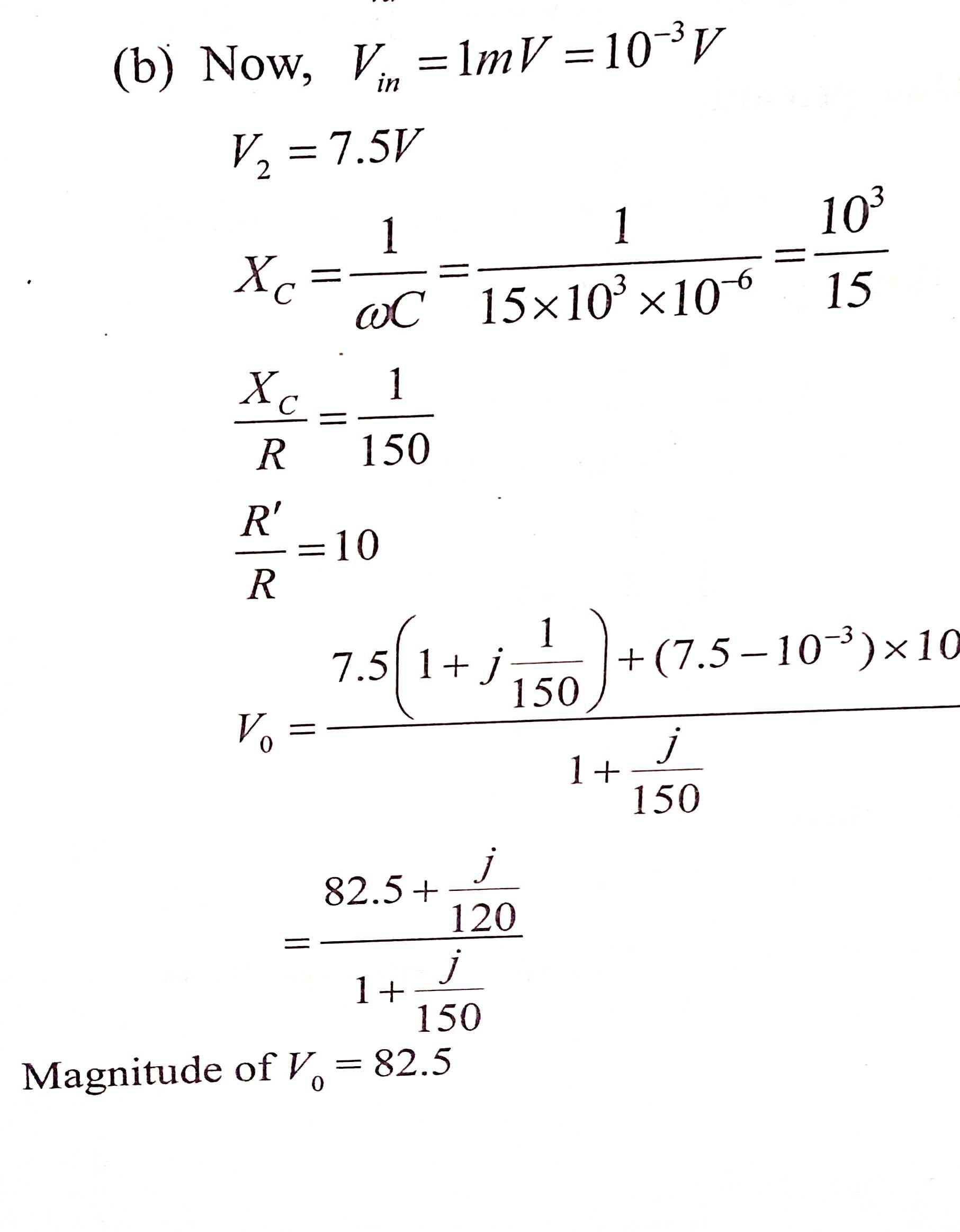

1 Answer(s) Answer Now
