68 Geolo 11,Maximum dip of a plane can be obtained on a line that is at angle with strike of the bed B. 45 D 65 25 (DU-2015)
  • 2 Answer(s)
  • like-1
  • Shares
  • Sajan sarthak sahoo
    Dev please study any structural book and start reading the basic is the strike and Dip so unless and until you read it and imagine you would not able to understand.
    Likes(1) Reply(0)
  • Sajan sarthak sahoo Best Answer

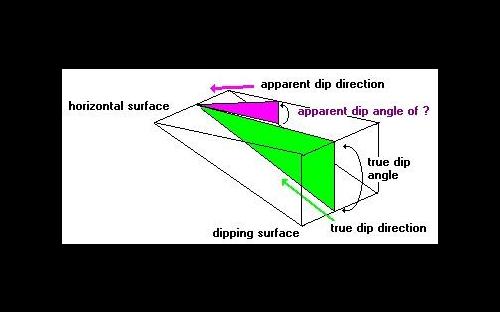

    This green area is the true dip area so that is perpendicular to the strike of bed and so shows the maximum dip angle. other than 90 degree if you take any direction like the purpl...
    Show more
    • cropped6335925845857100007.jpg
    Likes(0) Reply(1)
    sir can you show more 3D diagrams ?
  • Rahul pandey thankyou

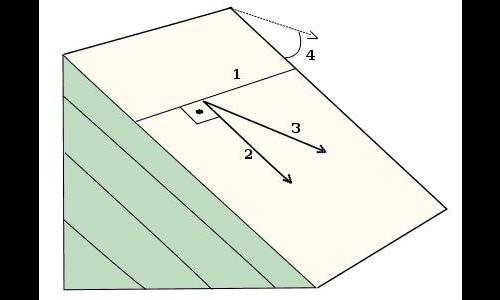

    Strike line is the intersection line of horizontal plane and bedding plane. The direction perpendicular (90°) to the strike gives the true dip (maximum dip) whereas any other direc...
    Show more
    • cropped6219412770792223688.jpg
