Karni Dan posted an Question
November 24, 2021 • 13:38 pm 30 points
  • IIT JAM
  • Physics (PH)

Sir my answers is a by current equations

In the figure, silicon diode is carrying a constant current of 1mA. When the temperature of the diode is 20°C, V is found to be 700mV. If the temperature rises to 40°C, V, becomes approximately equal to (a) 740mV (c) 680mV (b) 660mV (d) 700mV tain aomnaanium diade reamires a forward hias of 0 1435

1 Answer(s) Answer Now
  • 1 Likes
  • 1 Comments
  • 0 Shares
  • comment-profile-img>
    Anshum Sharma best-answer

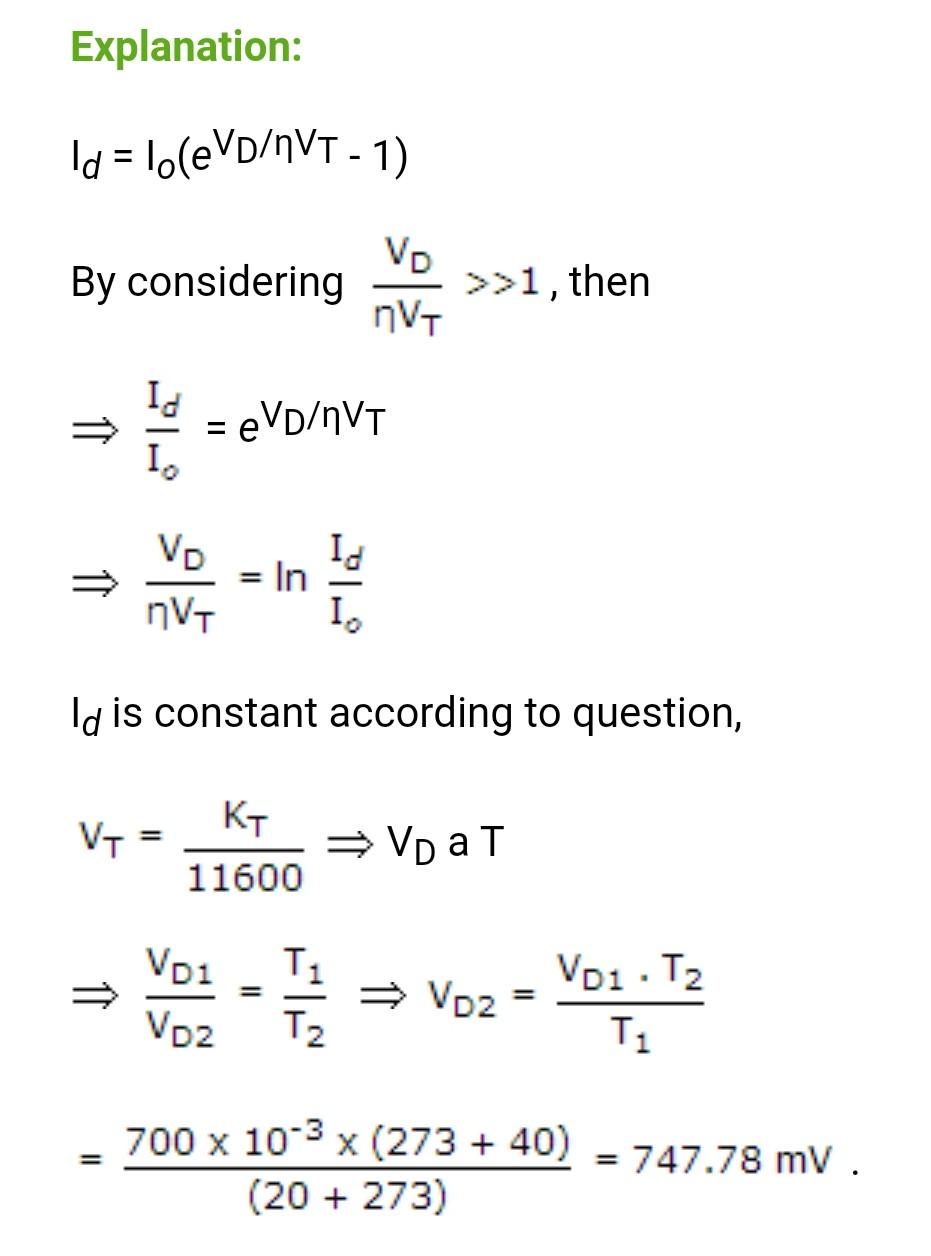

    Here is the detailed solution option (a) is the correct answer
