Gurmeet Singh posted an Question
August 31, 2020 • 19:07 pm 30 points
  • IIT JAM
  • Geology (GG)

Sir please elaborate any 2 of them.

3. OUTCROP usuaiiy ao nOt cross each other. 20 --20 -5D~ -40- -- . C Cb) - 20 40 So- A Cc) Fio. 12.1. Relationship between contours and the dip of strata.

2 Answer(s) Answer Now
  • 2 Likes
  • 5 Comments
  • 0 Shares
  • comment-profile-img>
    Sajan sarthak

    contour has no role for beds

    eduncle-logo-app

    but sir we make the contour of beds/ hills or same elevation points of any typographical features.

    eduncle-logo-app

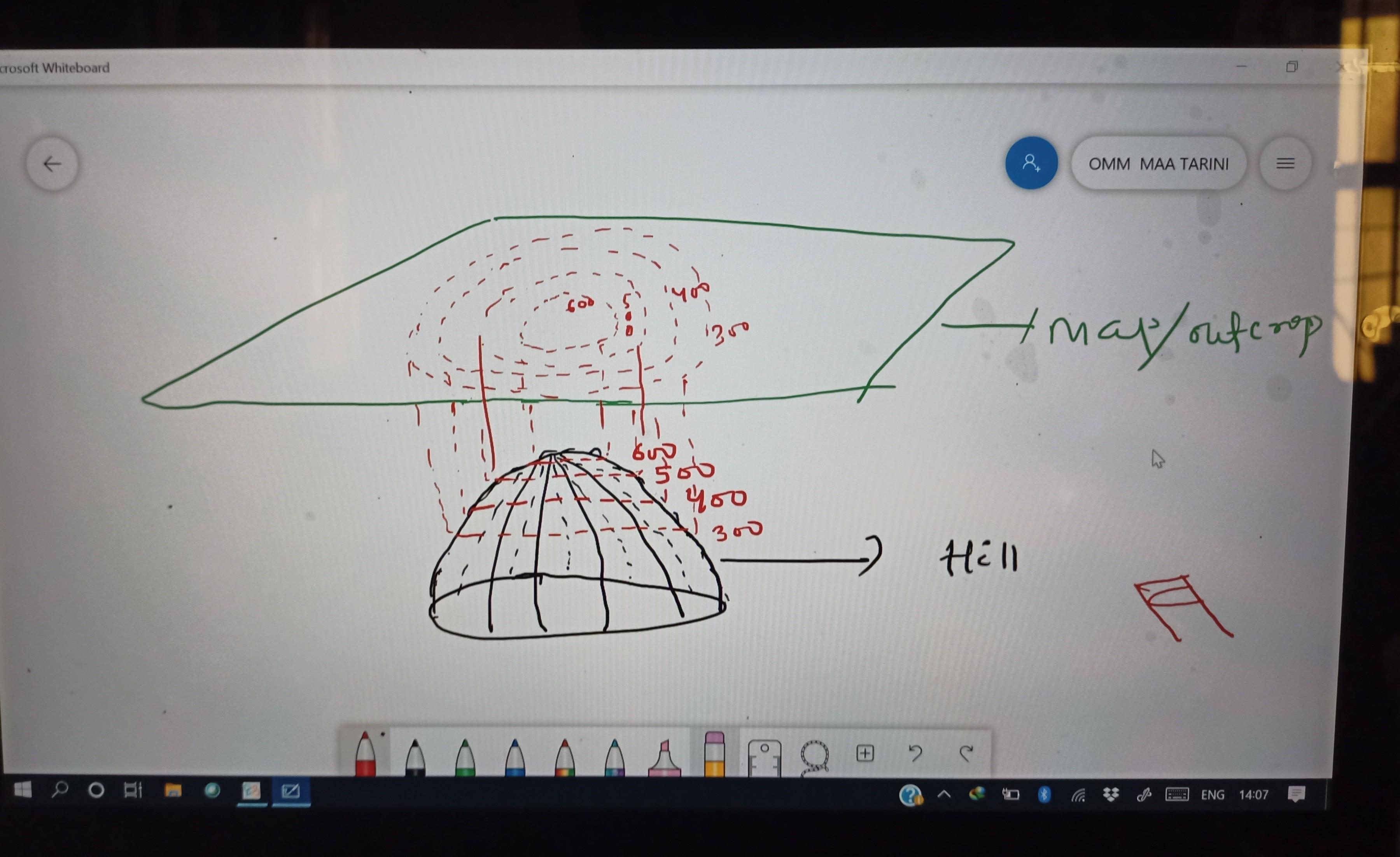

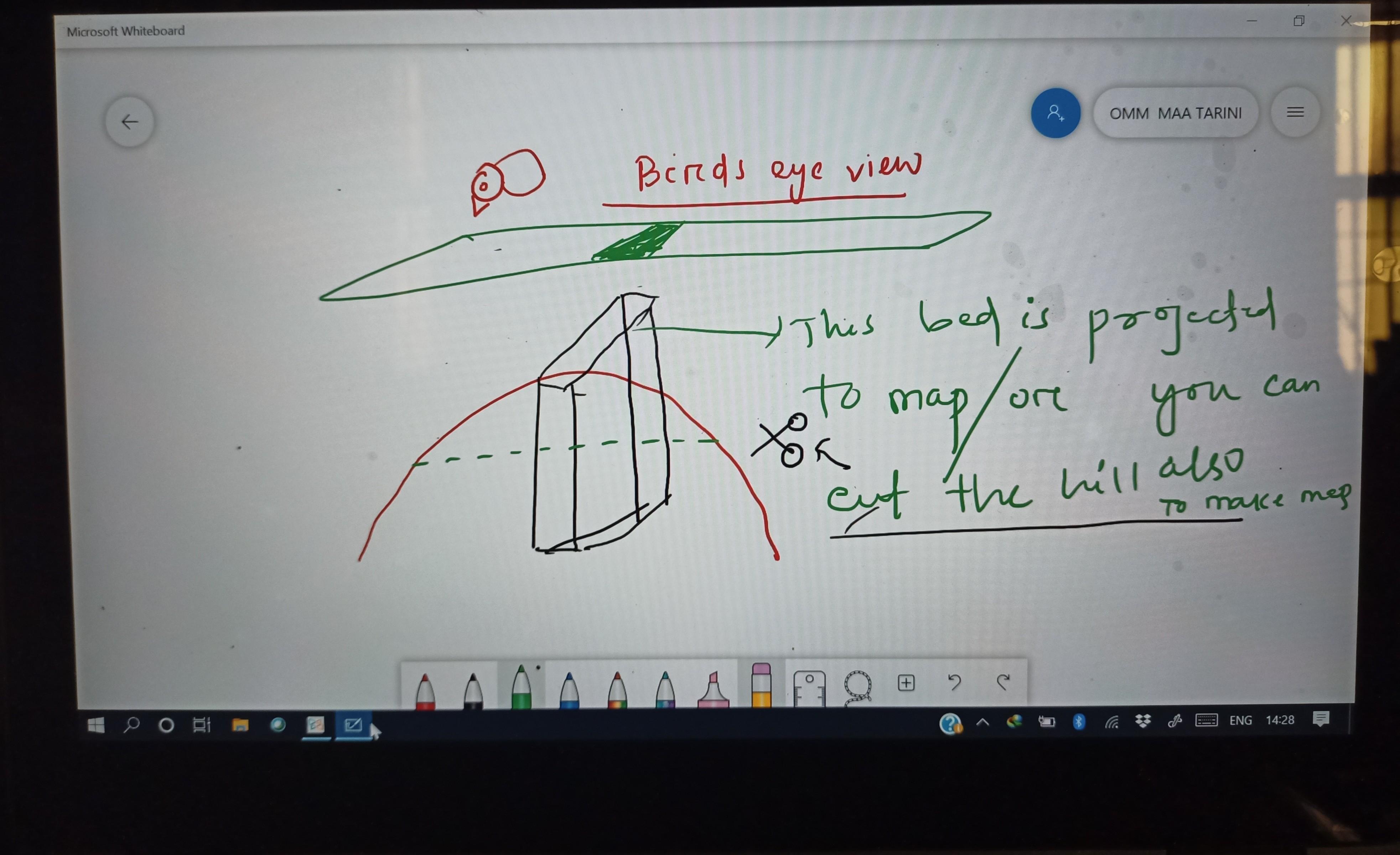

    we do contours for elevation points at equal position. beds has no role for contour..shape of contour depends on the topography shape . beds are projected to map and then looking at the bed orientation on map we can predict of the bed is whether horizontal,vertical or inclined

  • comment-profile-img>
    Sajan sarthak Best Answer

    see the attached file And try to understand before discuss.

    eduncle-logo-app

    sir , in vertical case its not possible to make contour (same elevation points).

    eduncle-logo-app

    see this

    eduncle-logo-app

    means sir vertical bed will be completely vertical in contour also.

    eduncle-logo-app

    yes

    eduncle-logo-app

    ok thank you so much sir.

  • comment-profile-img>
    Rahul kumar best-answer

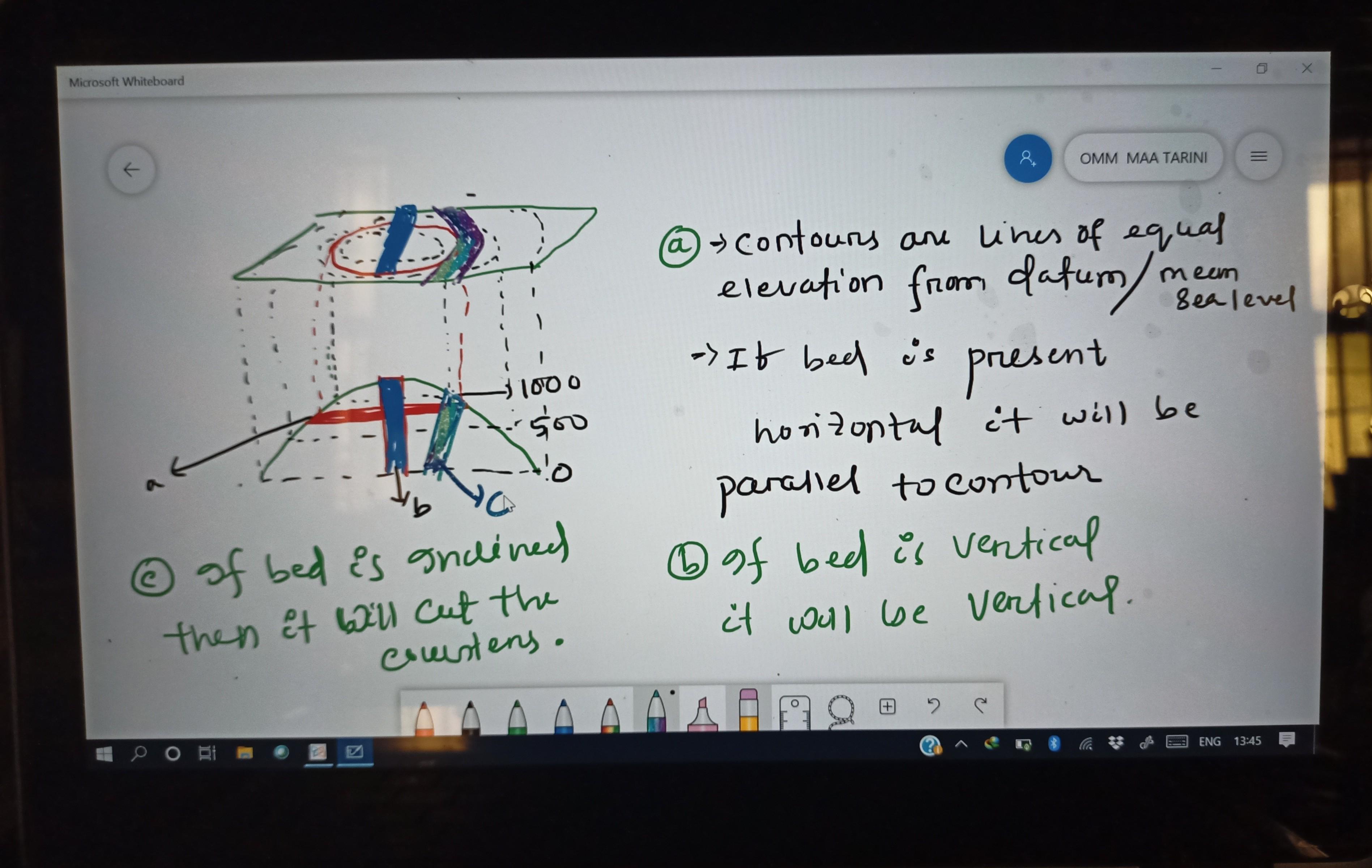

    Dear student, the given figure represents the contour diagrams of different strata. Dotted line in the map is contour lines (locus of equal height points) and shaded part is the strata/bed. In figure (a), bed boundary (shaded part) is parallel to the contour lines which indicate that the bed is horizontal In figure (b), the bed is vertical so contours of different heights are cutting across through the bed (shaded part). You can imagine the map by looking at 3D models.

    eduncle-logo-app

    sir in vertical bed, how we can make equal elevation points
