Sir, please elaborate this question and answer. given ans b

In the case of pure shear the relationship between strain axes and principal stress axes is such (A) XIl o.Y ll o, and ZIl o, XIl o,, Y l o and Z Il o, (B) (C) Only X corresponds with the orientation of o, Only Y corresponds with the orientation of a, (D)

2 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Sajan sarthak Best Answer

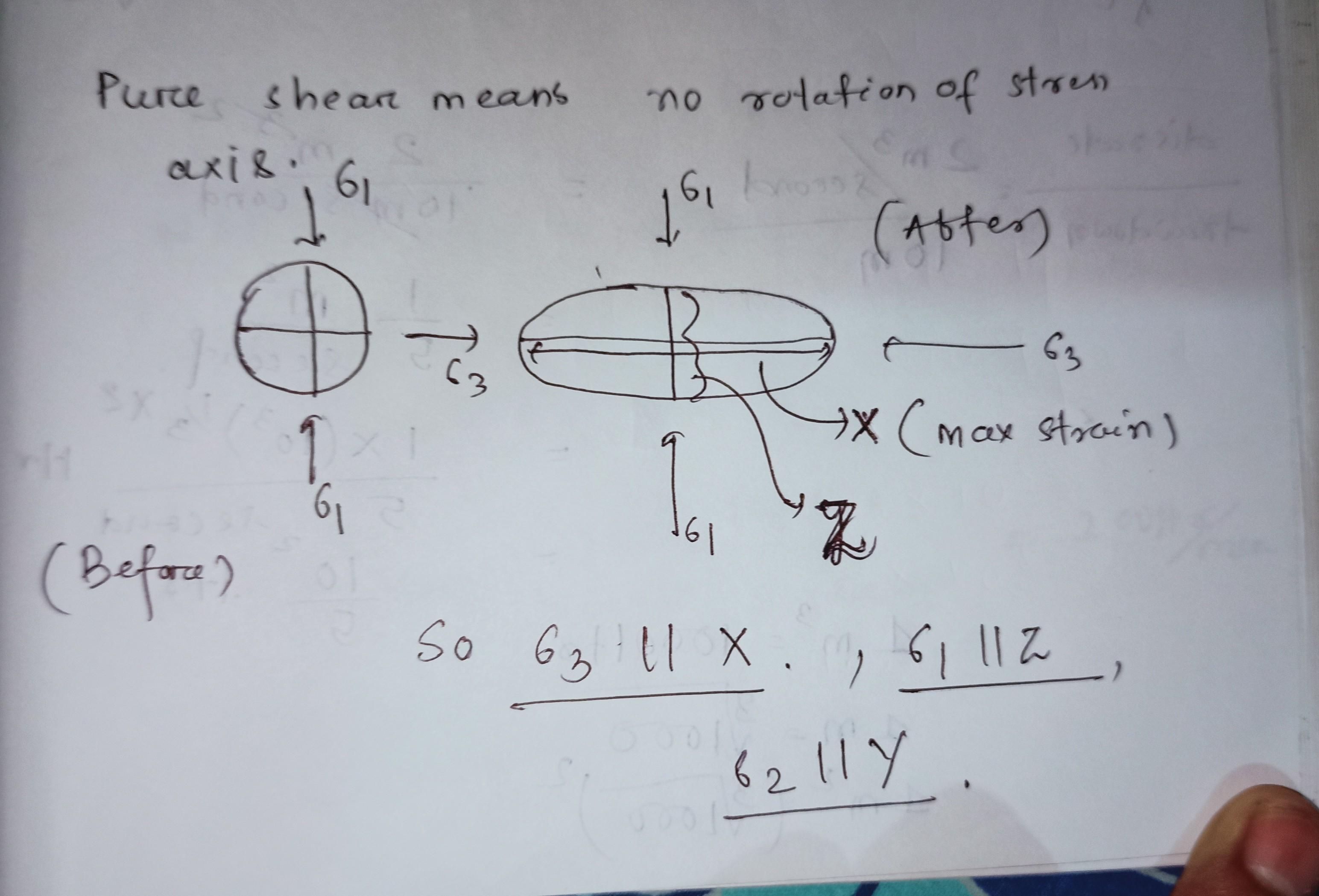

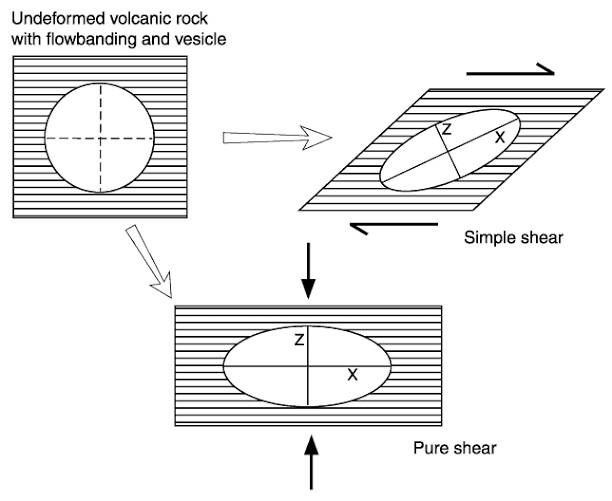

    pure shear is a three-dimensional homogeneous flattening of a body. It is an example of irrotational strain in which body is elongated in one direction while being shortened perpendicularly.  see attached file to get idea

    eduncle-logo-app

    thank you sir

  • comment-profile-img>
    Rahul kumar best-answer

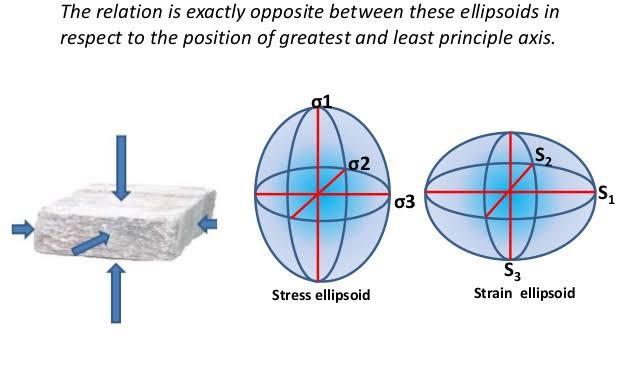

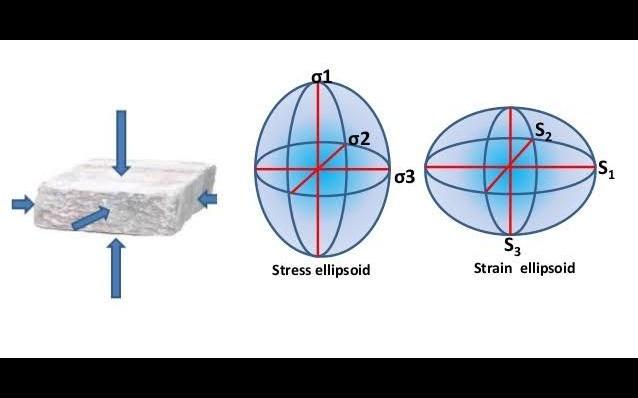

    The question is asking about the relationship between principal stress axis and corresponding strain axis in case of pure shear. In option (|| --> indicates parallel nature), there are different relationship between the two axis. Sigma1(maximum stress) will be parallel to Z and sigma3(minimum stress) will be parallel to X axis. Refer to the attached figure which clearly represents the given situation.
