Gurmeet Singh posted an Question
August 31, 2020 • 22:19 pm 30 points
  • IIT JAM
  • Geology (GG)

Sir please simplify 2nd line ' where dipping....... degree of dip' also how size of v is inversely proportional to degree of dip.

sir please simplify 2nd line ' where dipping....... degree of dip' also how size of V is inversely proportional to degree of dip.

2 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Rahul kumar Best Answer

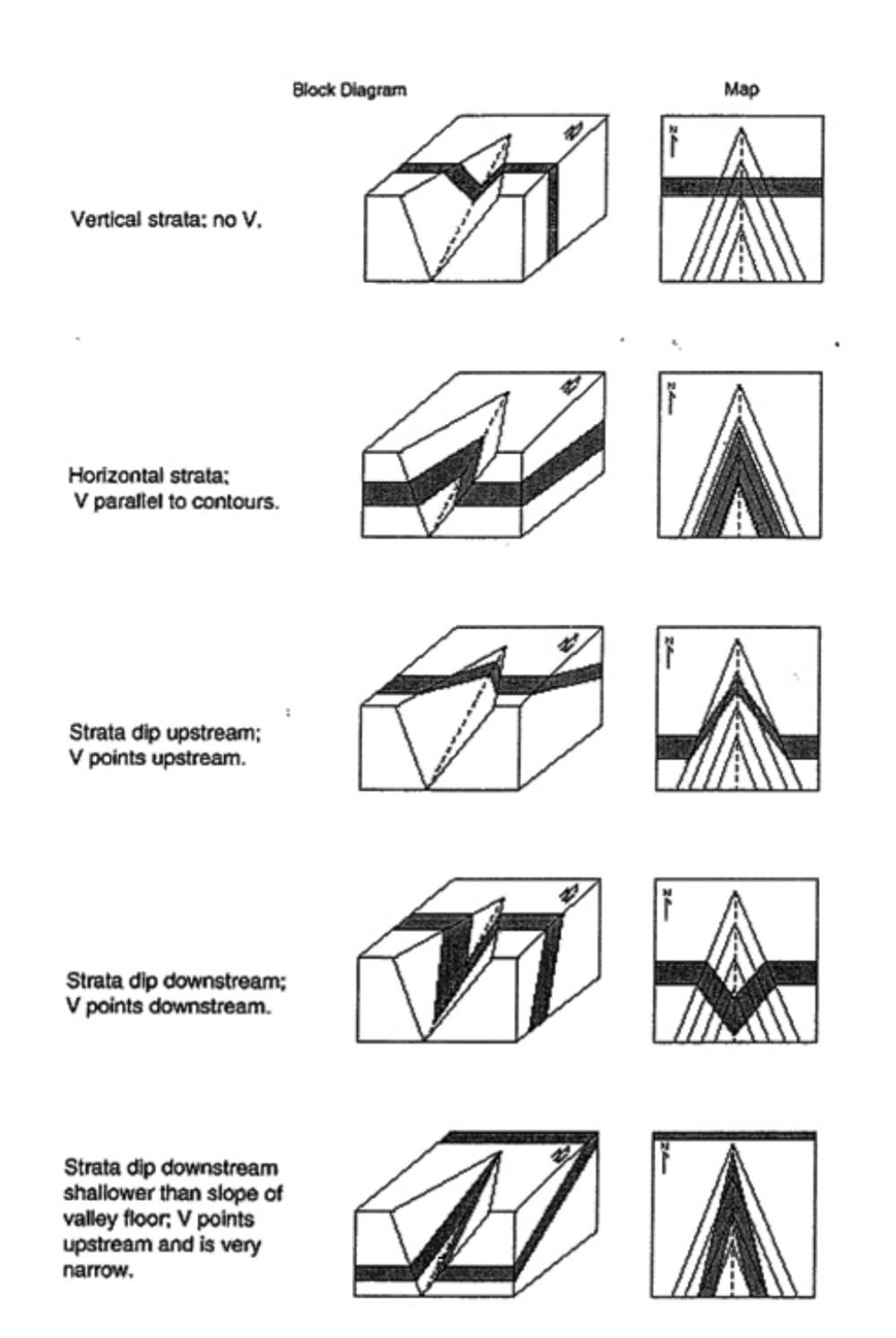

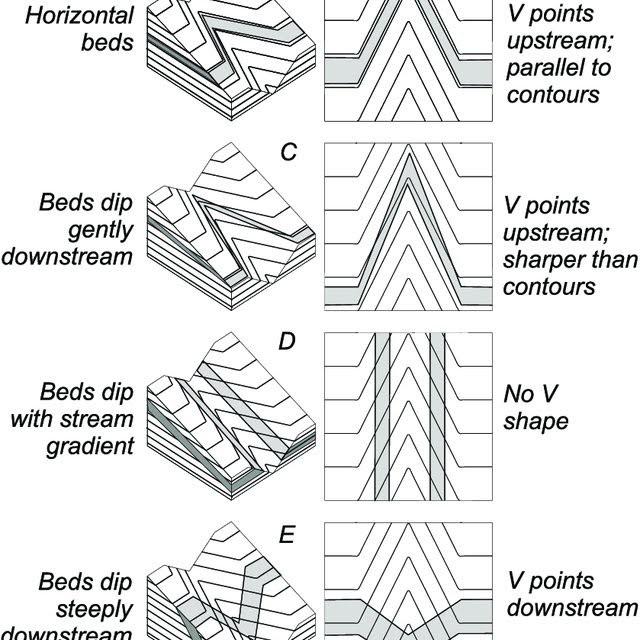

    Please refer to tha attached figure for detail about the contour pattern of any beds in a valley (rule of V). You can think about it in 3D by using a paper and visualising the contour pattern and bed dip.

    eduncle-logo-app

    sir , in the 3rd fig, strata dip upstream means beds are on upwards side of rock.

    eduncle-logo-app

    Strata dips upstream means strata is dipping in opposite to the flow direction of river or dip direction of the valley.

  • comment-profile-img>
    Sajan sarthak best-answer

    yes That is V 'S RULE 1 .bed dips same as valley dip but at low angle than Valley the. v will be towards upstream. 2. if bed dip at high angle than Valley then v will be downstream. but at same direction as if valley 3.if bed diping opposite to valley dip direction then v will be upstream
