Karni dan Asked a Question
November 10, 2021 5:45 pmpts 30 pts
  • IIT JAM
  • Physics (PH)

Solution: (and) example: 2 tor ne circuit shown below, calculate the output voltage v. what would v. be it the polarity of 2 datery 1s reversed at terminal b? (

Solution: (AND) Example: 2 TOr ne Circuit shown below, calculate the output voltage V. What would V. be it the polarity of 2 Datery 1S reversed at terminal B? (Assume the operational amplifier to be 1aeal. 30k2 ww- 10k2 +12 +4VO-> www- A 12 2 E [JAM PH-20071
  • 1 Answer(s)
Answer Now
  • 0 Likes
  • 1 Comments
  • Shares
  • Anshum Sharma thankyou

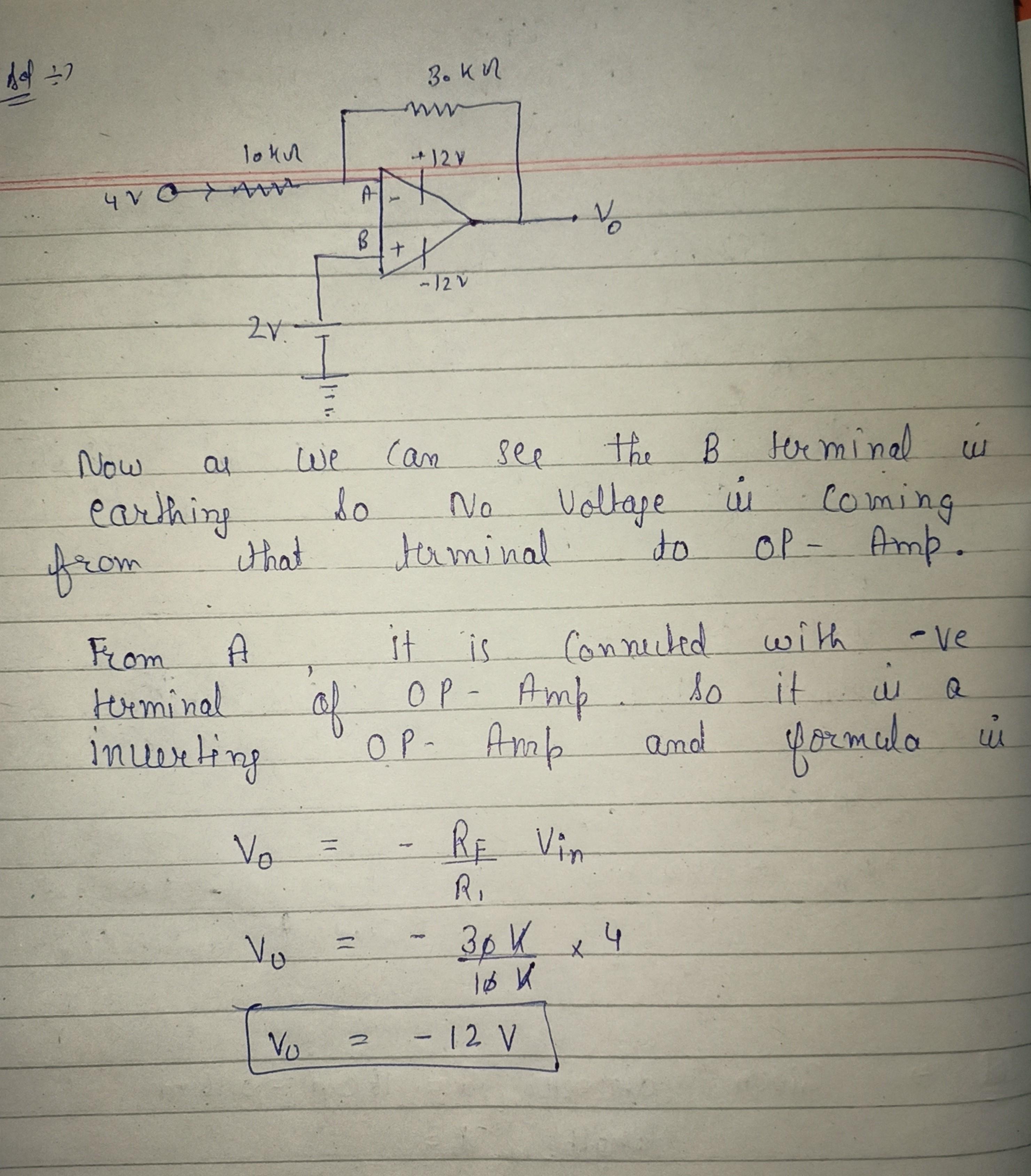

    Here is the detailed solution
    • cropped1999831853265792316.jpg
    Likes(0) Reply(0)
