Aashi posted an Question
January 27, 2021 • 23:08 pm 30 points
  • IIT JAM
  • Physics (PH)

Source uiougia sw as siiowii an rc circuit is connected to adc vo 10 kq 2uf 10k0 10k? iov the switch is initially open and the capacitor uncharged.at time t=0 t

SourcE Uiougia Sw as SiioWII An RC Circuit iS Connected to aDC VO 10 kQ 2uF 10k0 10k? iov The switch is initially open and the capacitor uncharged.At time t=0 the switch is closed. The voltage across the capacitor at t = 30us is (a) 5 mV (b) 7.5 mV (c) 10 mV (d) 20mV

1 Answer(s) Answer Now
  • 0 Likes
  • 1 Comments
  • 0 Shares
  • comment-profile-img>
    Lekhika Best Answer

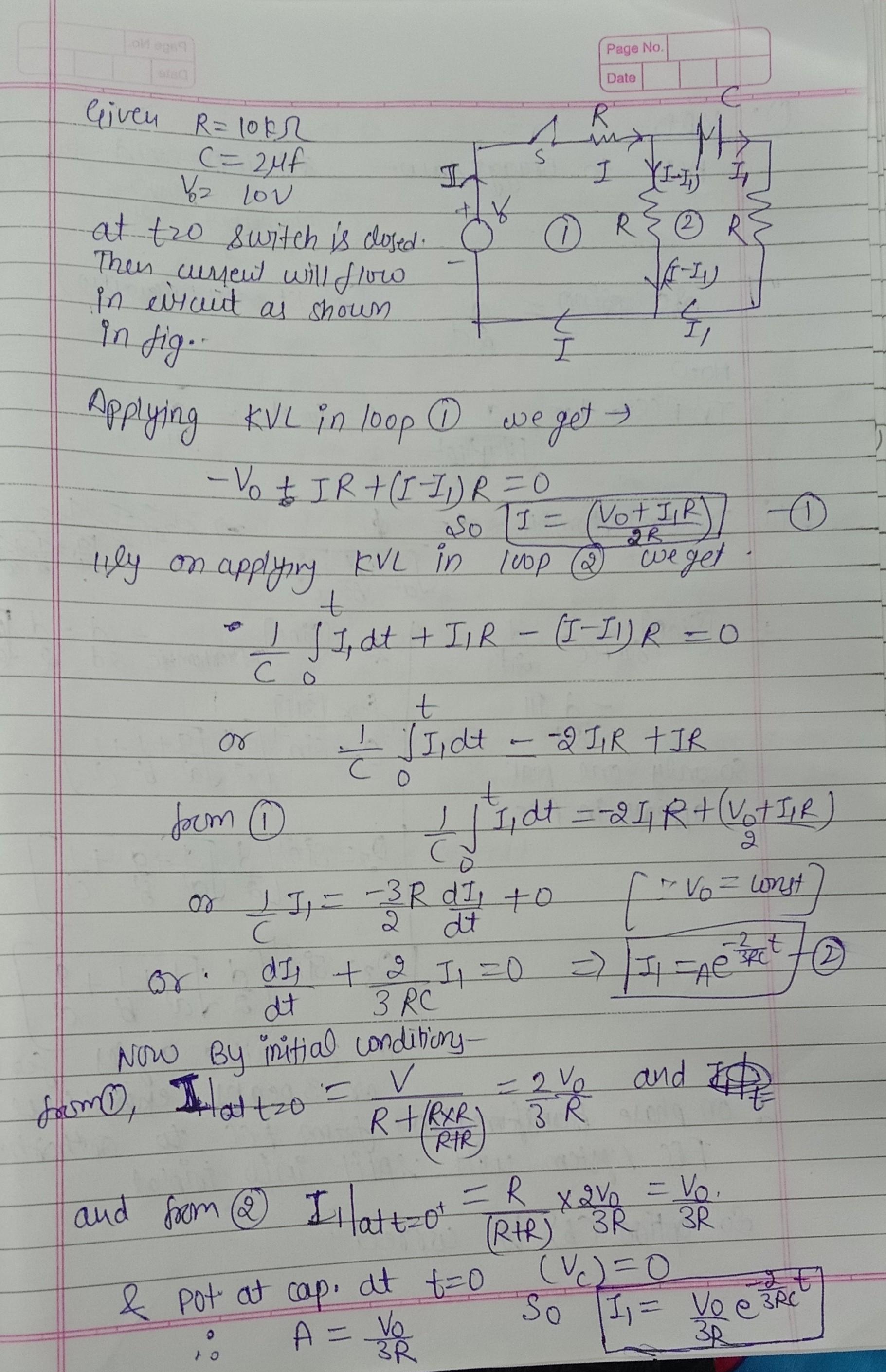

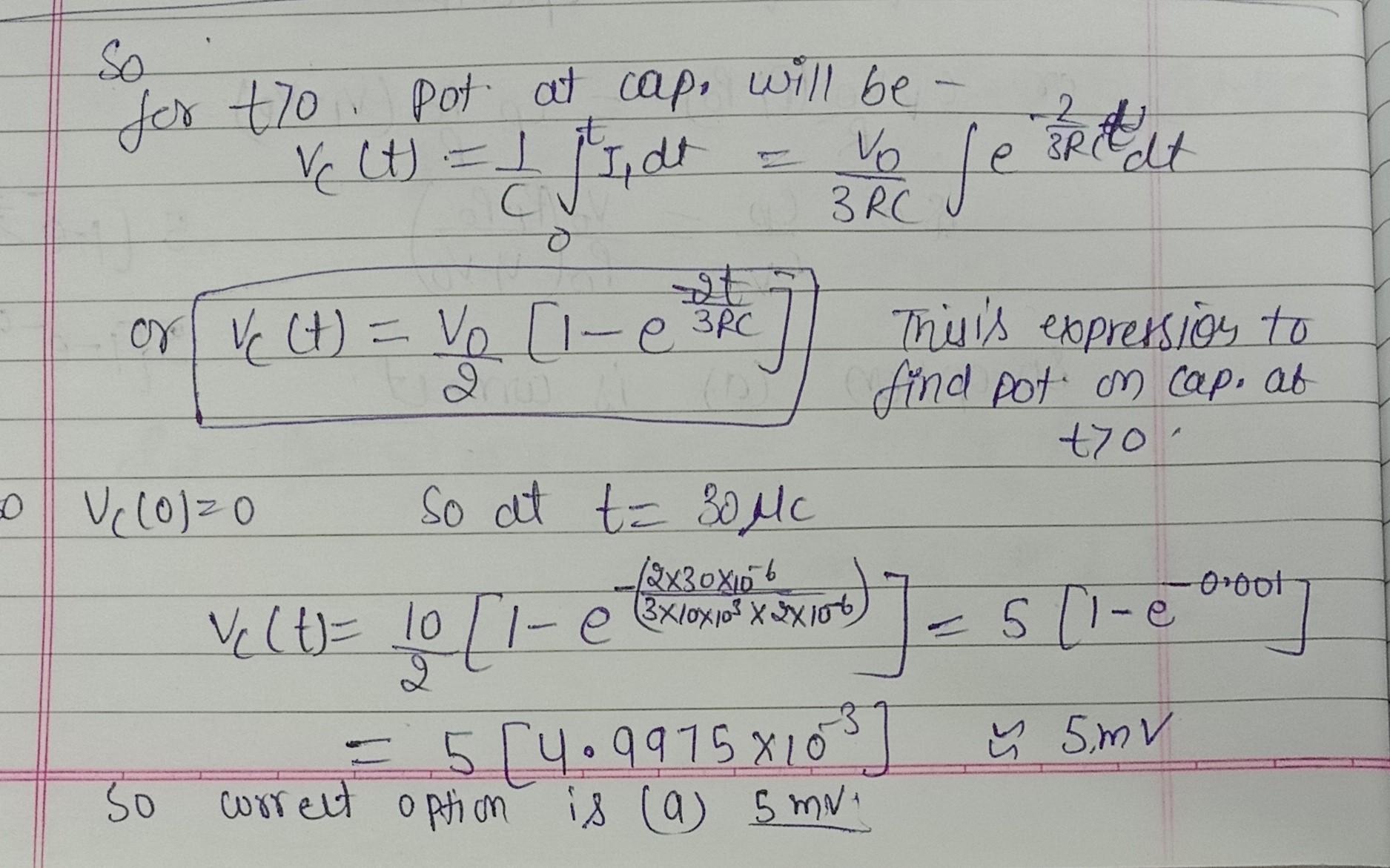

    Hi, The question is actually formula based but for the sake of clarity i've derived the expression first. pls see the attachment for solution.
