Structural geology

An igneous body shows two sets of vertical joints,the first set striking S40°E and the second striking S40°W.The foliation of the igneous body has a rake of 30° on the first and a rake of 40° on the second joint plane.Determine true dip of the foliation and direction.

2 Answer(s) Answer Now
  • 1 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Rahul kumar Best Answer

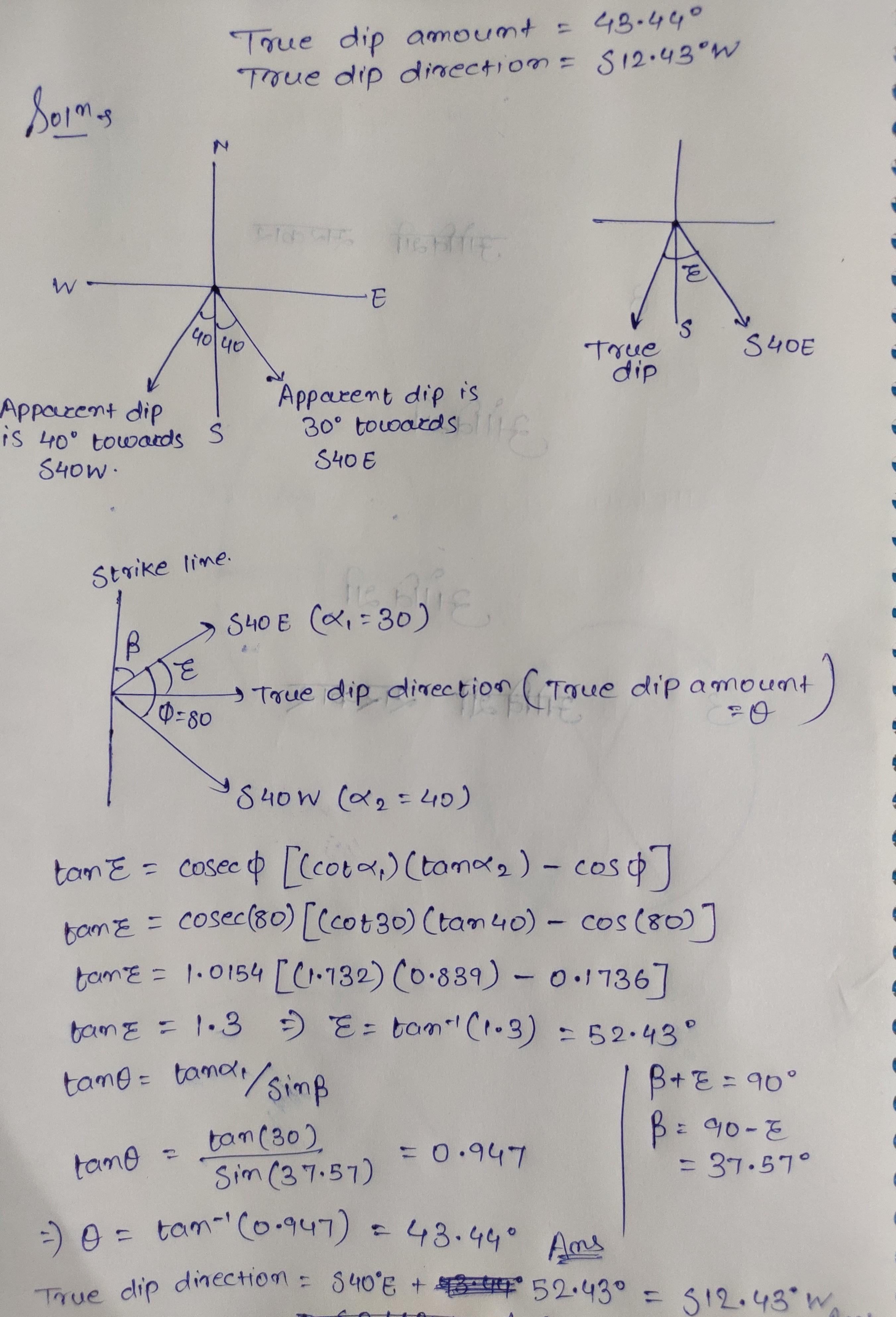

    True dip amount= 43.44 degrees & True dip direction = S12.43W Please see the attachment for detailed description.

  • comment-profile-img>
    Sajan sarthak best-answer

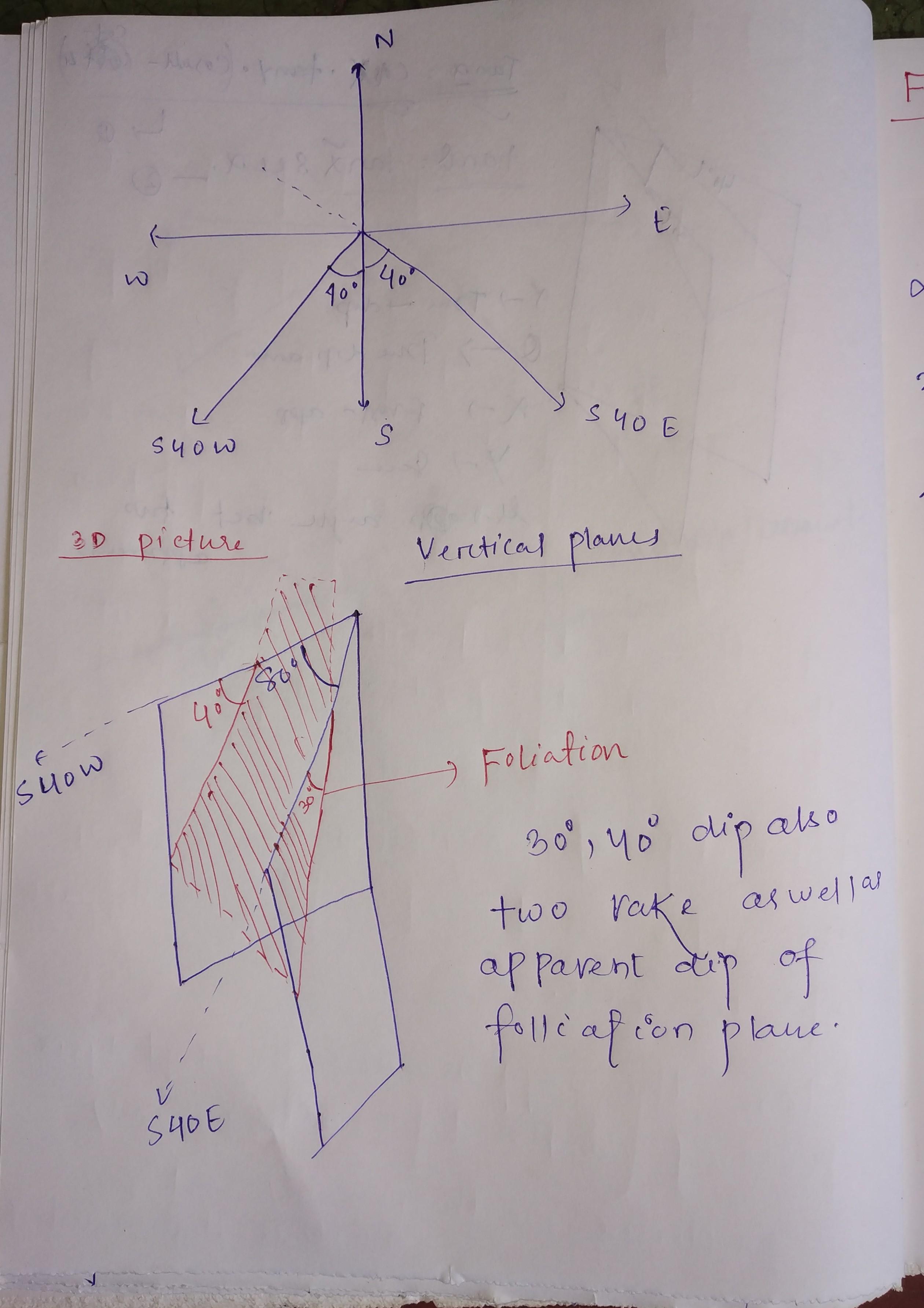

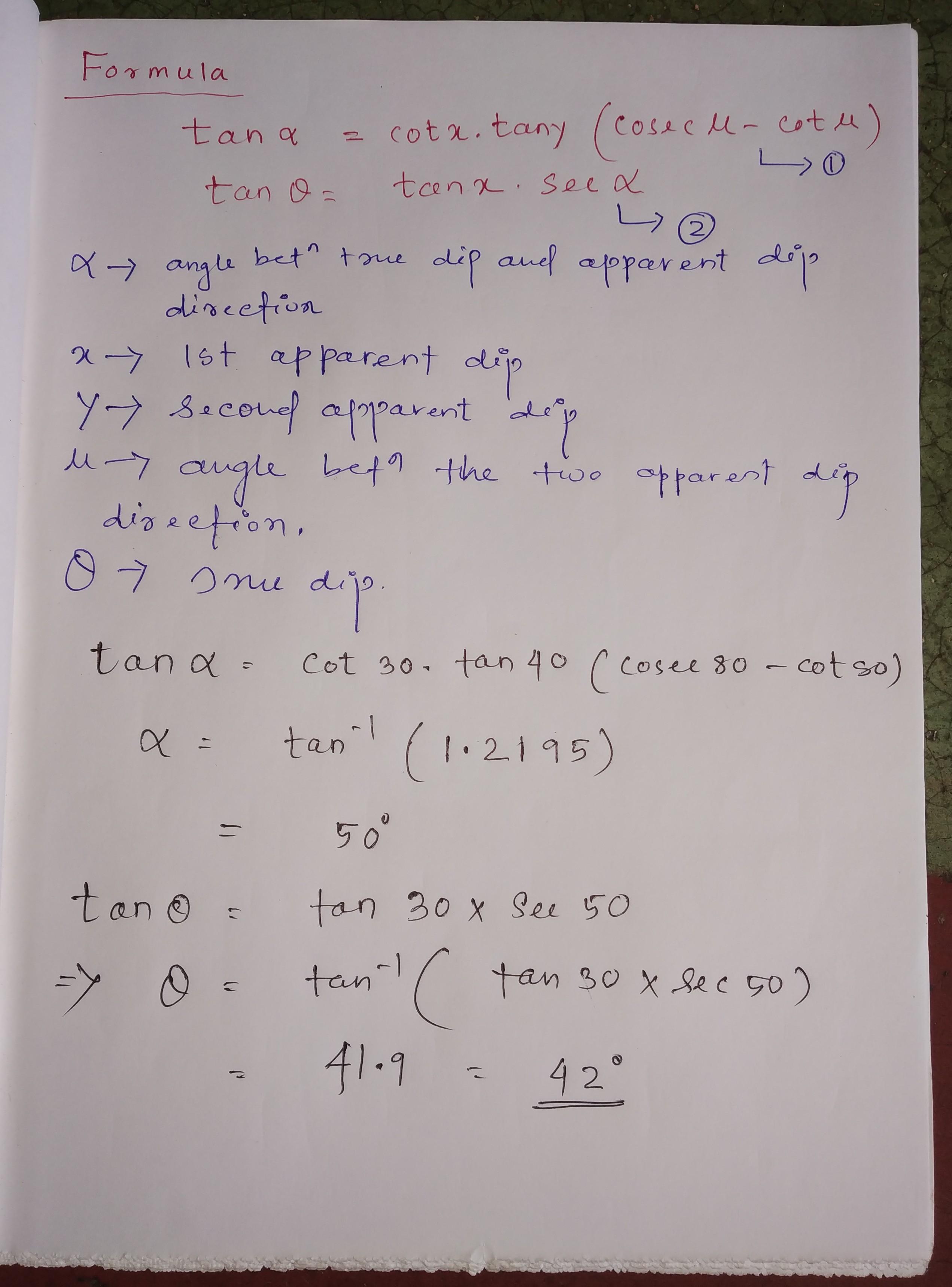

    This type of questions should only be approached by stereonet. But here is the solution In objective type i think this will not be asked but you can practice..

    eduncle-logo-app

    yes sir i was practicing and i faced a little problem.so i posted this question.

    eduncle-logo-app

    thank u sir. for the solution

    eduncle-logo-app

    no problem we are here for your guidance
