Silu Swain posted an Question
January 15, 2020 • 19:28 pm 10 points
  • IIT JAM
  • Physics (PH)

The circuit given below contains three identical resistors with resistance R, two identical inductors with inductance L and an idea battery with emf E. Ifi, and

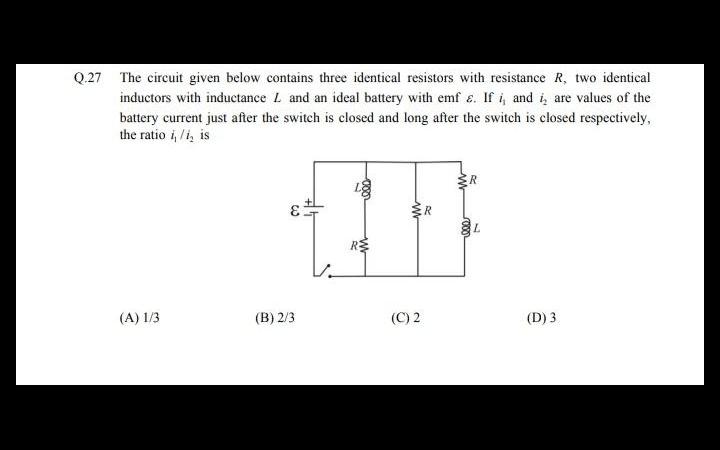

The circuit given below contains three identical resistors with resistance R, two identical inductors with inductance L and an idea battery with emf E. Ifi, and i, are values of the battery current just after the switch is closed and long after the switch is closed respectively, the ratio i,li, is (a) 1/3 (c) 2 (b) 2/3 (d) 3 LJAM GP-20121

1 Answer(s) Answer Now
  • 1 Likes
  • 3 Comments
  • 0 Shares
  • comment-profile-img>
    Silu swain

    there is no diagram. But I am trying to download from internet

  • comment-profile-img>
    Eduncle Best Answer

    Dear Silu,

    Greetings!!

    Please share the image of circuit.

    Thank you.
