Padmanabh das Asked a Question
May 12, 2022 8:00 ampts 30 pts
The logic ckt below has the input waveforms A and B as shown.Pick out the correct output waveform.
  • 1 Answer(s)
  • 0 Likes
  • 5 Comments
  • Shares
  • Padmanabh das
    Y=AB got it sir but the waveform sir not clear .
    Likes(0) Reply(0)
  • Padmanabh das
    sir?
    Likes(0) Reply(0)
  • Padmanabh das
    logically solving part understood but drawing the waveform not understood sir,
    Likes(0) Reply(0)
  • Padmanabh das
    not understood sir?
    Likes(0) Reply(0)
  • Ravi bhushan thankyou

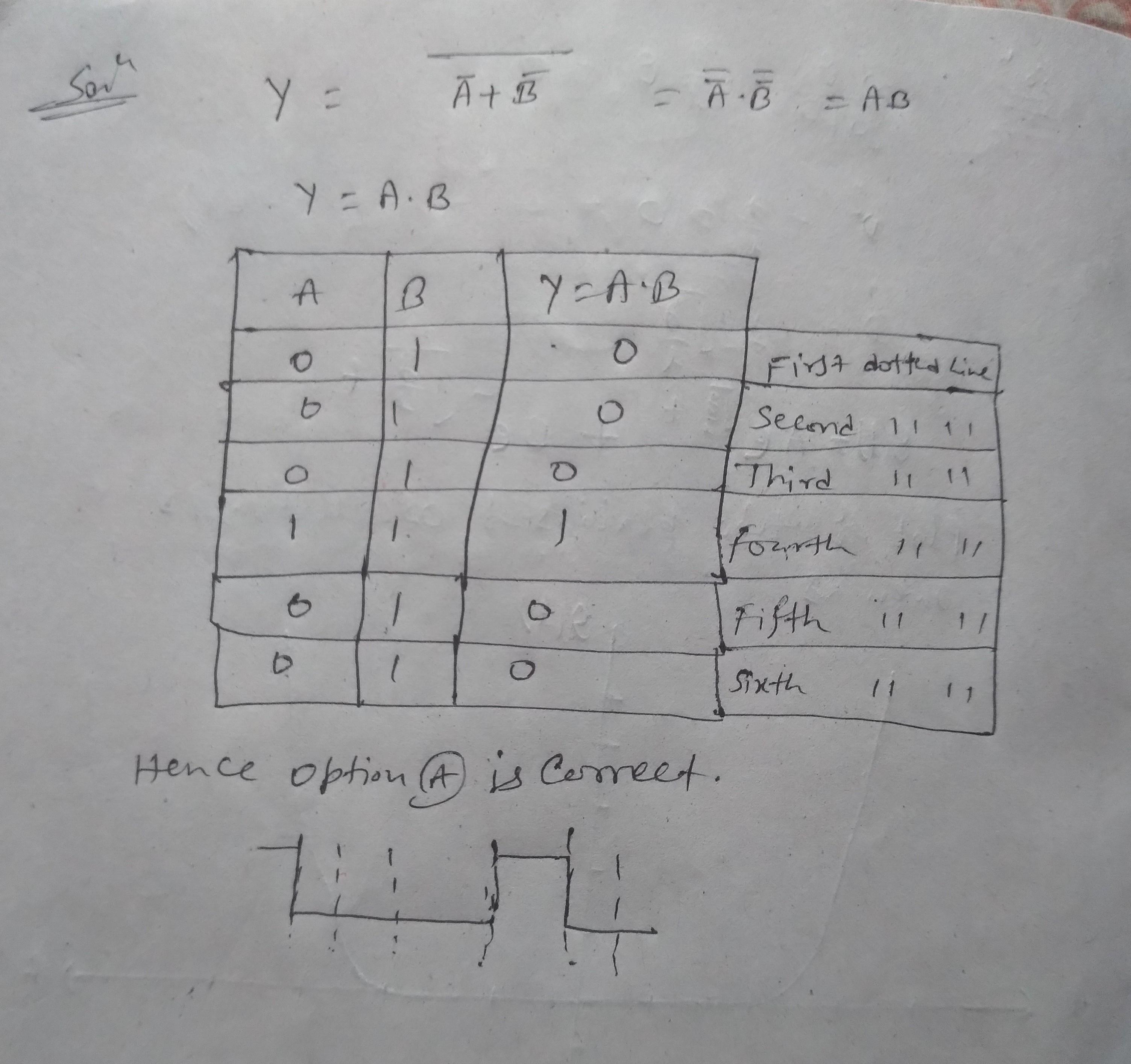

    Here is the detailed solution.
