Chetan suryawanshi Asked a Question
May 31, 2020 2:28 pmpts 30 pts
The logic expression for the output Y of the following circuit is (I1T-JAM PHYSICS 2008) P Y R S Fig. (B) P+Q+ QR+S ) P+Q+ QR S (D) P+Q+QR+S C) P+Q+ QR S
  • 3 Answer(s)
  • Shares
  • Ruby negi thankyou
    option d is correct...

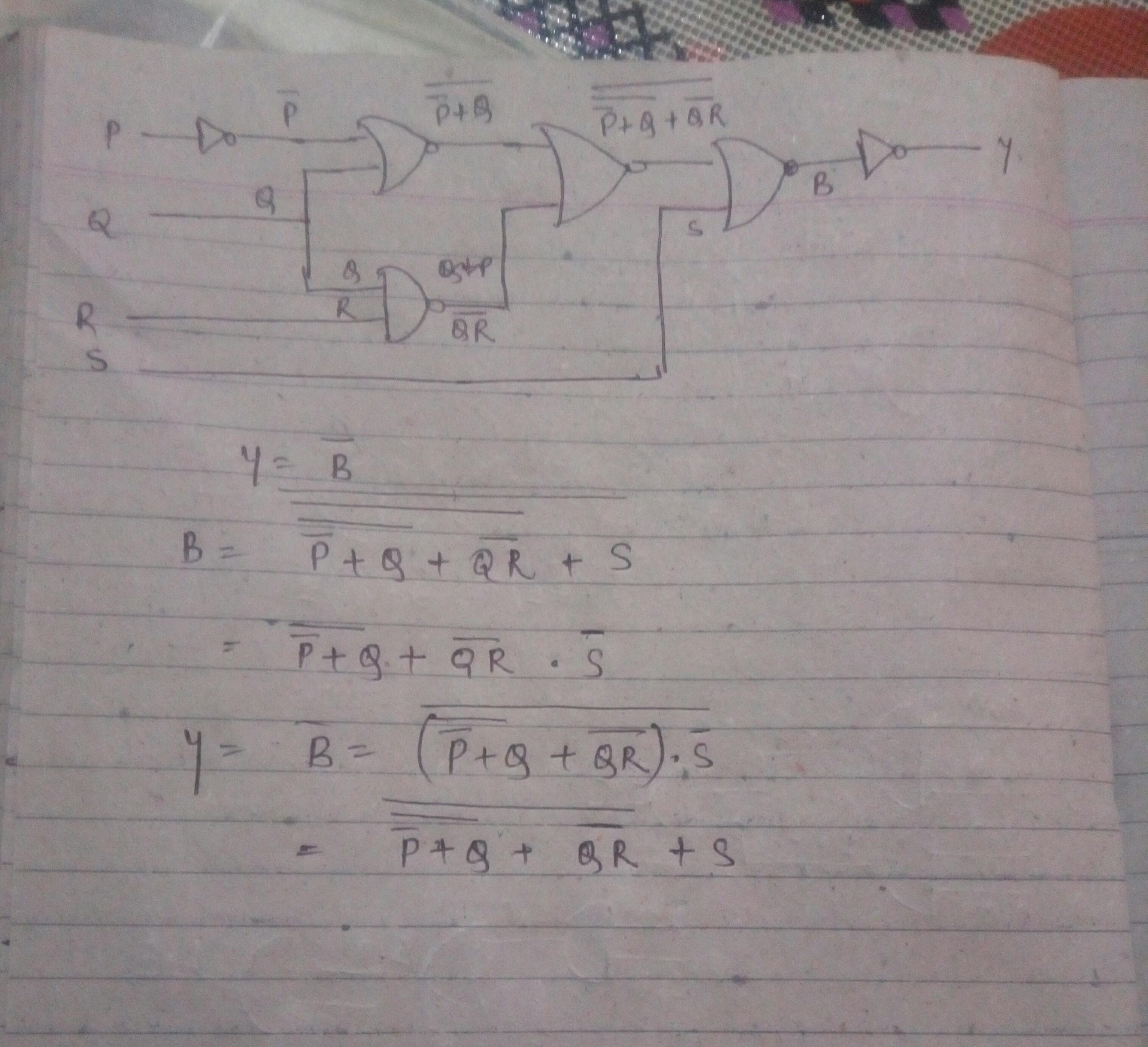

    • cropped-224136265.jpg
    Likes(1) Reply(0)
  • Chandra dhawan
    see answer dear....

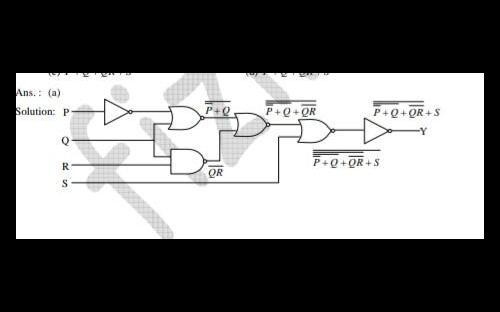

    • cropped1446325177.jpg
    Likes(1) Reply(1)
    Chandra dhawan
    it will you alot
  • Dhairya sharma thankyou
    see the step u want again
    • cropped5766611087608716801.jpg
    Likes(2) Reply(0)
  • Dhairya sharma
    used gate

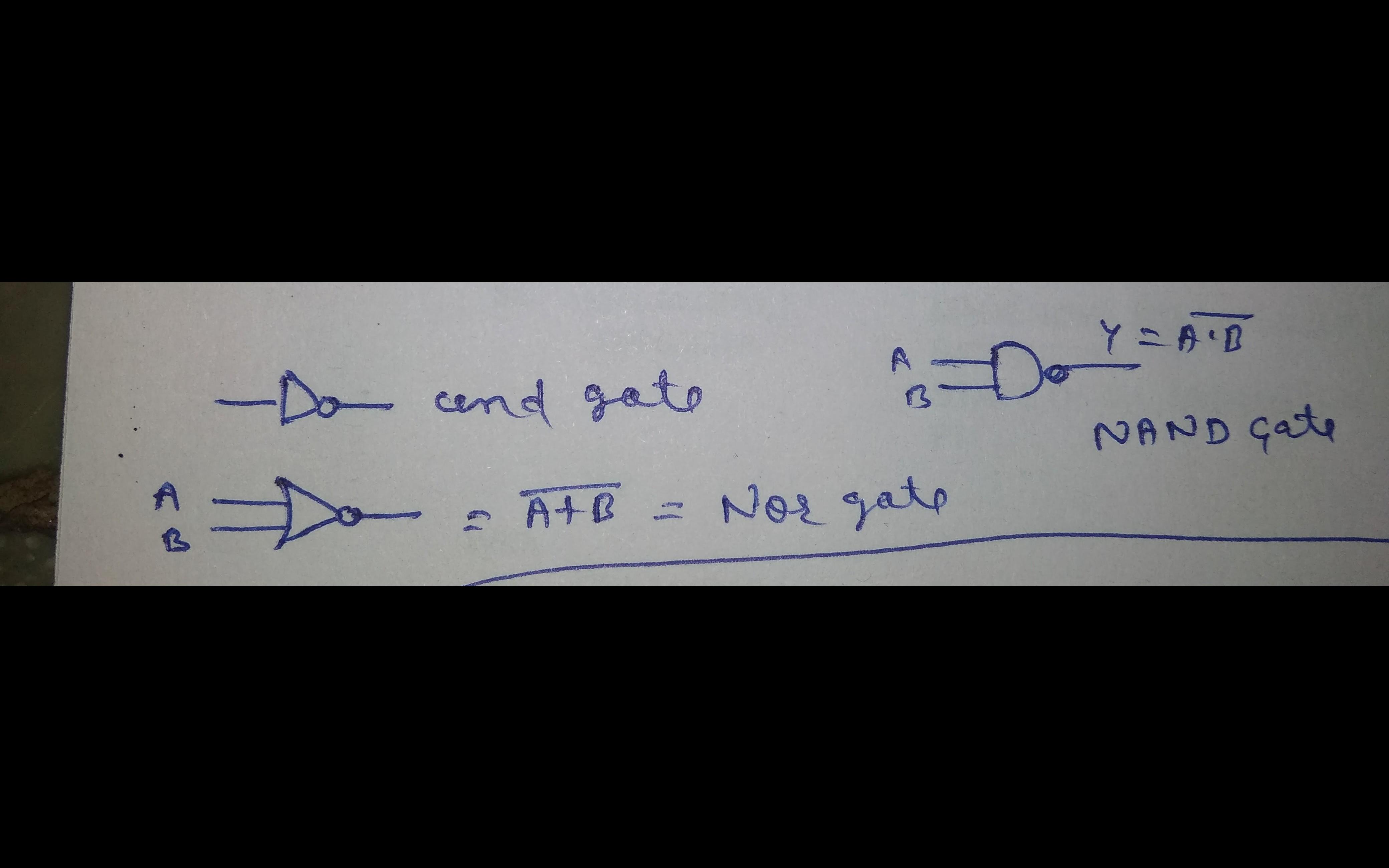

    • cropped2557627825706924231.jpg
    Likes(1) Reply(0)
  • Dhairya sharma Best Answer
    see attached dear

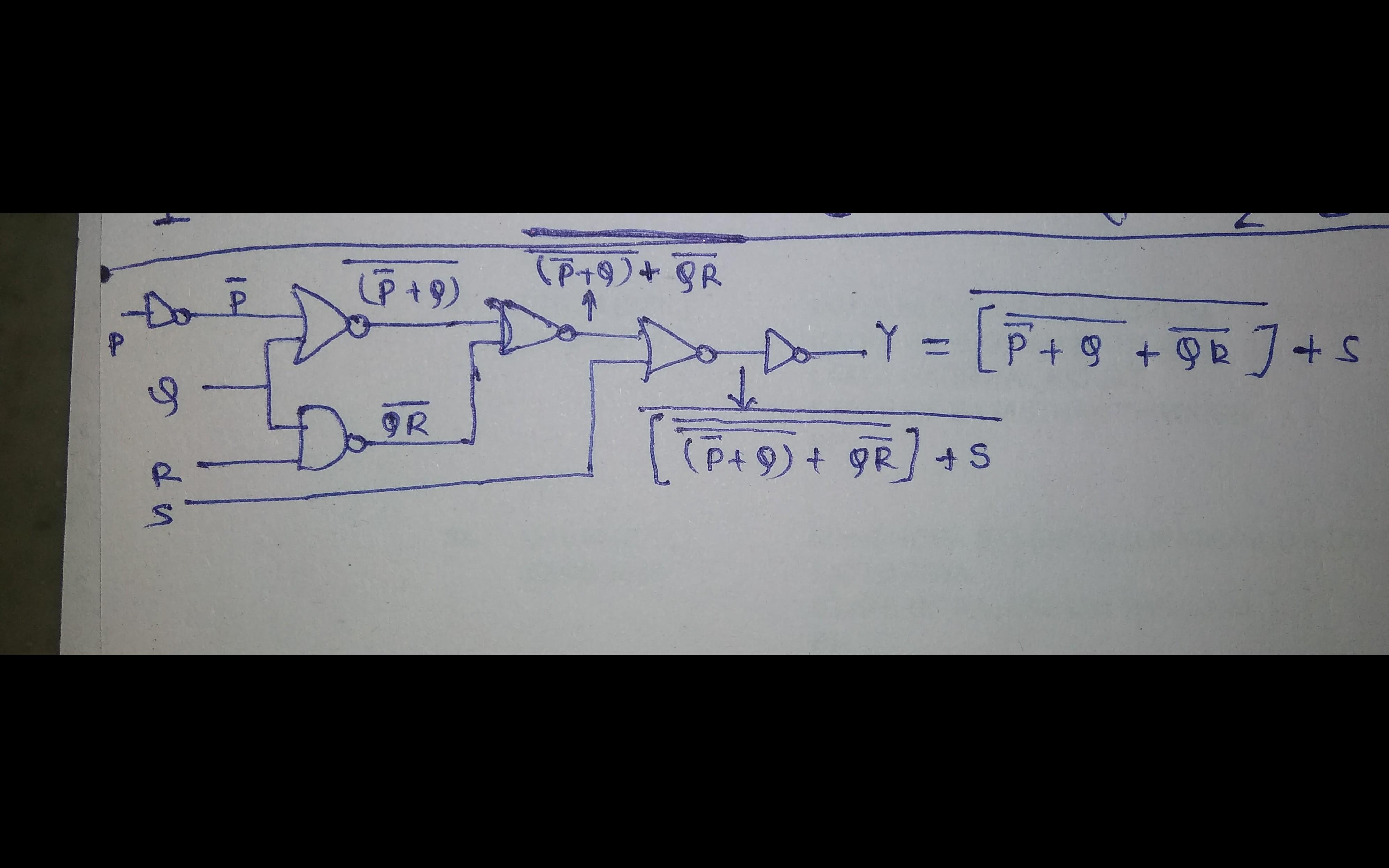

    • cropped1268823264980577133.jpg
    Likes(2) Reply(4)
    Dhairya sharma
    dear see solution carefully.
