Sudarshan posted an Question
April 21, 2020 • 00:59 am 30 points
  • IIT JAM
  • Physics (PH)

The minimum value of the base current i3 required to saturate the transistor shown in figure is given by (a) 0.2 ma (b) 10 maa (c) 1.2 ma (d) 0.12 ma q70. 12v p

The minimum value of the base current I3 required to saturate the transistor shown in figure is given by (a) 0.2 mA (b) 10 mAA (c) 1.2 mA (d) 0.12 mA Q70. 12V PDc500 L'CELsar=0V 1.2k R m VIN 7TT7

3 Answer(s) Answer Now
  • 0 Likes
  • 4 Comments
  • 0 Shares
  • comment-profile-img>
    Shanu arora

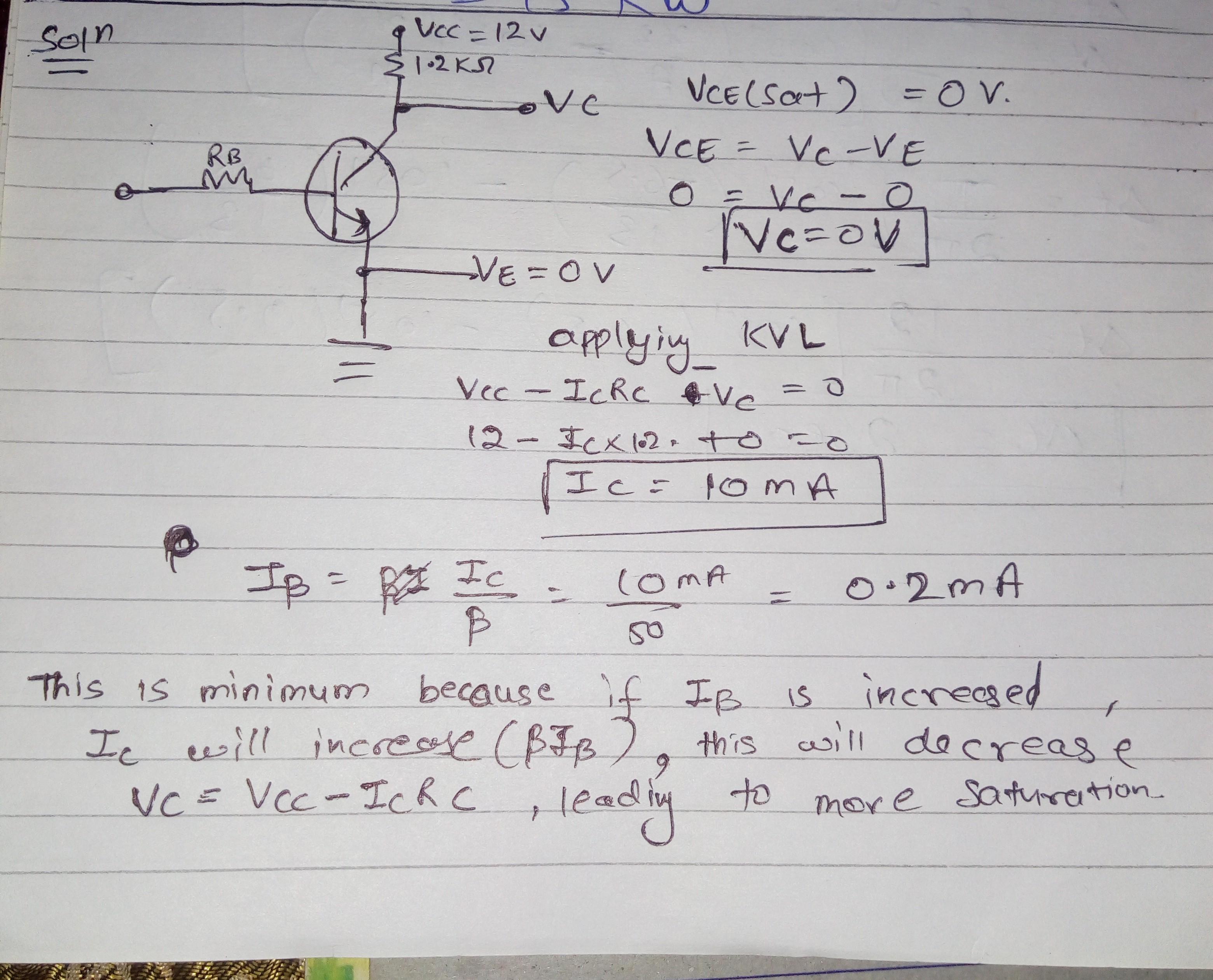

    ans is 0.2mA ,this is minimum saturation current because if we increase base current ,it increases ic further ,which decreases Vc as Vc=Vcc-Ic*Rc and hence leading to more saturation .feel free to ask doubts , best regards.

  • comment-profile-img>
    Abhishek singh Best Answer

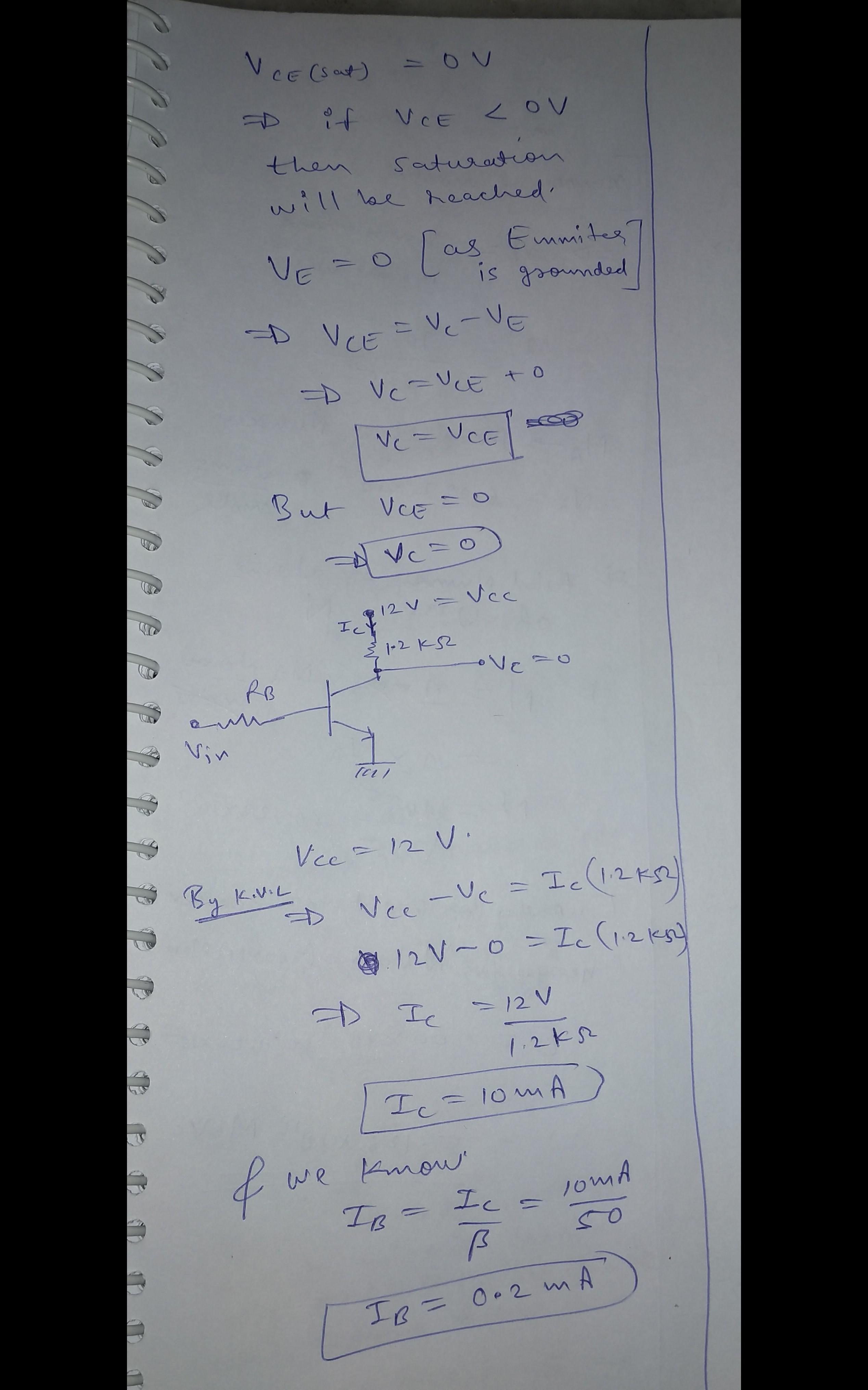

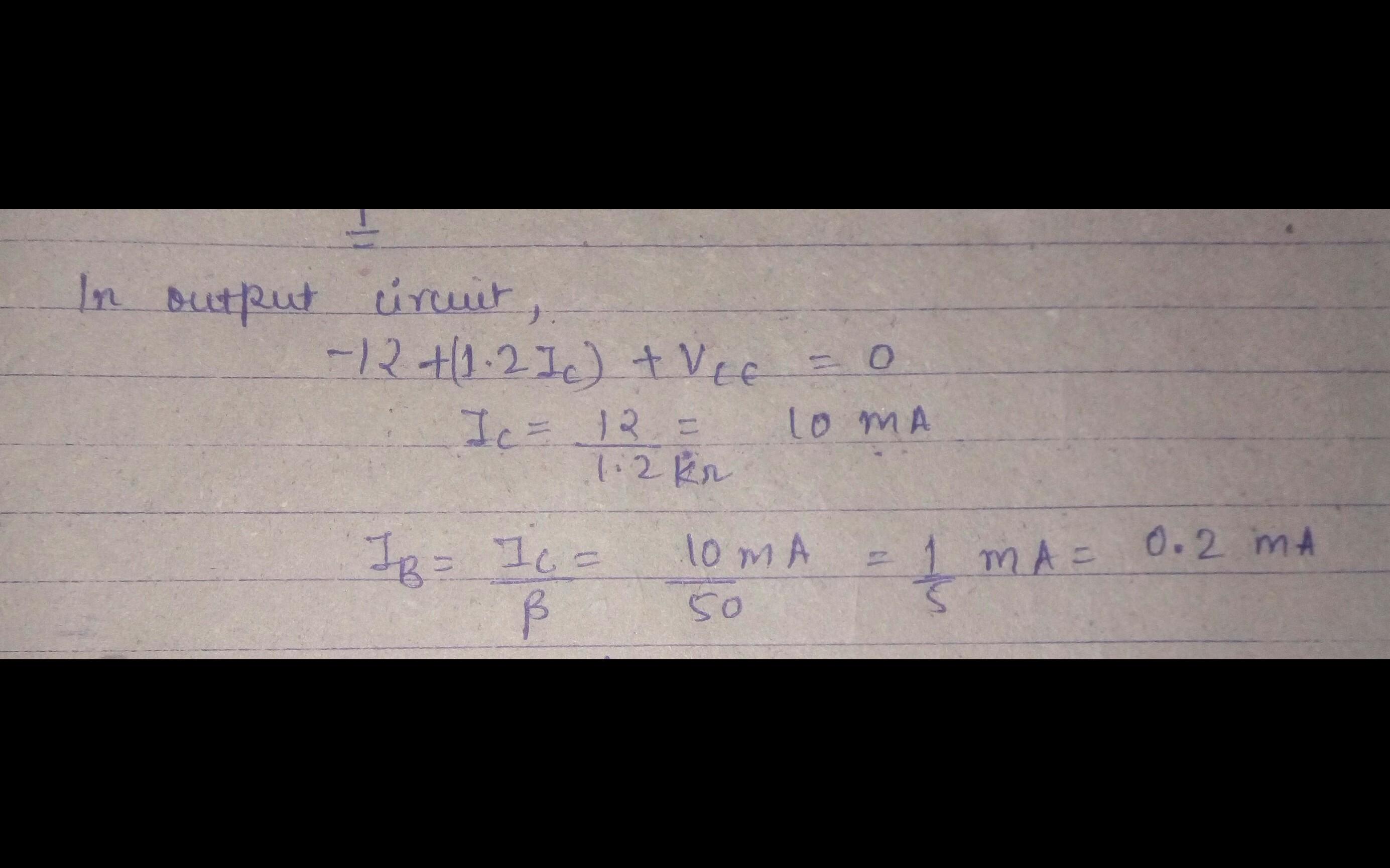

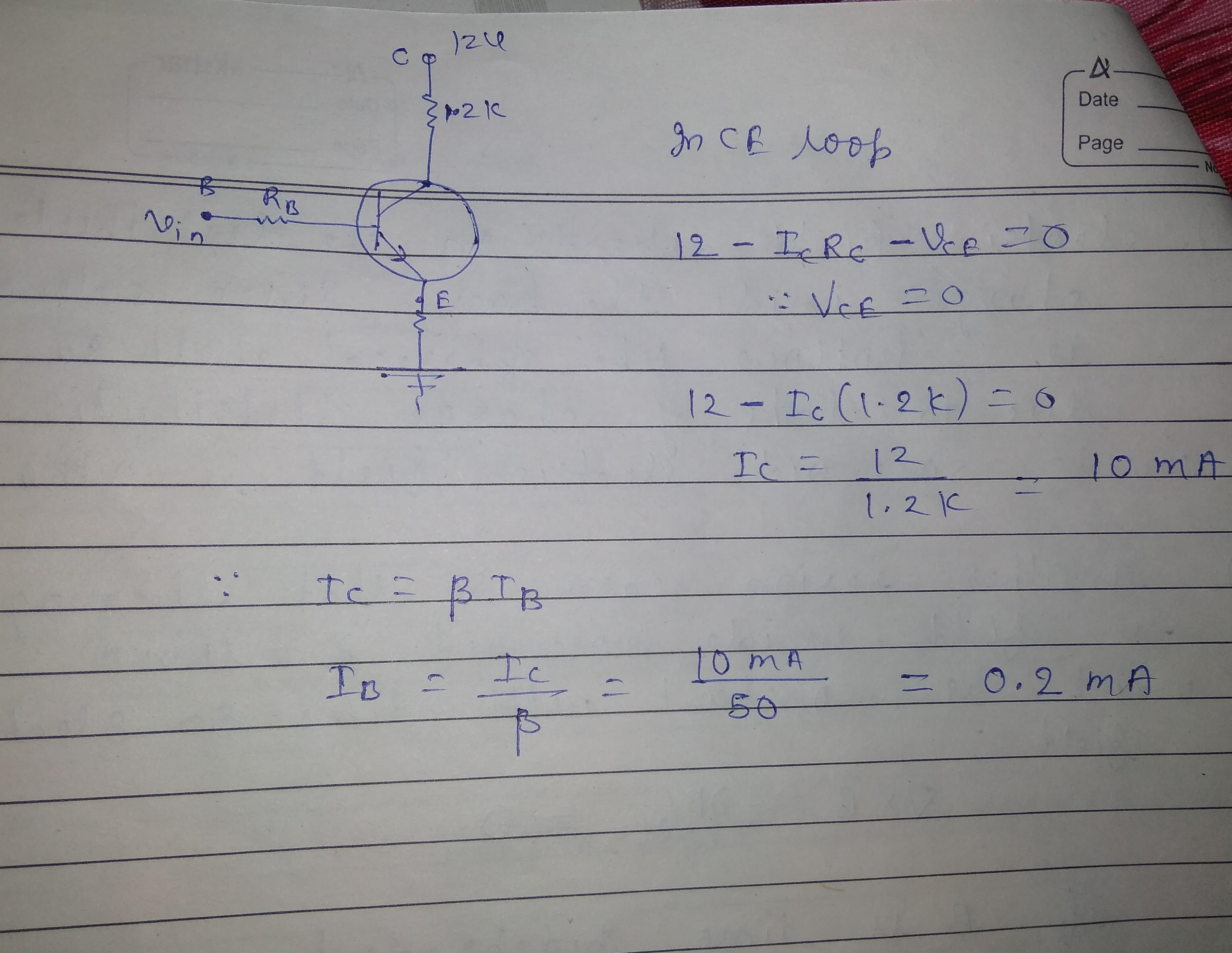

    Option A is correct. Ve is zero as emitter is grounded. And then applying kvl will give the solution. Best regards.
