The refractive indices of a biaxial mineral are 1.2,1.4 and 1.5. 2v angle is ?

2 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Sajan sarthak best-answer

    tulene University material

    eduncle-logo-app

    ok sir.i will analyse it tomorrow. thank u so much sir on helping in solving my queries.

  • comment-profile-img>
    Sajan sarthak Best Answer

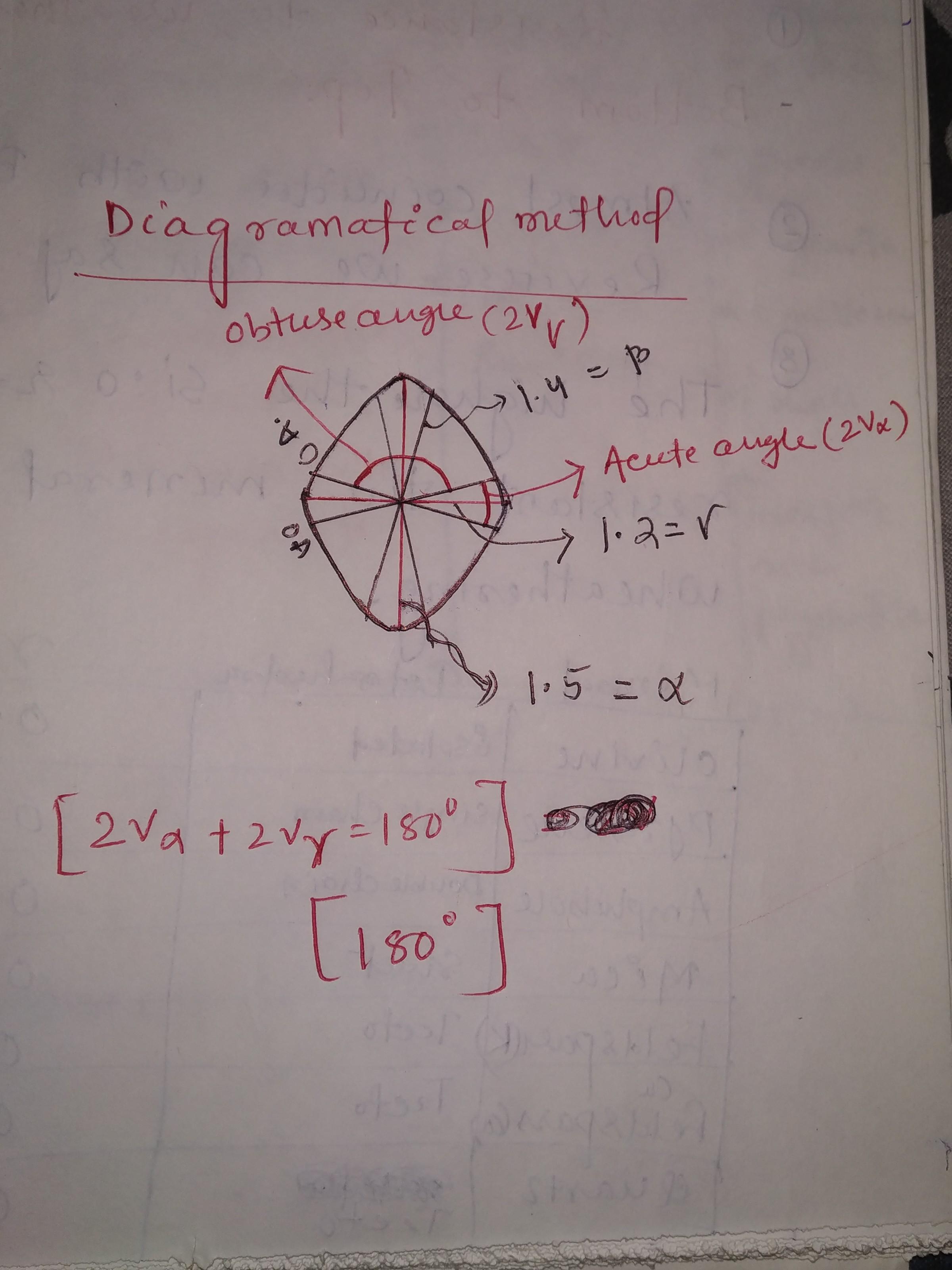

    Find out by doing it diagramtically

    eduncle-logo-app

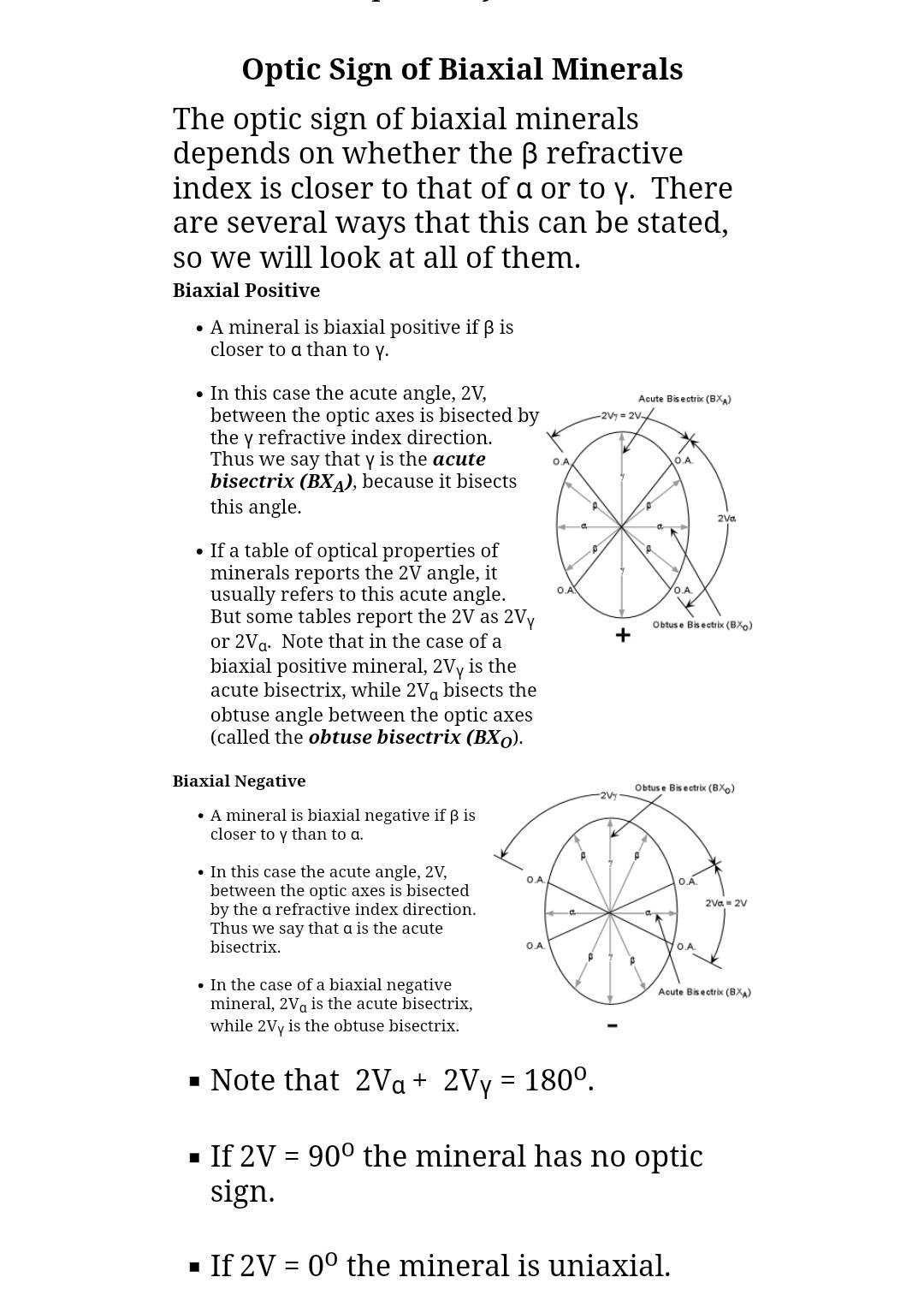

    take 1.5 as alpha as ellipsoid semi major axis infact here ellipse. the perpendicular to it 1.2 as semi minor axis then draw the ellipse. then find out at which line 2.8 that is (1.4+1.4) beta fits in by moving your scale. there will be two beta on both side they are the circular section so perpendicular to beta will be two optic axis just draw them and see the angles obtuse and acute.

    eduncle-logo-app

    as these are just numbers so you can multiply any integer to make the large in length like 2* 1.5 =3 ,2*1.2 = 2.4 , 1.4*2= 2.8
