The simplified logic expression for the following logic diagram is a b c y=ca +b) +ba y = ac (a) (b) y ac(a+ b) (c) (d) y abc

The simplified logic expression for the following logic diagram is A B C Y=CA +B) +BA Y = AC (A) (B) Y AC(A+ B) (C) (D) Y ABC
  • 1 Answer(s)
Answer Now
  • 0 Likes
  • 2 Comments
  • Shares
  • Mamata mandal
    yes, I got same answer
    Likes(0) Reply(0)
  • Ravi bhushan thankyou

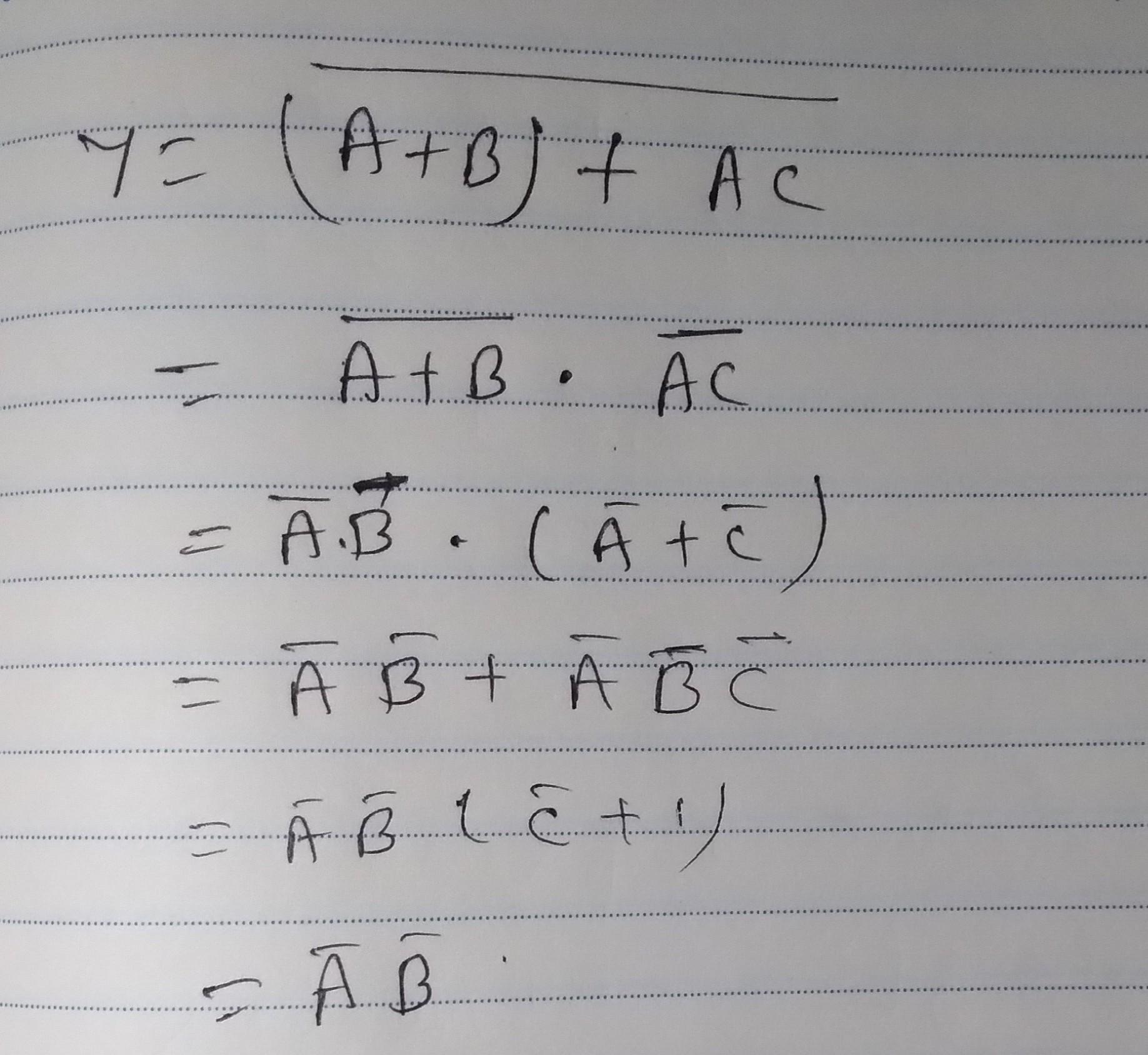

    All options are wrong. Here is the detailed solution.
    • cropped5334558276252423463.jpg
    • cropped6118273174242001077.jpg
    Likes(0) Reply(0)
