The solution given isn't correct. We are asked to find Vceq but in the solution only Vo is solved.
USP 14. 6th question The solution given isn't correct. We are asked to find Vceq but in the solution only Vo is solved.
0 Answer(s)
Answer Now
- 0 Likes
- 3 Comments
- 0 Shares
-
![comment-profile-img]()
>
-
![comment-profile-img]()
>
Somnath
Here you are asked to find quiescent collector voltage not Vce.If you are asked to find Q point then you have to find Vce and Ic.Here quiescent collector voltage means voltage of the collector at Q point.So you have to find Vc(Voltage of the collector with respect to ground) which is Vce+Ve.
-
![comment-profile-img]()
>
Paltu Sen
![best-answer]()

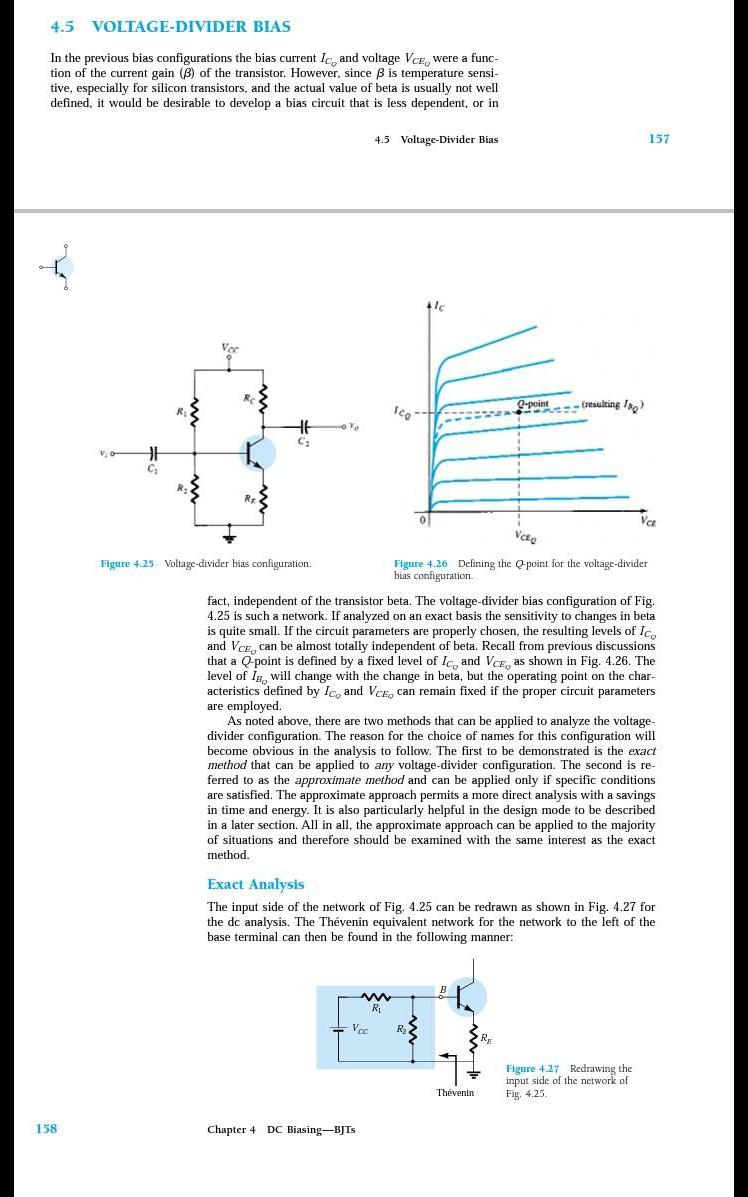

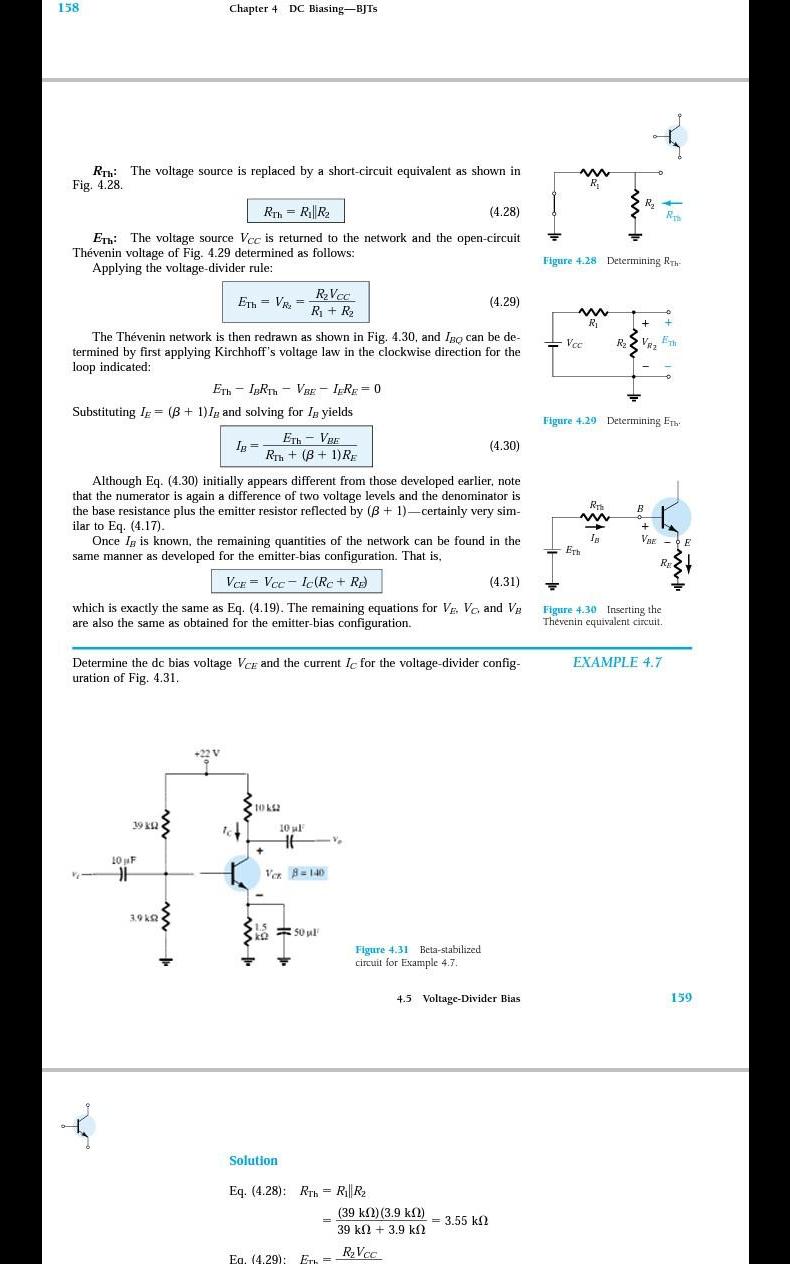

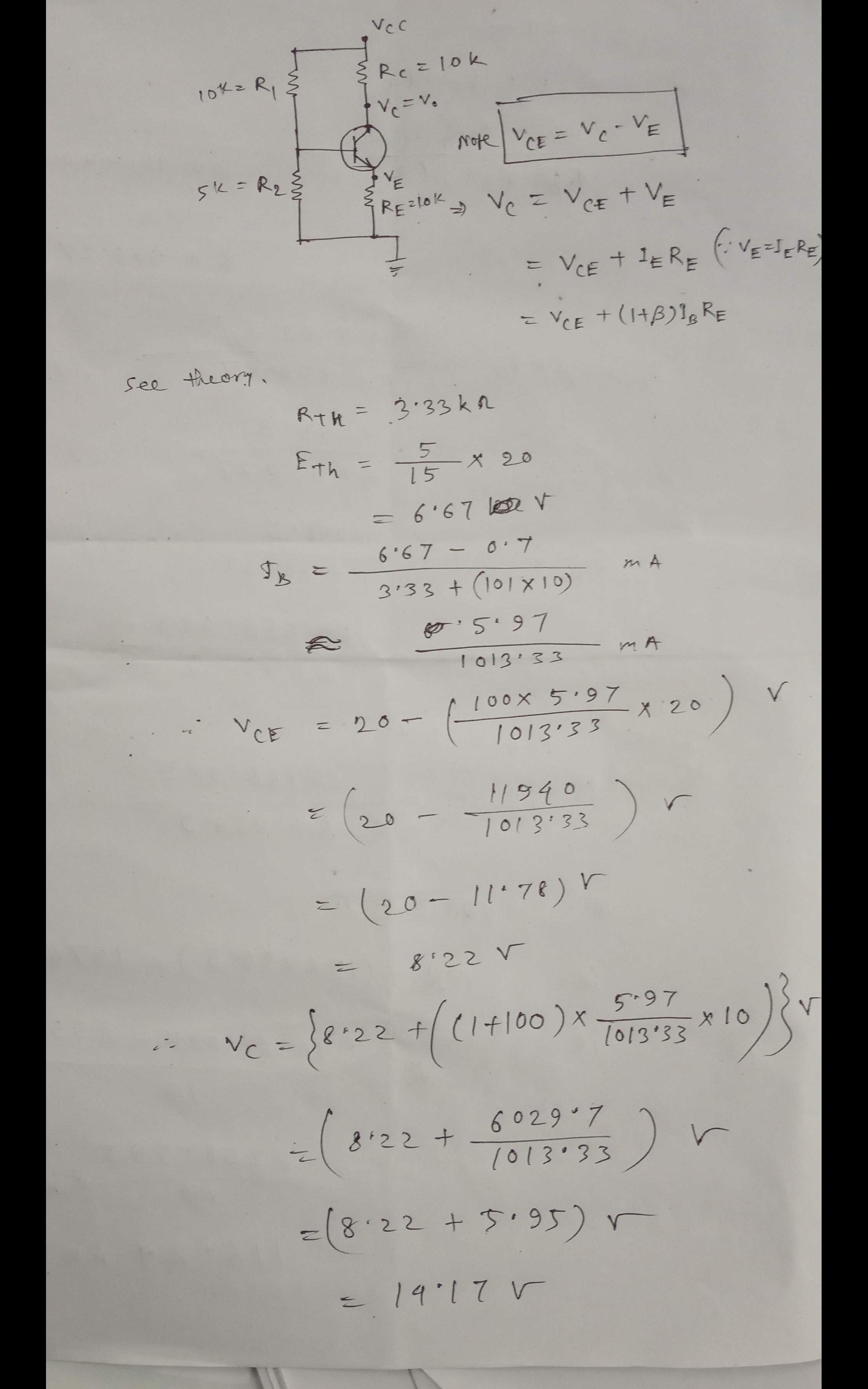

ans: C)14 volts..... actually Vce=Vc-Ve. here Vc=Vo....you r misunderstanding the answer given in your book..i think the answer is correct...see the attached files
![upload_1576481774732.jpg]()
![upload_1576481804488.jpg]()
![upload_1576481822113.jpg]()
Do You Want Better RANK in Your Exam?
Start Your Preparations with Eduncle’s FREE Study Material
- Updated Syllabus, Paper Pattern & Full Exam Details
- Sample Theory of Most Important Topic
- Model Test Paper with Detailed Solutions
- Last 5 Years Question Papers & Answers
Sign Up to Download FREE Study Material Worth Rs. 500/-
Paltu Sen
you r not asked to find Vceq ..you are asked to find Vcq i.e. voltage appearing at collector terminal when the q point is established by the given circuit elements
