Umme Asked a Question
September 23, 2020 4:56 pmpts 30 pts
The voltage regulator circuit shown in the figure has been made with a Zener diode rated at 15V, 200mW It is required that the circuit should dissipate 150mW power across the fixcd load resistor R: 1. 2380 V RL3 V For stable operation of this circuit, the input voltage V, must have a range ITIFR 2012] (b) 15.5 V - 20.5 V (c) 15.5 V- 22.5 V (e) 15.0 V - 20.5 V (a) 17.5 V- 20.5 V (d) 17.5 V - 22.5 V
  • 2 Answer(s)
  • 1 Likes
  • 2 Comments
  • Shares

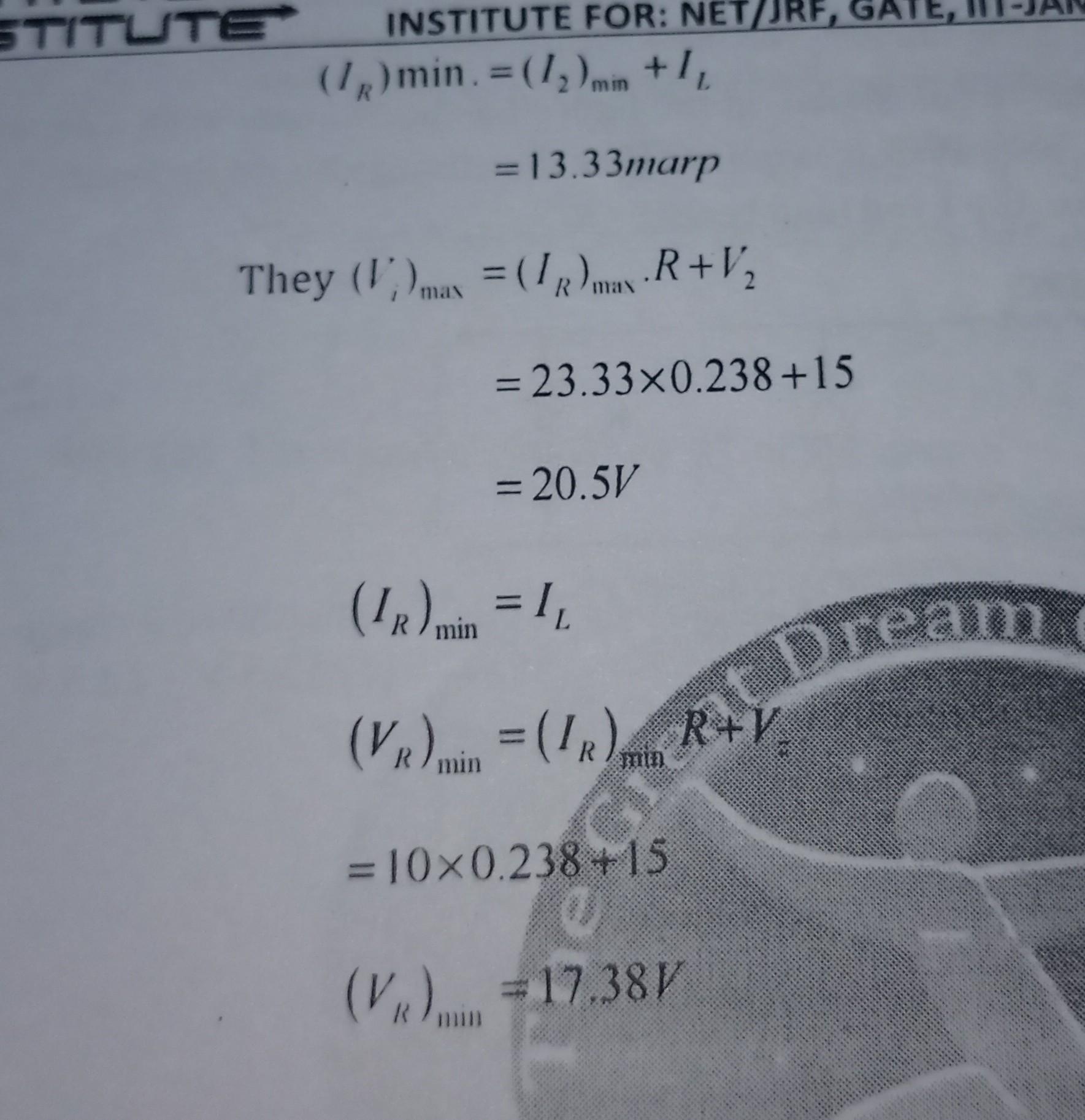

  • Chandra dhawan thankyou
    remaining part..
    • cropped8934053398067486211.jpg
    Likes(1) Reply(0)

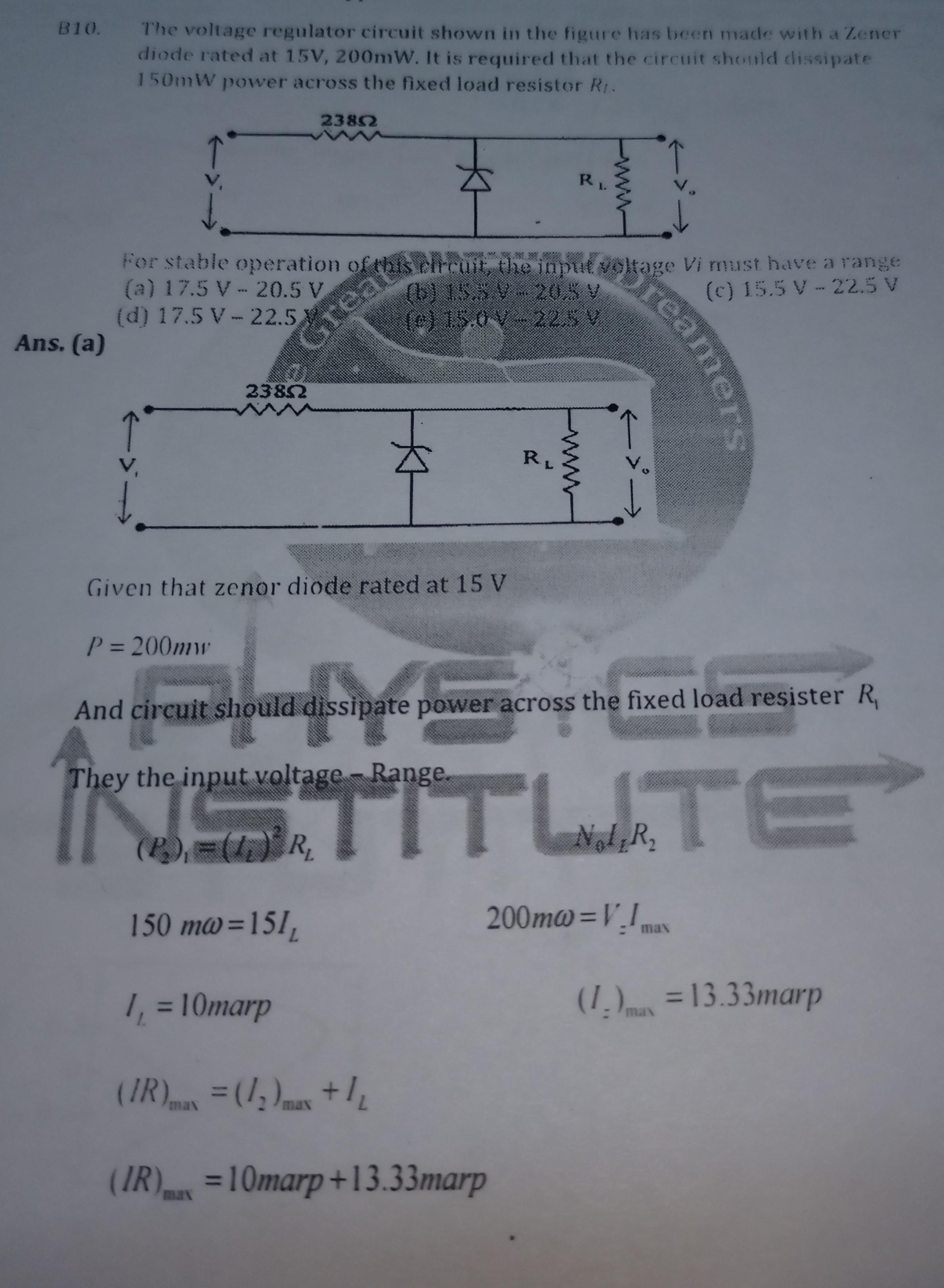

  • Chandra dhawan Best Answer
    see attachment.. dear
    • cropped4575561547514558908.jpg
    Likes(1) Reply(1)
    Chandra dhawan
    see attachment and ...see next cmnt also..
