Himanshu Pandey Asked a Question
April 22, 2020 2:18 ampts 30 pts
an ideal gas has a specific heat ratio Cp/Cv=2. Starting at temperature T1 the gas undergoes an isothermal compression to increase its density by a factor of 2 after this an adiabatic compression increase its pressure by factor of 2. The temperature of the gas at the end of the second process would be........
  • 3 Answer(s)
  • Shares
  • Ruby negi thankyou
    hope this page will help u... I used the isothermal and adibatic equation of state...
    • cropped-52086512.jpg
    Likes(2) Reply(0)

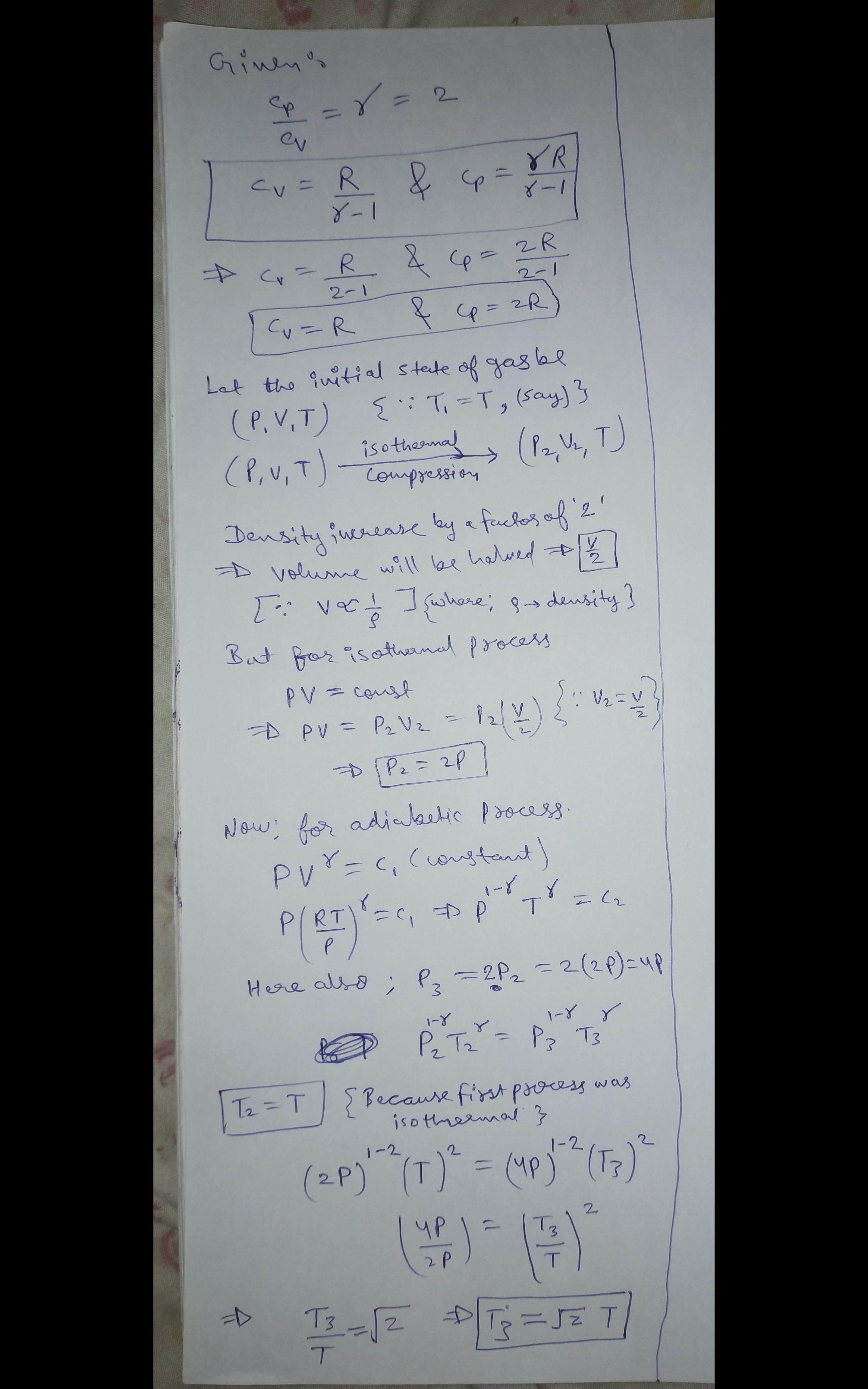

  • Abhishek singh Best Answer
    I have attached a detailed solution. In the begining of solution, I have given some extra formulae which will help you to find out Cv and Cp from given Y(gamma). Other than that I ...
    Show more
    • cropped4103462379119700978.jpg
    Likes(1) Reply(0)

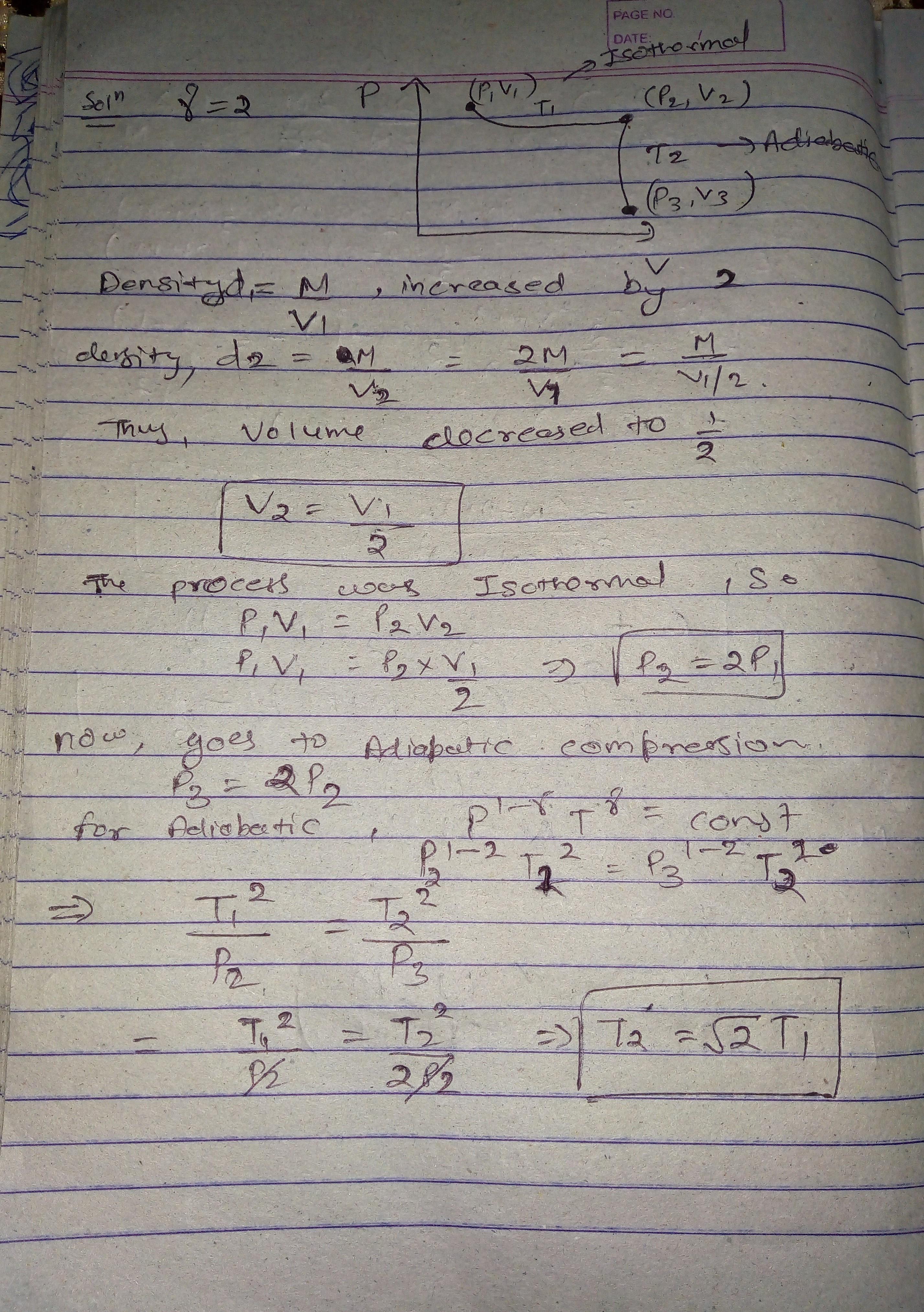

  • Shanu arora thankyou
    solution: here is the method and the solution. I think this question can be done without doing the density part also, bcz it doesn't play any significant step for the final step, s...
    Show more
    • cropped1779266075.jpg
    Likes(1) Reply(0)
