Priya Asked a Question
March 5, 2021 12:34 pmpts 30 pts
) Two wires A and B of the same material and equal length but of radii r and 2r are soldered coaxially. The free end of B is twisted by an angle . Find the twist angle 6 at the junction and the torsional rigidity of the complete wire.
  • 1 Answer(s)
  • 1 Likes
  • 1 Comments
  • Shares
  • Jeevesh thankyou

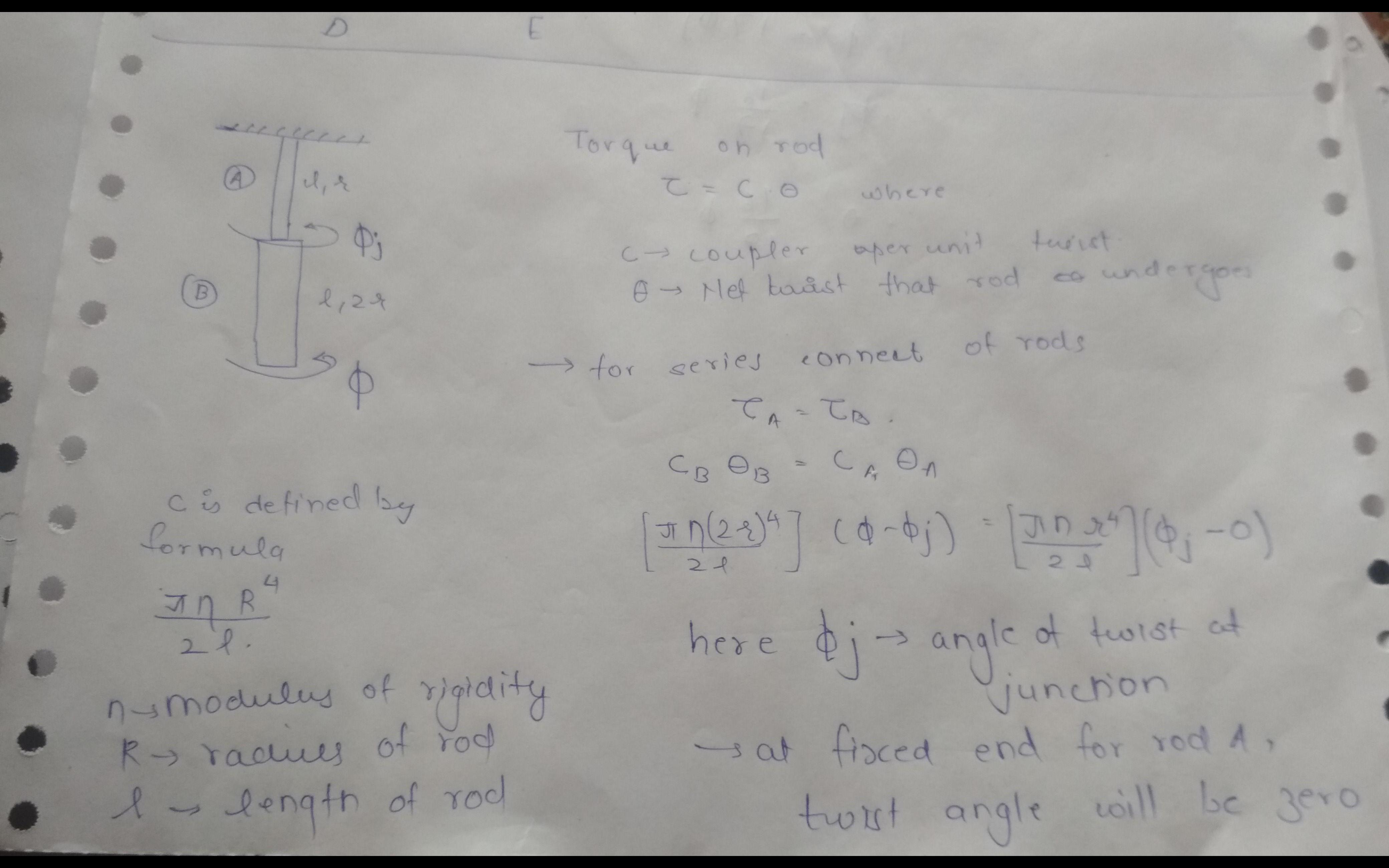

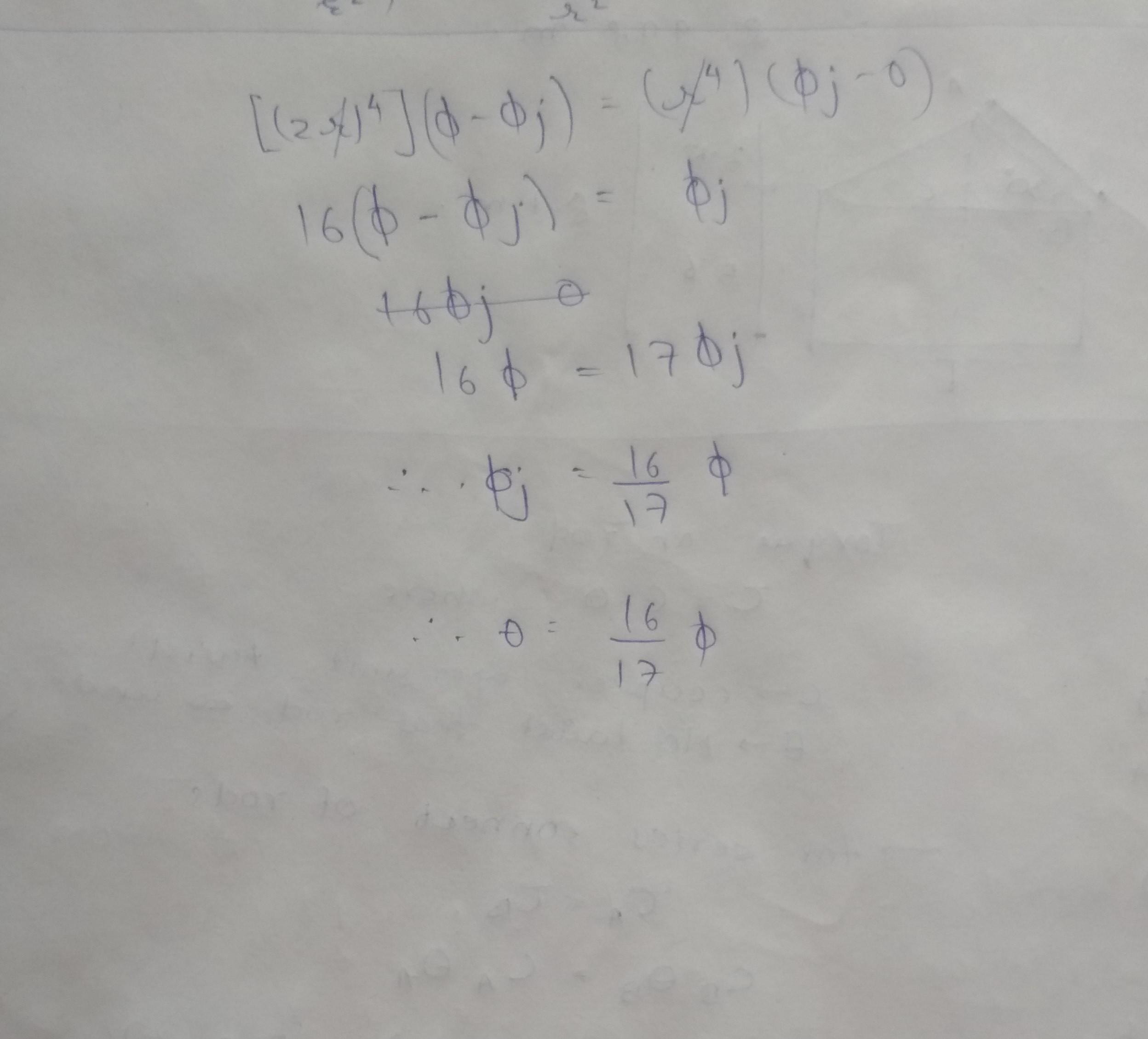

    please see the attachment for details.
    • cropped121168149.jpg
    • cropped723369373.jpg
    Likes(0) Reply(0)
