Tejas Asked a Question
December 16, 2019 11:27 ampts 15 pts
I did not understand how to get the Vcc equation provided in the solution. Maybe KVL is applied wrong?
  • 3 Answer(s)
  • like-1
  • 1 Likes
  • 5 Comments
  • Shares
  • Paltu Sen thankyou
    since the options are not very different, they should mention the value of Vbe
    Likes(0) Reply(0)
  • Paltu Sen thankyou
    but if choose Vbe=0.6 V then answer is B) 107.08k
    Likes(0) Reply(0)
  • Paltu Sen
    but c should be the answer
    Likes(0) Reply(0)
  • Paltu Sen Best Answer

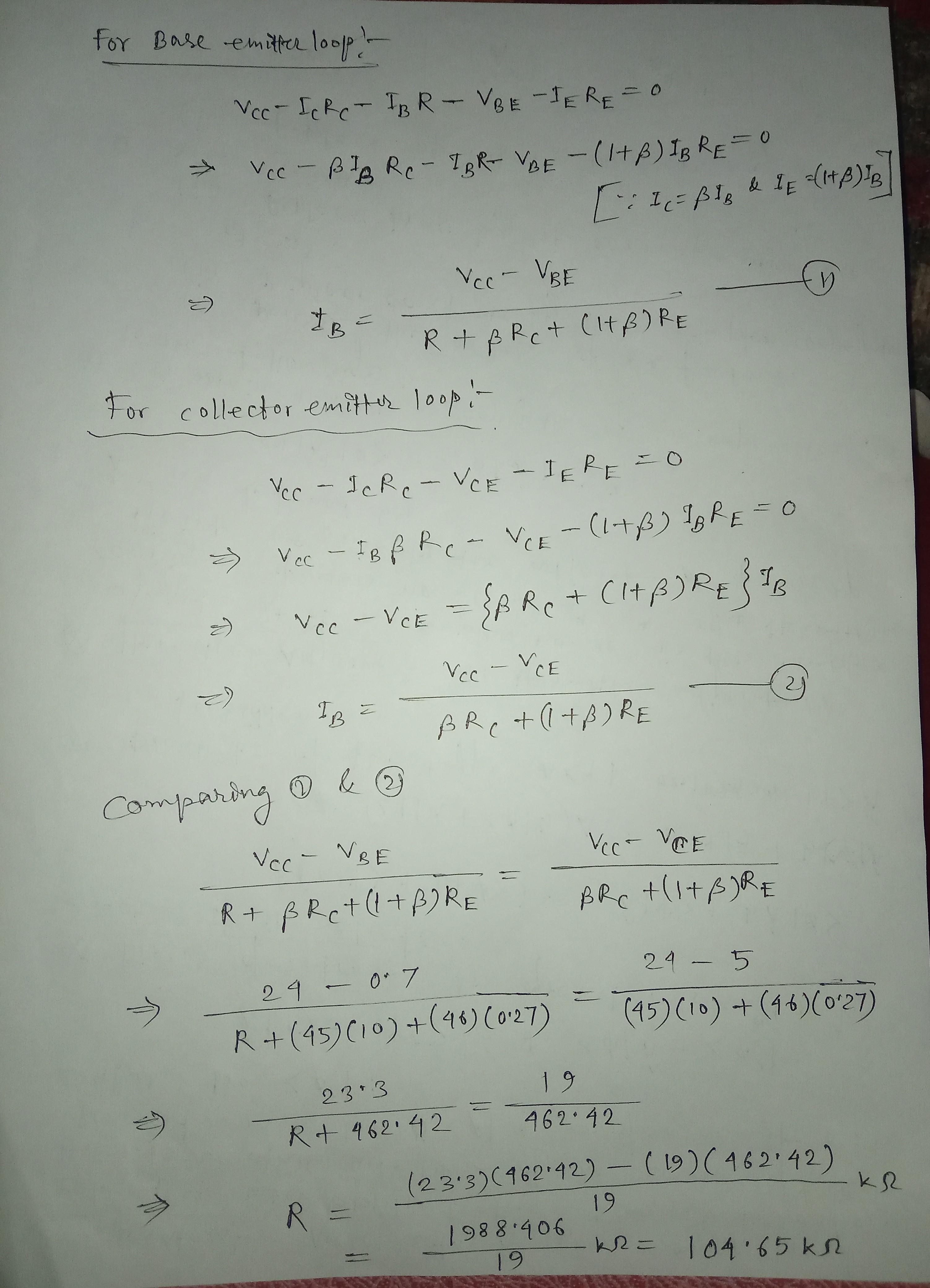

    ok। am sending the exact answer. you are right
    • upload_1576493026914.jpg
    Likes(0) Reply(0)
  • Paltu Sen

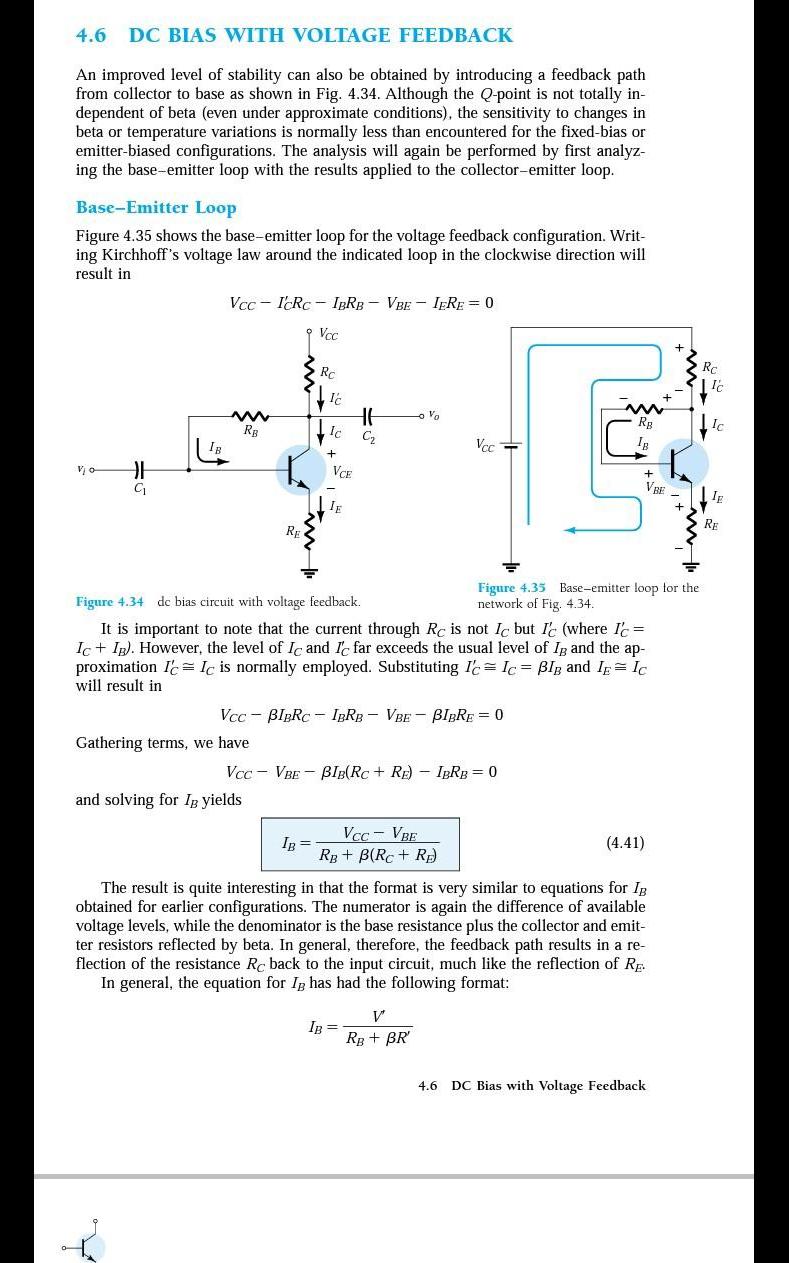

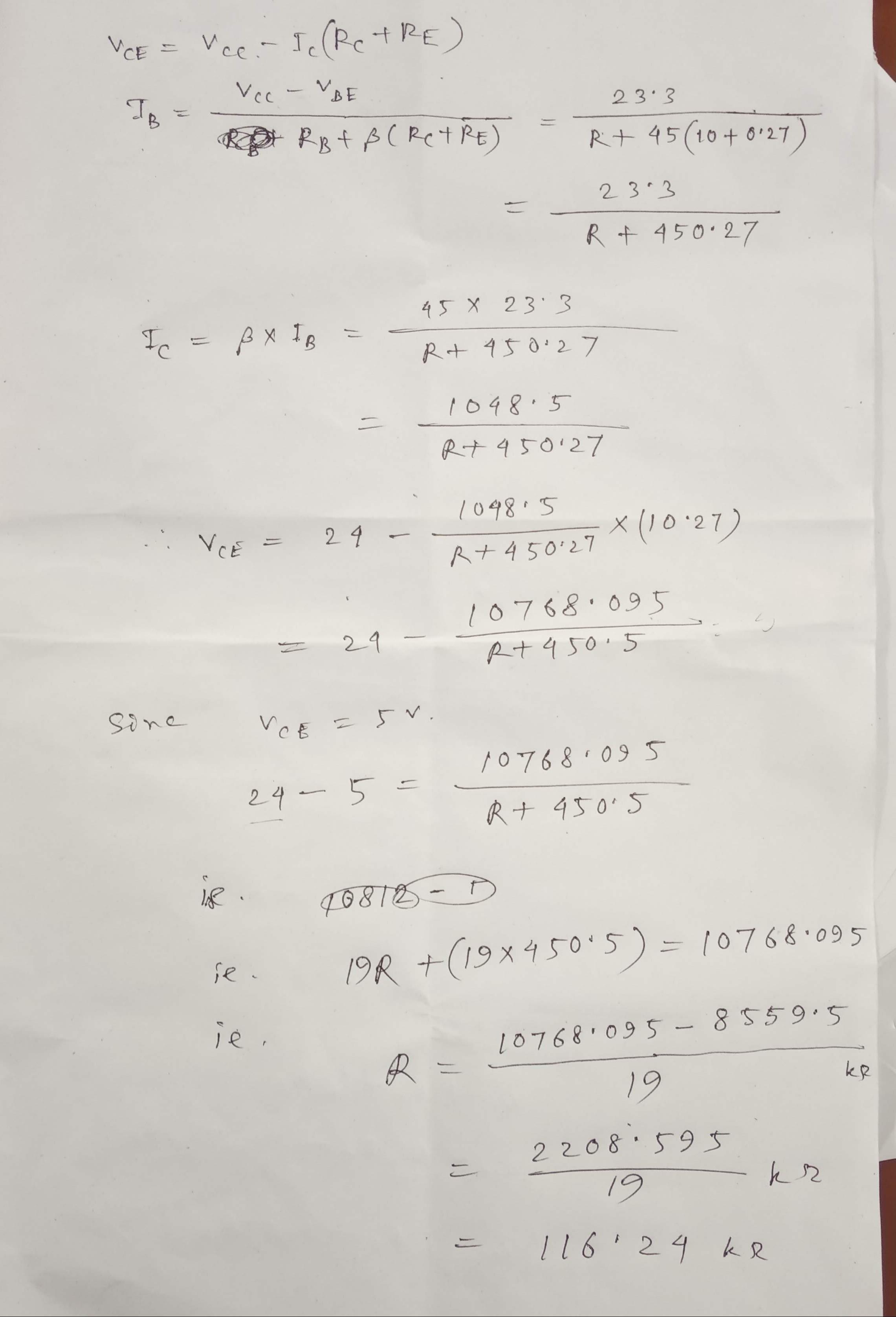

    ans:-D.115.2kohm.. The answer is not exact due to the approximations used in the theory....
    • upload_1576480457337.jpg
    • upload_1576480476500.jpg
    • upload_1576480491653.jpg
    Likes(0) Reply(1)
    Tejas
    Sir, the answer you got here is 116, so the option should be D. But in the book they got answer as 107 which is option B. which is the correct one?
