Anuj Chowdhury posted an Question
June 06, 2021 • 23:22 pm 30 points
  • IIT JAM
  • Physics (PH)

Value of output voltage( v0) ?

1 Answer(s) Answer Now
  • 1 Likes
  • 2 Comments
  • 0 Shares
  • Priyanka kumari

    plz take care of Vb=Va only for negative feedback amplifier

  • Priyanka kumari best-answer

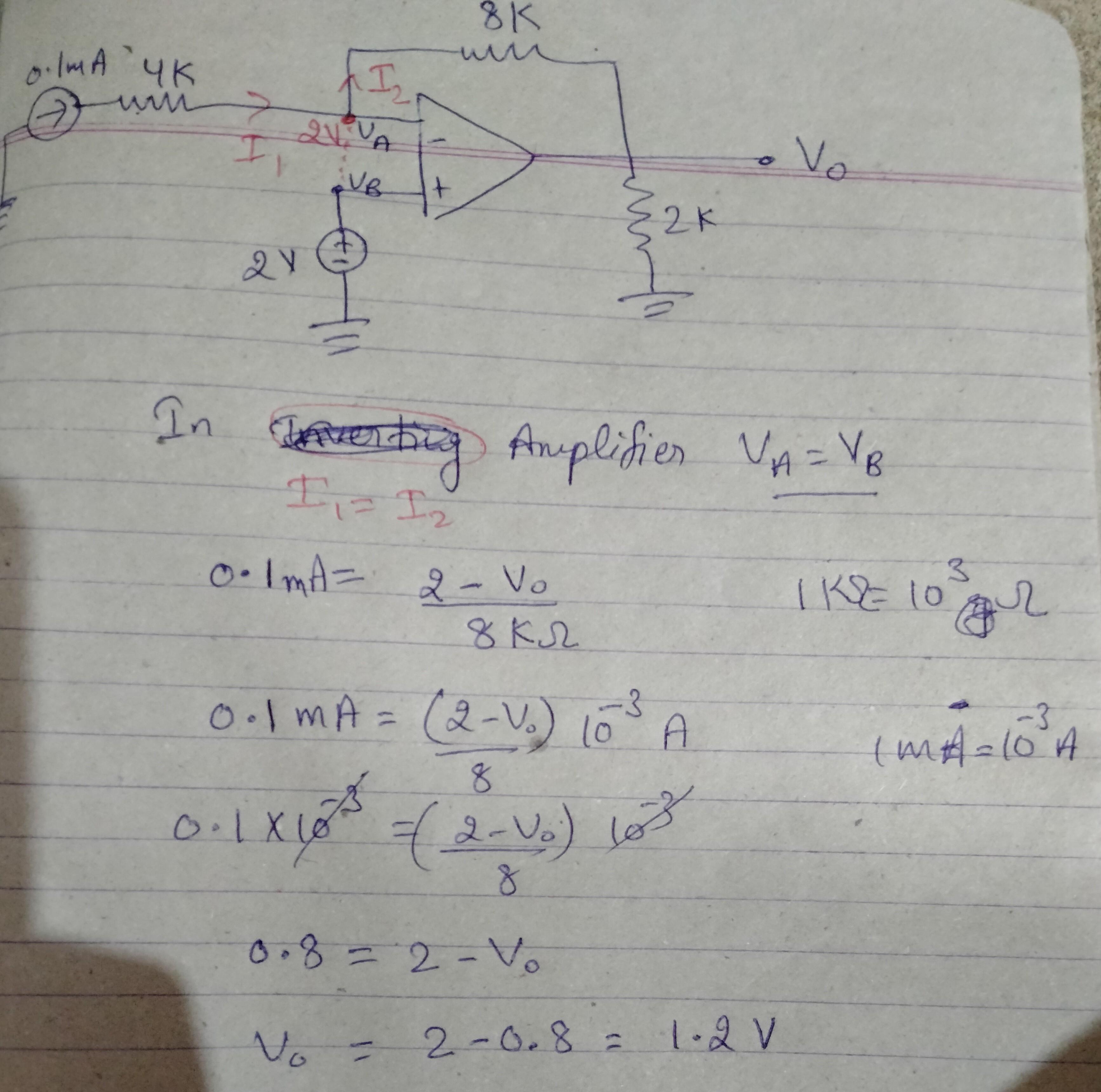

    kindly see the attached file for solution...

    eduncle-logo-app

    thnk u bt the ans givn in book is -30V. i don't know how it came bt I was cnfsd with the soln thts why i postd it

    eduncle-logo-app

    according to me.....this solution is wrong because here Va=-2. which is not possible . Va=2
